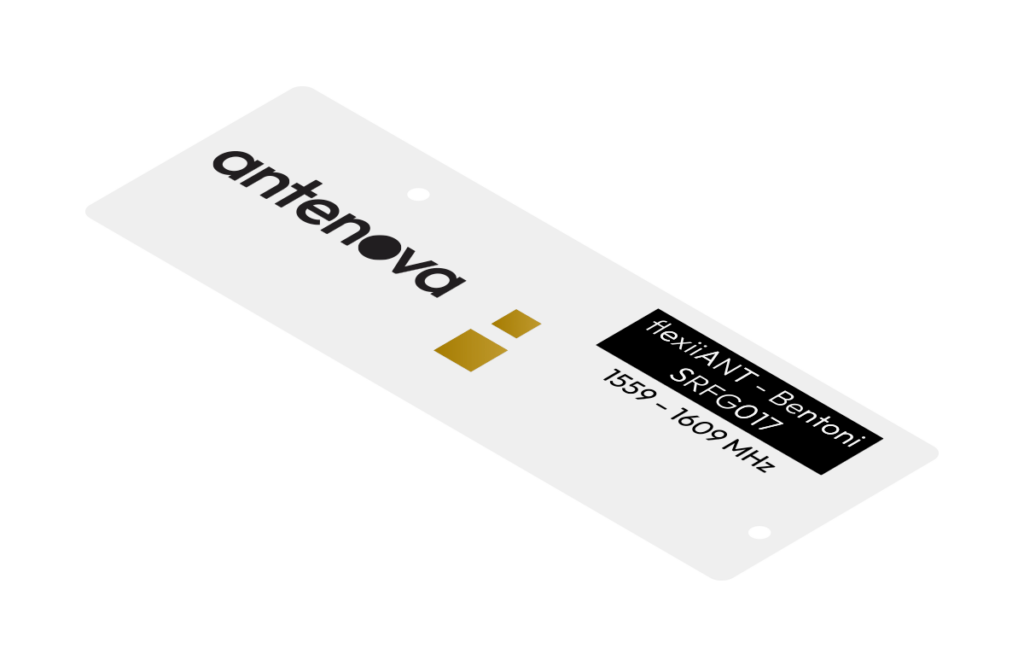

SRFG017 Bentoni GNSS/GPS/GLONASS/Beidou/Galileo Flexible Antenna

Flexible GNSS antenna designed for integration into compact devices requiring global positioning capabilities. Supports GPS, GLONASS, Beidou, and Galileo systems for reliable multi-constellation coverage. The antenna features a slim, lightweight design and is supplied with a cable for direct PCB connection, making it ideal for space-constrained applications. Installation is quick and secure using the integrated self-adhesive backing, allowing for easy mounting onto a clean, smooth surface. Available in standard 50mm and 100mm cable lengths, with other lengths available upon request (minimum order quantities may apply).

Applications

Trackers, Portable devices, Drones, Network devices, Wearable devices

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 1559–1609 MHz
Efficiency (%): 75%
Peak Gain (dBi): 4.0 dBi
Average Gain (dBi): -1.2 dBi
VSWR: 1.45:1 max
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Location: External
Satellite Navigation: GNSS
Type: Single
