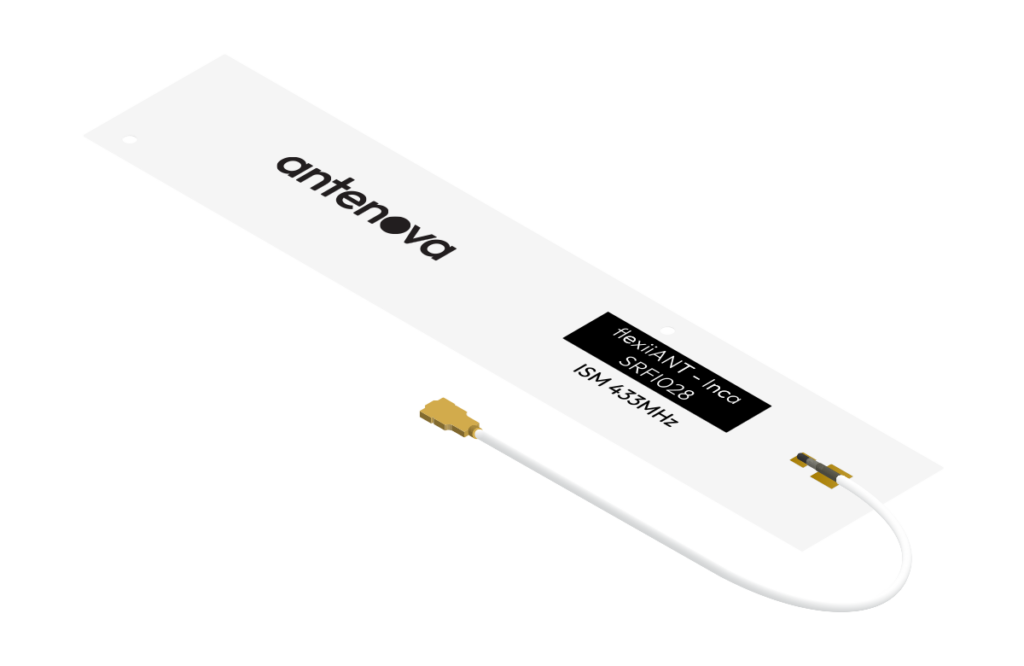

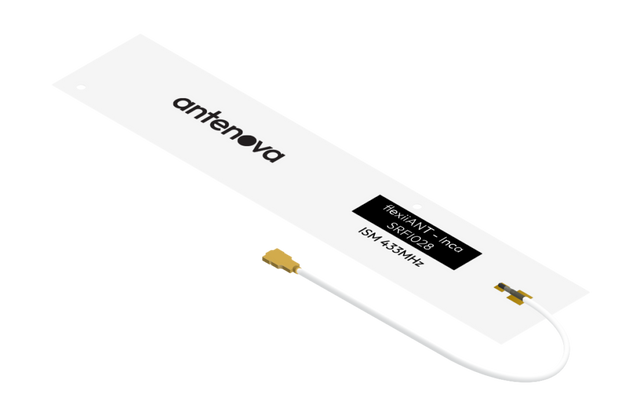

SRFI028 Inca 432–434MHz ISM Flexible Antenna

This flexible antenna is designed for the 432–434 MHz ISM band, offering reliable performance for a wide range of wireless applications. Its slim, foldable design allows for easy integration into compact devices, and it can be mounted flat or folded to suit your enclosure. The antenna is supplied with a cable and I-PEX MHF connector for straightforward plug-and-play installation. Self-adhesive backing ensures quick and secure mounting to a clean, smooth surface. Available in standard 100mm and 200mm cable lengths, with other lengths available upon request (minimum order quantities apply).

Applications

Remote monitoring, Robot control, 433 MHz ISM band systems, Smart meters, Home automation, Medical devices

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 432–434 MHz
Efficiency (%): 45%
Peak Gain (dBi): 2.8 dBi
Average Gain (dBi): -2.7 dBi
VSWR: 1.6:1 max
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Location: External
Type: Single
