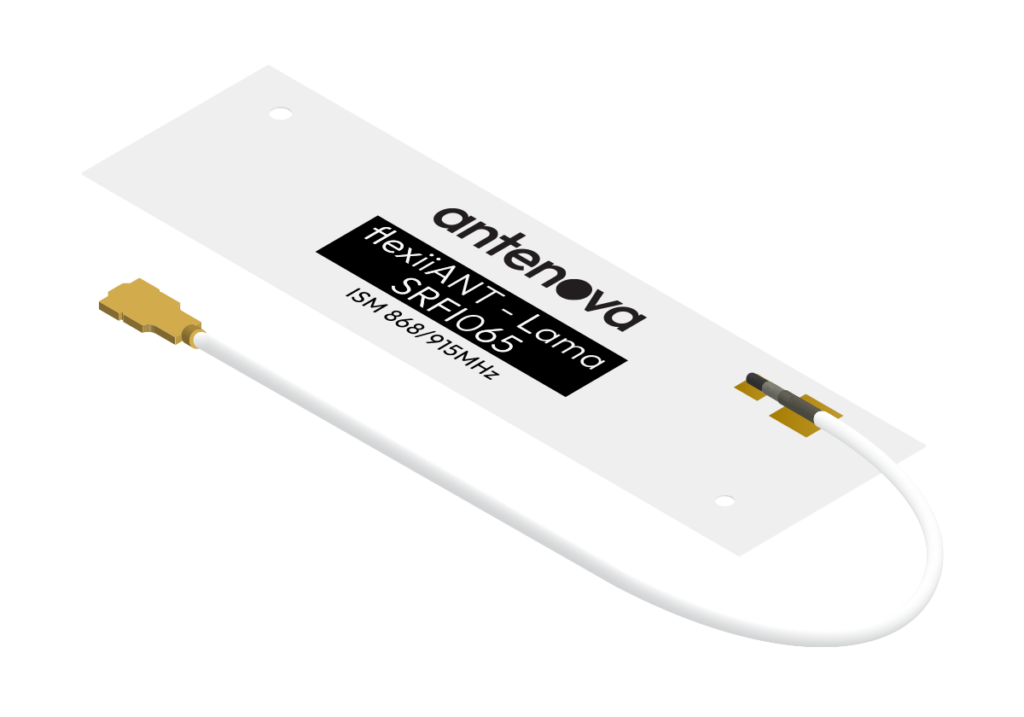

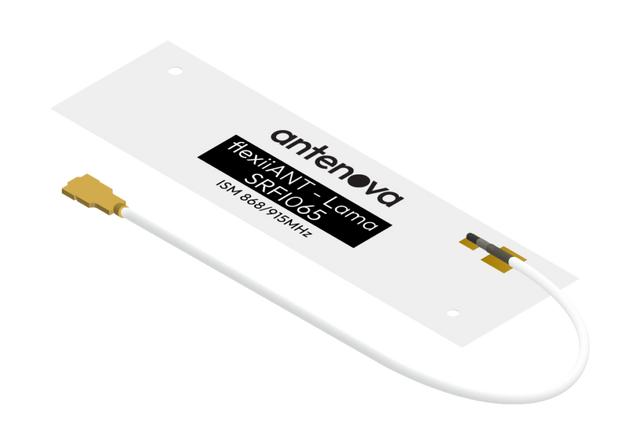

SRFI065 Lama ISM Flexible PCB Antenna with Cable

This flexible PCB antenna is designed for easy integration into wireless devices operating in the ISM bands. Featuring a slim, low-profile design and a 100mm cable, it enables straightforward connection to the host PCB. The self-adhesive mounting allows for quick and secure installation within your device, making it ideal for compact applications where space is at a premium.

• Flexible PCB construction for versatile placement
• Covers both 863–870MHz and 902–928MHz ISM bands
• Supplied with 100mm cable and I-PEX MHF connector for easy integration
• Self-adhesive backing for simple mounting inside enclosures

Applications

LoRa® wireless nodes, LoRa® Gateway/Routers, Smart meters, Home automation, Monitoring equipment, Smart Grids, Remote sensors

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 863-870 MHz / 902-928 MHz
Efficiency (%): 52% / 52%
Peak Gain (dBi): 0.82 / 1.33
Average Gain (dBi): -2.84 / -2.78
VSWR: 1.5:1 max
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: PCB
Location: Internal
Type: Single
