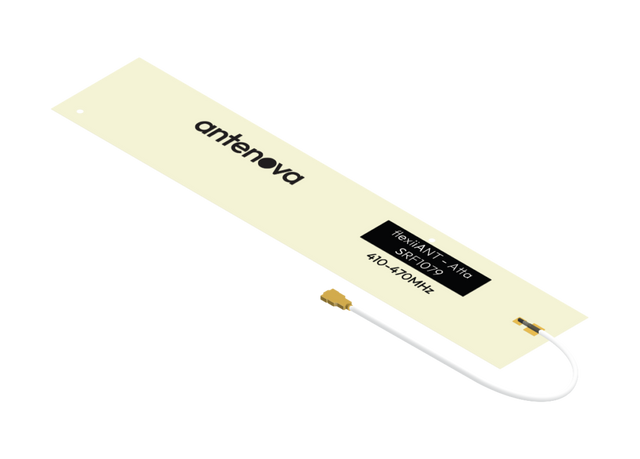

SRFI079 Atta 410-470MHz Flexible FPC Cellular Antenna with Cable

This flexible FPC antenna is designed for LTE 410MHz and LTE 450MHz bands, providing reliable performance for data collection applications such as smart metering. Its self-adhesive mounting allows for quick and easy integration into your device, without the need to use the host PCB ground. The antenna comes with a 150mm cable and an I-PEX MHF1 connector for direct connection to the host PCB, making it ideal for compact designs and rapid development cycles.

• Self-adhesive mounting for simple installation
• Flexible FPC construction for versatile placement
• Direct connection via I-PEX MHF1 coax connector

Applications

LTE 410MHz and LTE 450MHz bands used for data collection such as smart metering, Band 88 LTE410, Uplink:412 – 417MHz, Downlink: 422 – 427 MHz, Band 72 LTE450, Uplink:451 – 456MHz , Downlink: 461 – 466 MHz, 433MHz ISM band

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 410-432MHz / 432-434MHz / 434-470MHz
Efficiency (%): 60% / 55% / 45%
Peak Gain (dBi): 2.8 / 1.7 / 1.1
Average Gain (dBi): -1.7 / -2.3 / -3.2
VSWR: 2.2:1 / 2.2:1 / 3.0:1
Impedance (Ohm): 50
Polarisation: Linear
Dimensions: 101.0 x 20.0 x 0.15 mm
Weight: <0.5g
Connector: I-PEX MHF1 (20278-112R-13)
Mounting: Adhesive Mount
Antenna Technologies: FPC
Cellular Technologies: 4G/LTE
Location: External
Type: Single
