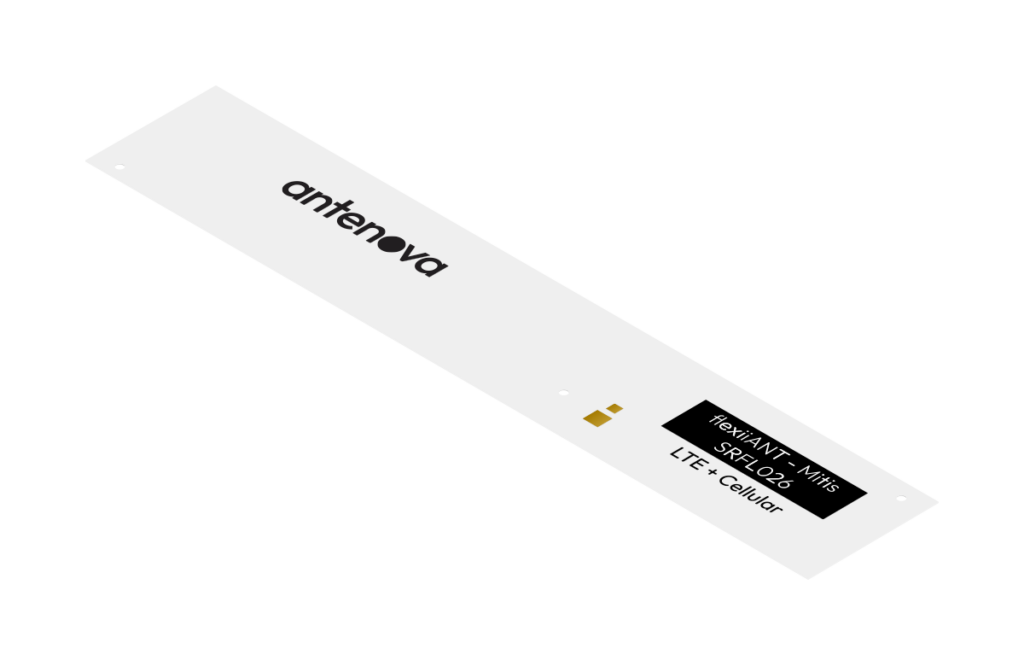

SRFL026 Mitis 4G/LTE Cellular Flexible FPC Antenna I-PEX MHF1

This flexible antenna is designed to cover all 4G/LTE bands, including LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7, and LTE B40. Its slim, low-profile FPC construction allows for easy integration into compact devices, making it ideal for applications where space is limited. The antenna features a self-adhesive mounting system for quick and secure installation on a variety of surfaces. It comes with a 1.13mm diameter RF cable and I-PEX MHF1 connector, and is available in standard cable lengths of 100mm and 200mm, with custom lengths available upon request (minimum order quantities may apply).

Applications

Smart meters, Network devices, Femto / Pico base stations, Telematics, Remote monitoring, Machine to Machine, POS (Point of Sale) terminals

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 698–798, 824–960, 1710–2170, 2300–2400, 2500–2690 MHz
Standards: 4G/LTE, GSM, WCDMA
VSWR: 3.20:1 (698–798 MHz), 1.95:1 (824–960 MHz), 1.90:1 (1710–2170 MHz), 2.10:1 (2300–2400 MHz), 3.10:1 (2500–2690 MHz)
Efficiency (%): 55% / 65% / 65% / 55% / 70%
Peak Gain (dBi): 2.5 (698–798 MHz), 2.3 (824–960 MHz), 3.5 (1710–2170 MHz), 4.0 (2300–2400 MHz), 4.5 (2500–2690 MHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Type: Single
