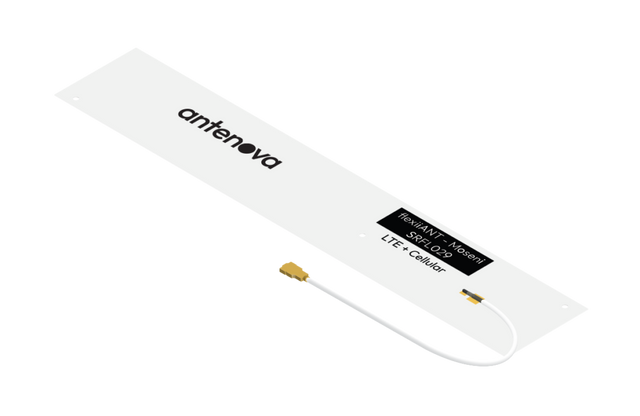

SRFL029 Moseni 4G LTE Flexible Antenna

This flexible antenna is designed for 4G LTE applications, supporting a wide range of cellular bands including LTE 700, GSM 850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7, and LTE B40. Its slim, flexible form factor allows for easy integration into compact devices and enclosures. The antenna is available with 100mm or 150mm cable lengths, with other lengths available upon request. Installation is quick and simple using the self-adhesive backing, making it ideal for streamlined assembly in smart meters, network devices, telematics, and IoT products.

• Mounting: Self-adhesive for secure placement on plastic or other non-metallic surfaces
• Integration: Plug-and-play with I-PEX MHF connector for fast device assembly

Applications

Smart meters, Network devices, Femto / Pico base stations, Telematics, Remote monitoring, Machine to Machine, POS (Point of Sale) terminals

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 698–798, 824–960, 1710–2170, 2300–2400, 2500–2690 MHz
Standards: 4G/LTE, GSM, WCDMA
VSWR: 3.50:1 max (698–798 MHz), 2.40:1 max (824–960 MHz), 3.30:1 max (1710–2170 MHz), 1.40:1 max (2300–2400 MHz), 1.70:1 max (2500–2690 MHz)
Efficiency (%): >60% (698–2170 MHz), >80% (2300–2690 MHz)
Peak Gain (dBi): 3.5 (698–960 MHz), 3.8 (1710–2170 MHz), 4.5 (2300–2400 MHz), 4.6 (2500–2690 MHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Cellular Technologies: 4G/LTE
Location: External
Type: Single
