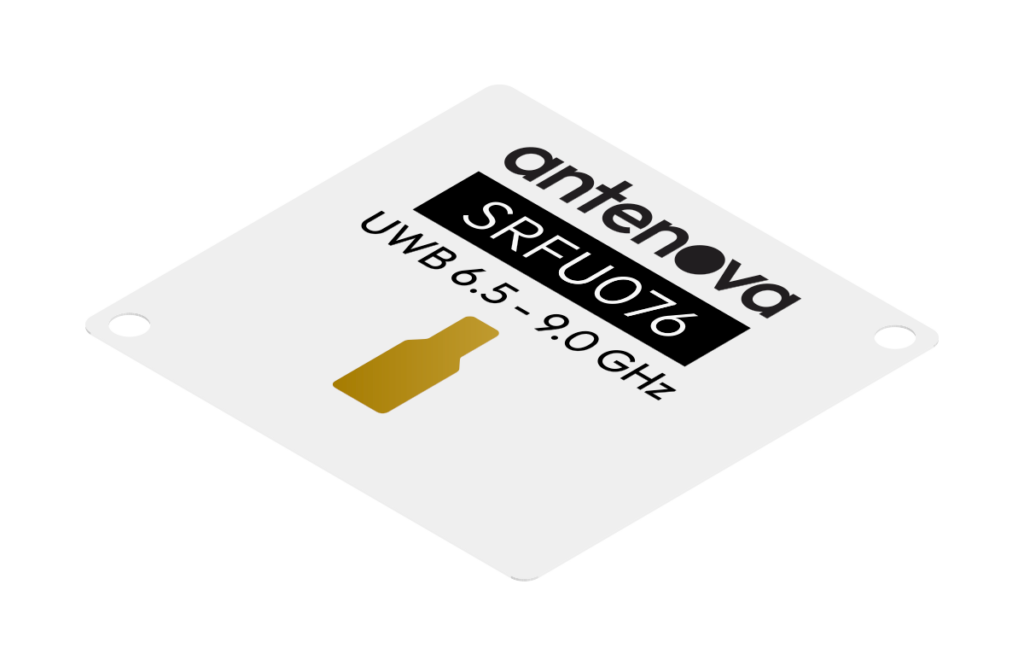

SRFU076 Vorax 6.5-9GHz UWB Flexible PCB Antenna uFL

Ultra Wide Band antenna designed for the 6.5-9GHz frequency range, ideal for high-precision indoor positioning, secure keyfobs, and high-speed data transfer. The flexible PCB construction allows easy integration inside product enclosures and is supplied with a self-adhesive strip for straightforward mounting. The antenna connects via a uFL (IPEX MHF1) connector, making it suitable for compact designs where space is at a premium.

• Mounting: Self-adhesive strip for internal installation
• Connector: uFL (IPEX MHF1)

Applications

Keyfobs for improved security for car-door unlocking, Indoor positioning in warehouses, hospitals, and many other applications, UWB headphones with uncompressed HiFi audio, High speed data transfer

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 6500-9000 MHz
Efficiency (%): 75%
Peak Gain (dBi): 5.3 dBi
Average Gain (dB): -1.2 dB
VSWR: 1.5:1
Impedance (Ohm): 50 Ω
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Location: Internal
Type: Single
