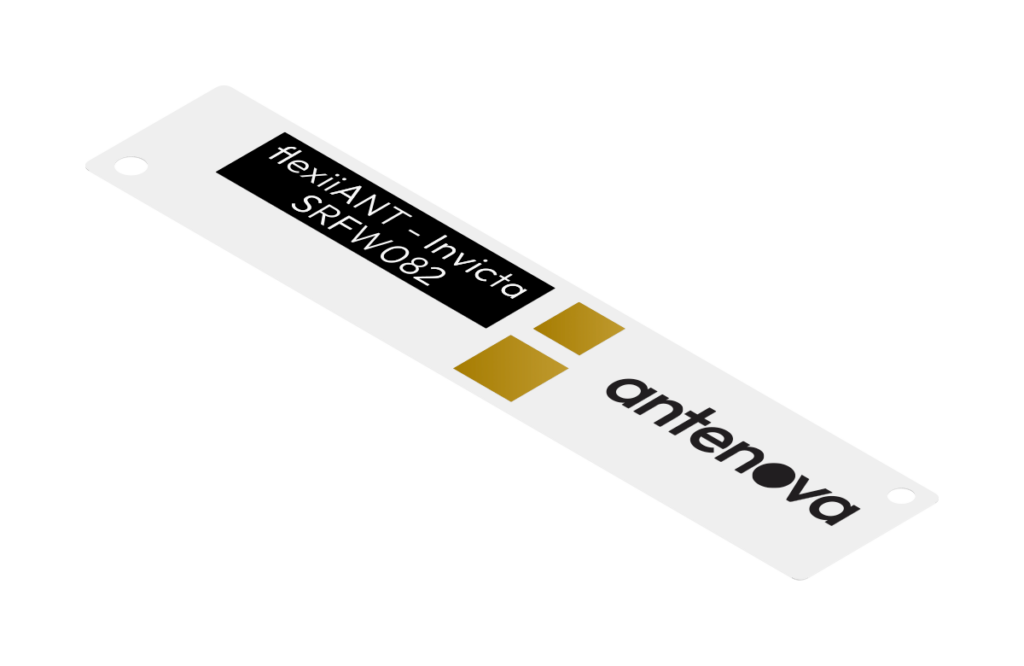

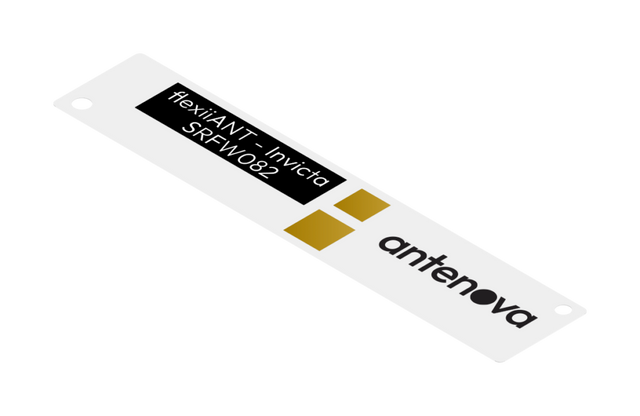

SRFW082 Invicta 2.4GHz Wi-Fi/Bluetooth/Zigbee Flexible PCB Antenna with Cable

Designed for long-range wireless connectivity, this flexible PCB antenna is ideal for Wi-Fi, Bluetooth, and Zigbee applications. Its slim profile and self-adhesive backing allow for easy integration into compact devices, while the included cable and I-PEX connector enable quick, plug-and-play installation onto the host PCB. The antenna delivers high efficiency across the 2.4–2.5 GHz band, making it suitable for a wide range of wireless products. Simply adhere the antenna to your device enclosure and connect the cable to your PCB for rapid deployment.

Applications

WiFi Access Points, Portable Bluetooth Devices, Zigbee Wireless Data Networks, Drone Controllers at 2.45GHz, Home automation & smart appliances, Utility meters and Smart meters, Wireless sensor networks, Smoke and intruder alarms, Wearable devices, Building automation, Industrial controls

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 2400-2500 MHz
Standards: Wi-Fi, Bluetooth, Zigbee
VSWR: 1.4:1 max
Efficiency (%): 70%
Peak Gain (dBi): 2.8 dBi
Average Gain (dB): -1.5 dB
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Location: External
Short-Range Wireless Standards: Wi-Fi, Bluetooth, Zigbee
Type: Single
