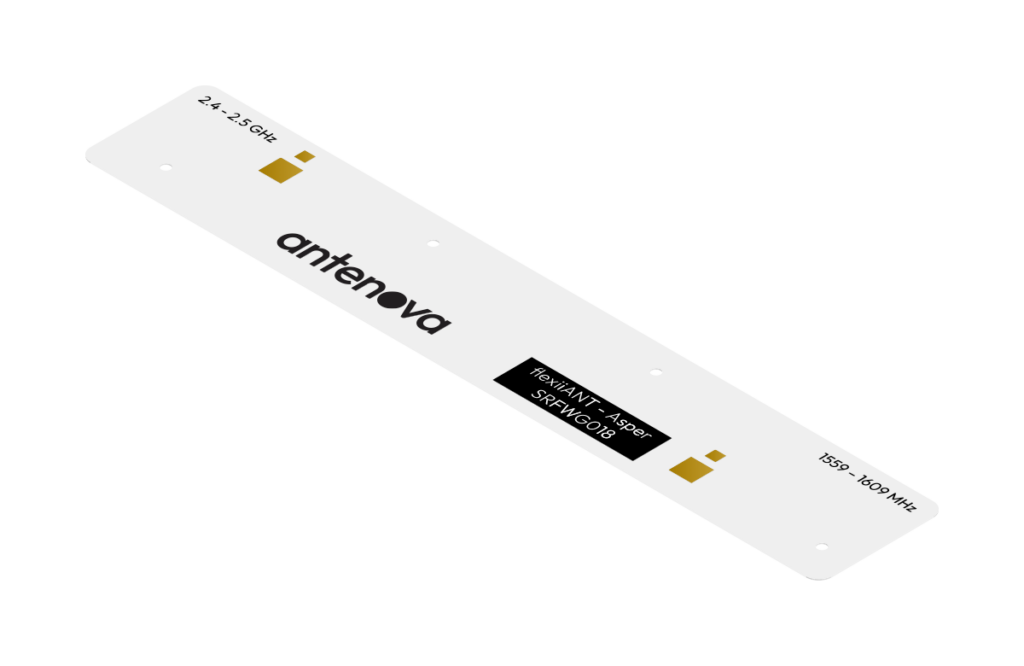

SRFWG018 Asper 2.4GHz/GNSS Flexible Antenna

This dual-band flexible antenna is designed for positioning applications that require both GNSS and 2.4GHz wireless connectivity, such as Wi-Fi and Bluetooth. Its slim, flexible form factor allows for easy integration into compact devices, while the self-adhesive mounting ensures quick and secure installation. The antenna is supplied with a 100mm or 200mm cable as standard, with other lengths available upon request (minimum order quantities may apply). The plug-and-play design with I-PEX MHF connector streamlines the integration process for a wide range of wireless products.

Applications

Sport cameras, Trackers, Dash cams, Portable Devices, Network Devices, Wearable devices, MIMO Systems

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 1559–1609 MHz and 2.4–2.5 GHz
Standards: GNSS, Wi-Fi, Bluetooth
VSWR: 1.3:1 (GNSS), 1.4:1 (2.4GHz)
Efficiency (%): 75% (GNSS), 85% (2.4GHz)
Peak Gain (dBi): 4.25 (GNSS), 5.6 (2.4GHz)
Average Gain (dBi): -1.1 (GNSS), -0.6 (2.4GHz)
Impedance (Ohm): 50
Polarisation: Linear
Dimensions: 81.0 x 14.0 x 0.15 mm
Weight: < 0.5 g
Mounting: Adhesive Mount
Antenna Technologies: FPC
Location: External
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Combination
