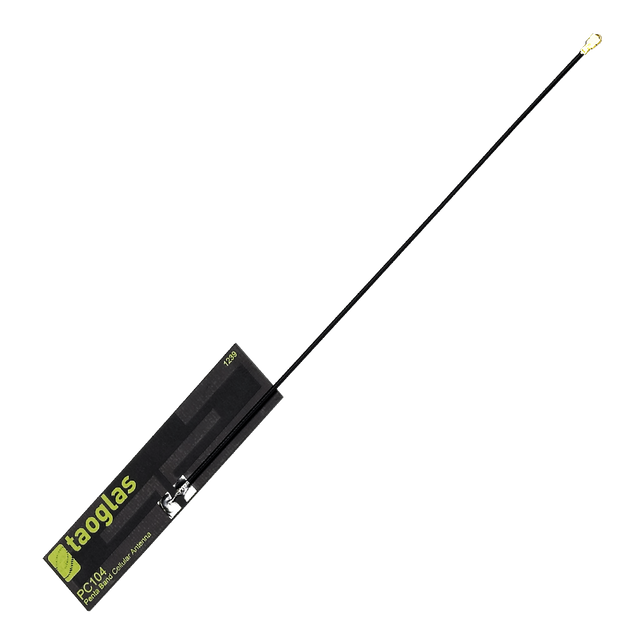

PC104.07.0165C 4G/LTE Antenna adhesive I-PEX MHF I (U.FL) 16cm

This slim-line, high-efficiency antenna is designed for easy internal installation within your device. Its compact, low-profile form factor and omni-directional gain across all supported bands ensure reliable reception and transmission. The unique dipole design delivers strong performance in a small footprint, making it ideal for applications where space is limited and high performance is required. The antenna features 3M adhesive backing for simple mounting on 2mm thick plastic surfaces (not suitable for metal). Cable lengths and connectors can be customized to suit your requirements. For installations requiring cable lengths shorter than 100mm, consider the FXP.14 product.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 16cm
• Cable Type: 1.37 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount
Type: Single

Connection 1 - 4G/LTE

Frequency: 824MHz - 2170MHz
Impedance (Ohm): 50
VSWR: 1.76
Gain (Max): 2.13 dBi
Polarization: Linear
