Description

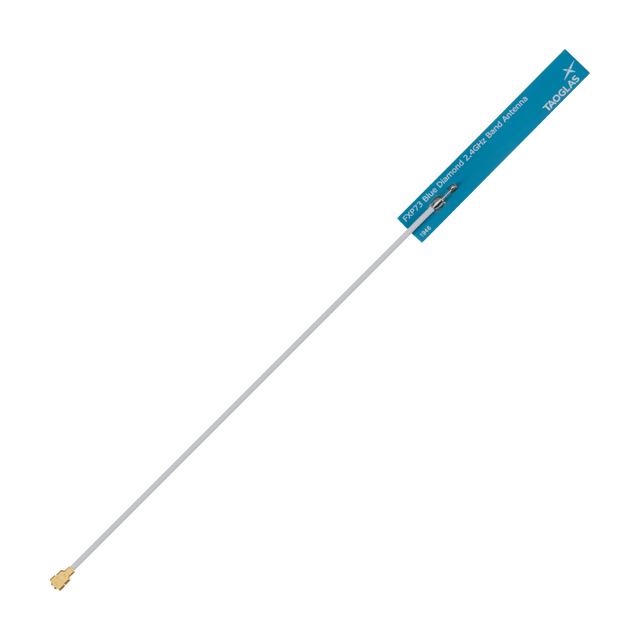

The FXP73 Blue Diamond is a flexible PCB antenna designed for 2.4GHz applications, including Wi-Fi, ZigBee, Bluetooth, and ISM band devices. Its slim, rectangular form factor allows for easy integration into compact devices, making it ideal for embedded wireless solutions. The antenna delivers reliable performance with a peak gain of up to 2.5dBi and high efficiency, ensuring strong connectivity in a variety of environments. Its adhesive mounting enables straightforward installation on flat surfaces, while the flexible cable and compact design support versatile placement within enclosures.
Connector & Cable
- Connector Type: U.FL (I-PEX MHF I)
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Connection 1 - Wi-Fi/ISM
Frequency: 2400-2500 MHz
Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Impedance: 50 Ohms
Peak Gain: 2.5 dBi
Efficiency: 60%
VSWR: ≤ 2:1
Polarization: Linear
Max Input Power: 5W

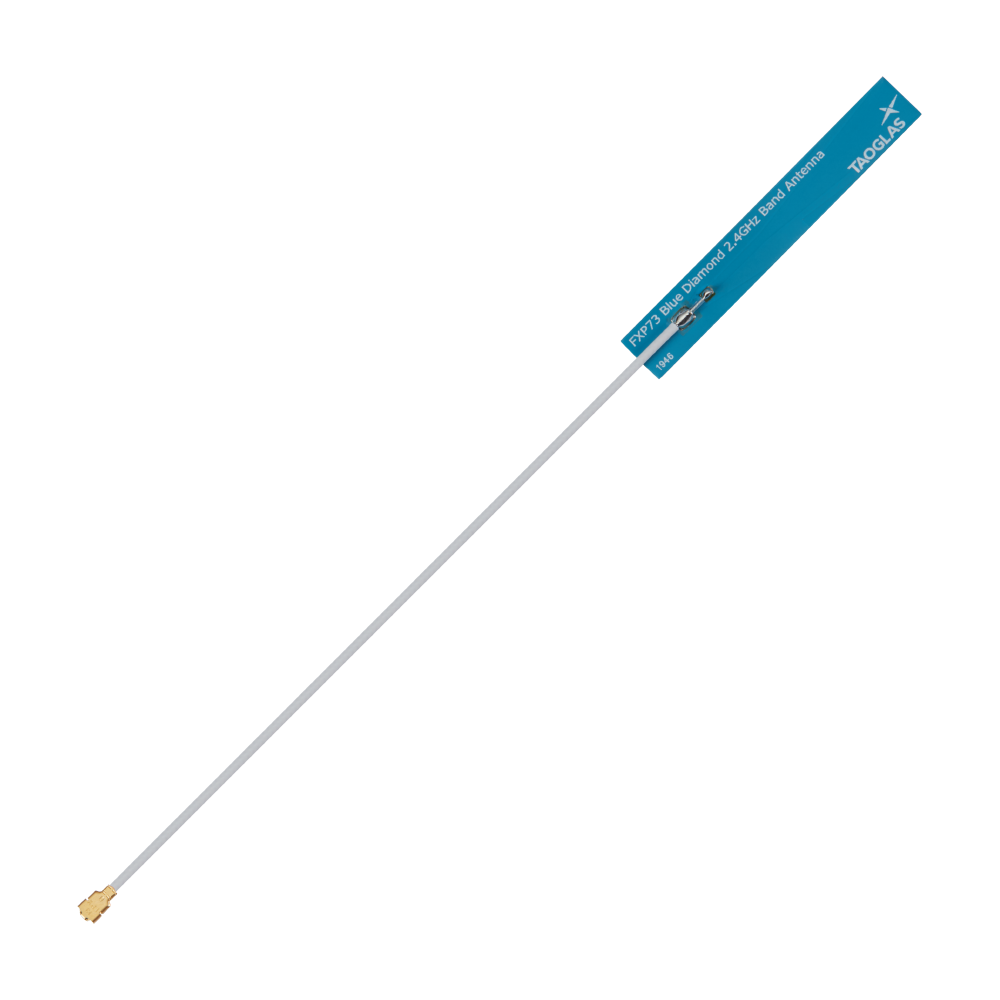

FXP73.07.0100A Wi-Fi, ISM flex PCB Antenna Blue Diamond U.FL 10cm
