2J  |  SKU: 2J5410HP

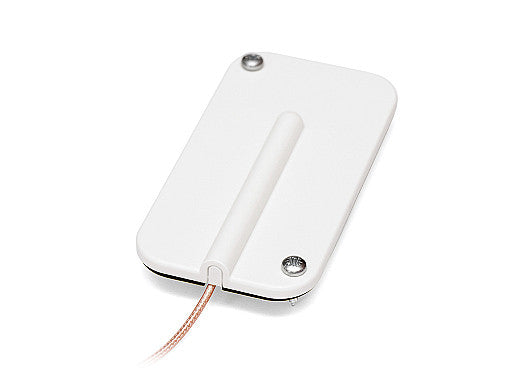

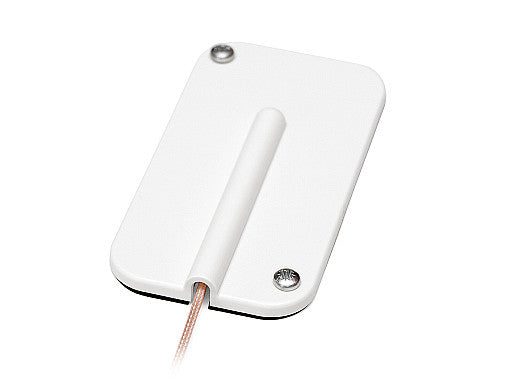

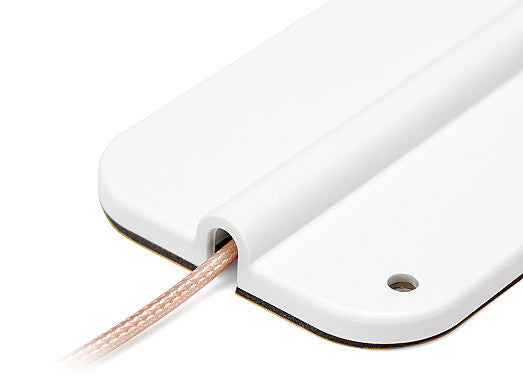

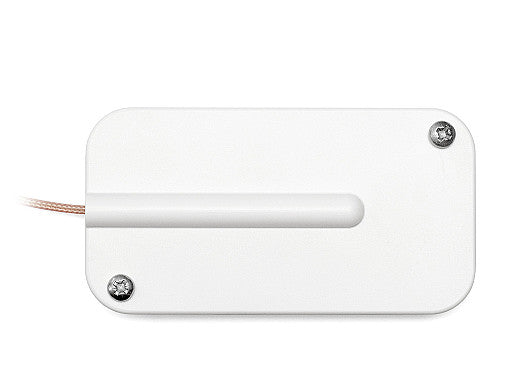

2J5410HP TETRA, LPWA, UHF Antenna adhesive/wall mount customizable

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1533

Description

This high-gain antenna is designed for reliable TETRA, LPWA, and UHF communications, making it ideal for mission-critical applications such as public safety, defense, asset tracking, and first responder fleets. Its ground plane independent design ensures consistent performance, while the low-profile form factor allows for discreet installation. The antenna is customizable to meet specific cable and connector requirements, providing flexibility for a wide range of deployment scenarios.

Connections

380-470MHz/LPWA/TETRA/UHF


Technical Specifications

Operating Temperature: -40 °C to +85 °C

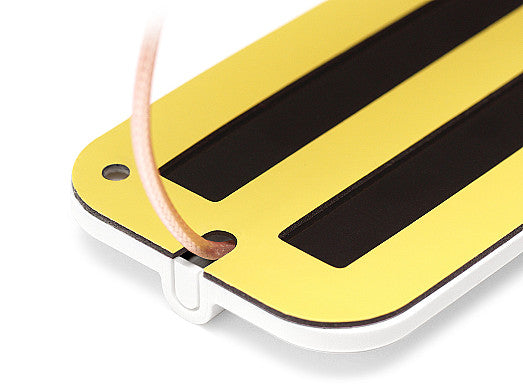

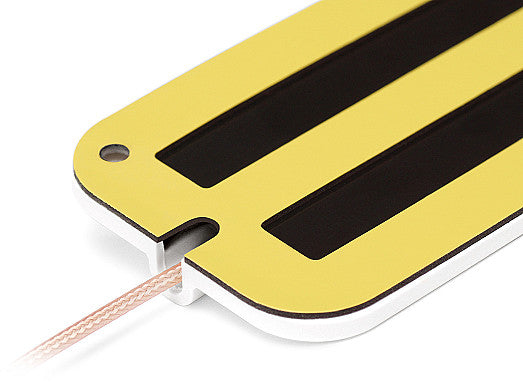

Mounting: Adhesive Mount, Wall Mount, Wall/Adhesive Mount
Location: External
Type: Single

Connection 1 - TETRA

Standards: TETRA
Frequency: 380-470 MHz
VSWR: ~2:1
Efficiency (%): ~45
Peak Gain (dBi): ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5410HP", "title": "380-470 MHz TETRA High Gain Wall/Adhesive Mount Antenna", "mountingType": "Wall/Adhesive Mount", "ipRating": null, "dimensions_mm": "60 x 112.5 x 11.3", "elements": [ { "elementID": "TETRA", "type": "Cellular", "technologies": [ "TETRA", "LPWA", "UHF" ], "frequencies": [ { "range_mhz": "380-470", "returnLoss_db": "~-11.5", "vswr": "~2:1", "efficiency_percent": "~45", "peakGain_dbi": "~2.8", "averageGain_db": "~-3.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "TETRA", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
