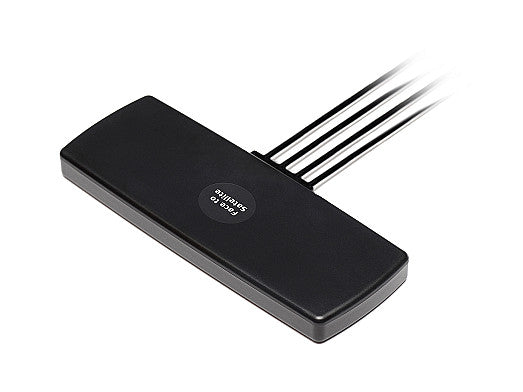

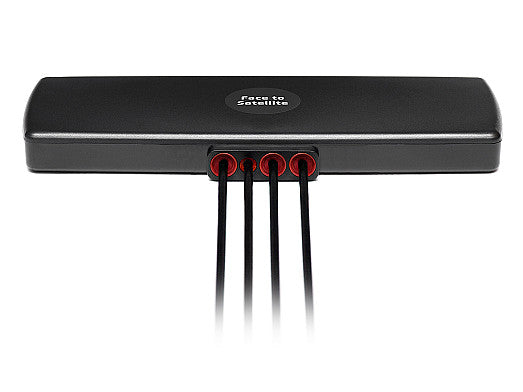

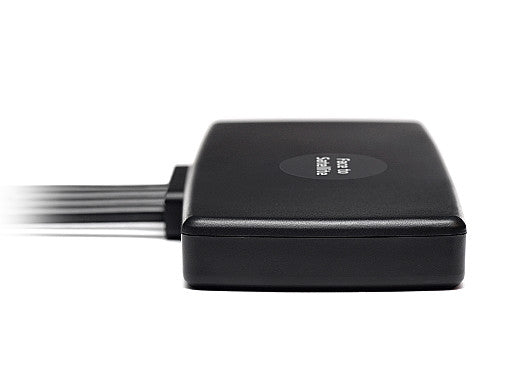

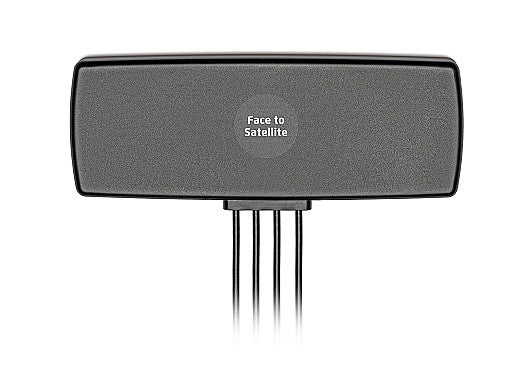

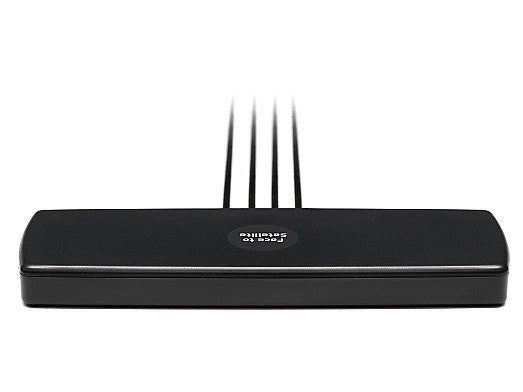

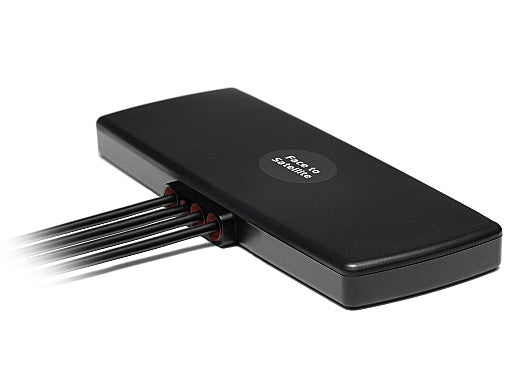

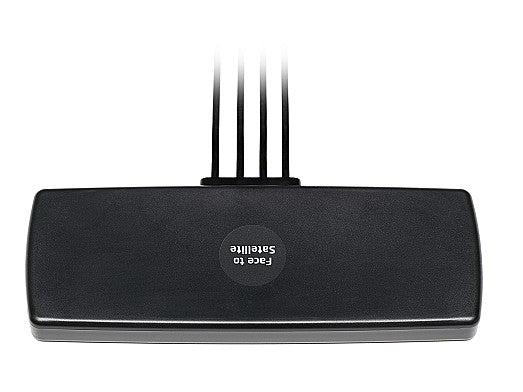

This compact 4-in-1 combination antenna is designed for high-performance connectivity across 4G/LTE, GNSS, and Iridium networks. Its low-profile, ground plane independent design makes it ideal for applications where space is limited but robust, multi-network coverage is required. The antenna is suitable for use in mobile networks, IoT, fleet management, smart cities, and mission-critical communications, providing reliable operation in demanding environments. Certified for IP67 and IP69K protection, it ensures durability and resistance to harsh conditions.
Connections
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
Connection 1 - 4G LTE MIMO
Standards: 2G, 3G, 4G
Frequency (MHz): 698-960, 1710-2170, 2500-2700
VSWR: ~2.1:1, ~1.6:1, ~2.7:1
Efficiency (%): ~46.3, ~49.4, ~29.9
Peak Gain (dBi): ~-0.5, ~1.4, ~-0.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 4G LTE MIMO
Standards: 2G, 3G, 4G
Frequency (MHz): 698-960, 1710-2170, 2500-2700
VSWR: ~2.3:1, ~1.5:1, ~2.1:1
Efficiency (%): ~43.4, ~49.2, ~32.8
Peak Gain (dBi): ~0.1, ~2.0, ~-0.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 3 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
Connection 4 - Iridium
Standards: IRIDIUM
Frequency (MHz): 1616-1627
Peak Gain (dBic): ~4.5
Efficiency (%): ~76
Radiation Pattern: Hemispherical
Polarisation: RHCP
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J4A56PGFa",
"title": "Condor 4G LTE MIMO GPS/GLONASS/Galileo IRIDIUM Antenna",
"mountingType": "Adhesive Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "61.8 x 155.6 x 17.0",
"elements": [
{
"elementID": "Cellular 1 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-9.6",
"vswr": "~2.1:1",
"efficiency_percent": "~46.3",
"peakGain_dbi": "~-0.5",
"averageGain_db": "~-3.4"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-15.3",
"vswr": "~1.6:1",
"efficiency_percent": "~49.4",
"peakGain_dbi": "~1.4",
"averageGain_db": "~-3.1"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-7.3",
"vswr": "~2.7:1",
"efficiency_percent": "~29.9",
"peakGain_dbi": "~-0.9",
"averageGain_db": "~-5.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 2 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-8.8",
"vswr": "~2.3:1",
"efficiency_percent": "~43.4",
"peakGain_dbi": "~0.1",
"averageGain_db": "~-3.6"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-15.0",
"vswr": "~1.5:1",
"efficiency_percent": "~49.2",
"peakGain_dbi": "~2.0",
"averageGain_db": "~-3.1"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-9.8",
"vswr": "~2.1:1",
"efficiency_percent": "~32.8",
"peakGain_dbi": "~-0.6",
"averageGain_db": "~-4.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"BeiDou",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "≤-15.0",
"vswr": "≤1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "28",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "≤-15.0",
"vswr": "≤1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
},
{
"elementID": "Iridium",
"type": "Iridium",
"technologies": [
"Iridium"
],
"frequencies": [
{
"range_mhz": "1616-1627",
"returnLoss_db": "~-18.8",
"vswr": "~1.2:1",
"efficiency_percent": "~76",
"peakGain_dbi": "~4.5",
"averageGain_db": "~-1.1"
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular 1",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Cellular 2",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Iridium",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
