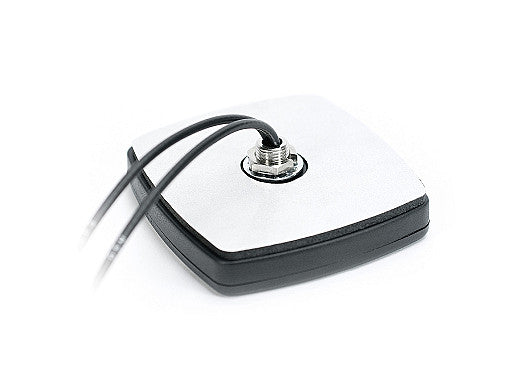

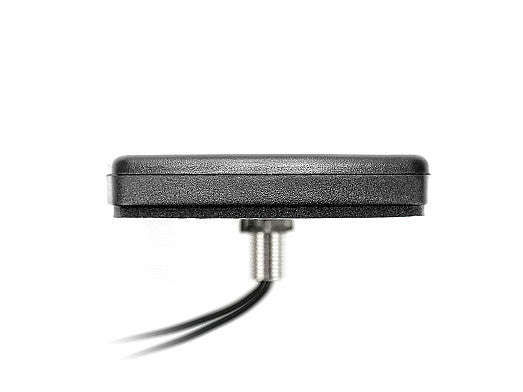

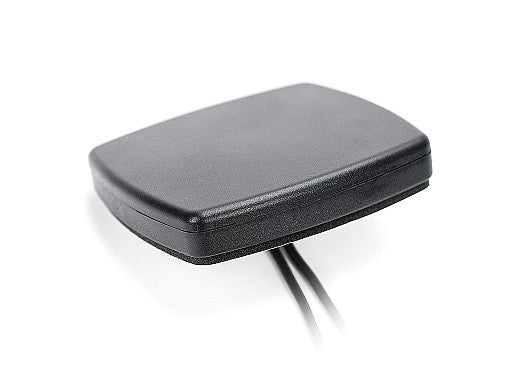

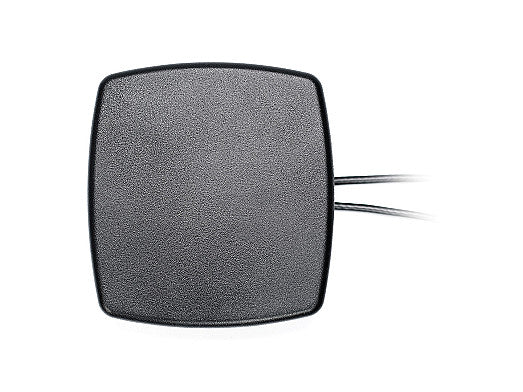

This compact combination antenna is designed for reliable connectivity across 4G LTE, 3G, 2G, and GNSS (GPS, GLONASS, Galileo, QZSS) networks. Its low-profile, ground plane independent design makes it ideal for installations where space is limited, while maintaining high performance and wide frequency coverage. The antenna is suitable for a variety of applications including mobile networks, IoT, smart cities, fleet management, and more. Its screw mount ensures secure attachment for external deployments.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.6:1, ~1.8:1, ~2.9:1
Efficiency (%): ~40.7, ~47.5, ~18.3
Peak Gain (dBi): ~1.8, ~5.0, ~-0.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.4:1
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6041BGF",
"title": "Falcon 4G LTE/3G/2G GPS/GLONASS/Galileo Compact Versatile Screw Mount Antenna",
"mountingType": "Screw Mount",
"ipRating": null,
"dimensions_mm": "80 x 74 x 14.7",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-7.5",
"vswr": "~2.6:1",
"efficiency_percent": "~40.7",
"peakGain_dbi": "~1.8",
"averageGain_db": "~-3.9"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-12.6",
"vswr": "~1.8:1",
"efficiency_percent": "~47.5",
"peakGain_dbi": "~5.0",
"averageGain_db": "~-3.3"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-6.4",
"vswr": "~2.9:1",
"efficiency_percent": "~18.3",
"peakGain_dbi": "~-0.1",
"averageGain_db": "~-7.4"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
