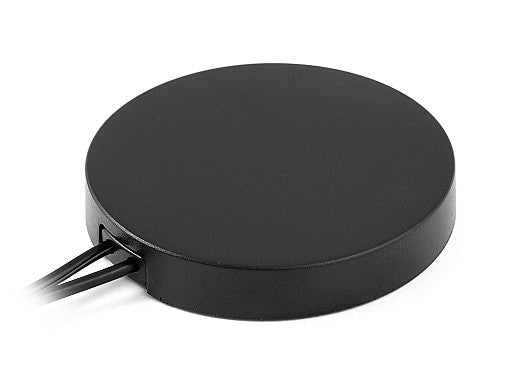

This low-profile combination antenna is designed for reliable connectivity in both cellular (3G/2G) and GNSS (GPS/QZSS/Galileo) applications. Its ground plane independent design allows for flexible installation on non-metal surfaces, making it ideal for asset tracking, fleet management, smart cities, and a wide range of IoT and telematics solutions. The antenna features an active GNSS element with pre-filtering for enhanced signal quality and is suitable for use in demanding environments where consistent performance is critical.
Connections
3G/2G/CELL
GPS/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Type: Combination
Location: External
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.6:1, ~2.4:1
Efficiency (%): ~43, ~32
Peak Gain (dBi): ~1.5, ~0.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
VSWR: <=1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 26 @ 3 V
Saw Filter Type: Pre-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40 - 137
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6200PF",
"title": "Cellular, GPS/Galileo 2 Cables Pre-Filter Combination Adhesive Mount Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "Ø 77 x 12",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"2G",
"3G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-13.8",
"vswr": "~1.6:1",
"efficiency_percent": "~43",
"peakGain_dbi": "~1.5",
"averageGain_db": "~-3.7"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-7.7",
"vswr": "~2.4:1",
"efficiency_percent": "~32",
"peakGain_dbi": "~0.5",
"averageGain_db": "~-5.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"QZSS",
"Galileo"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "<=-14",
"vswr": "<=1.5:1",
"efficiency_percent": null,
"peakGain_dbi": "~26",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
