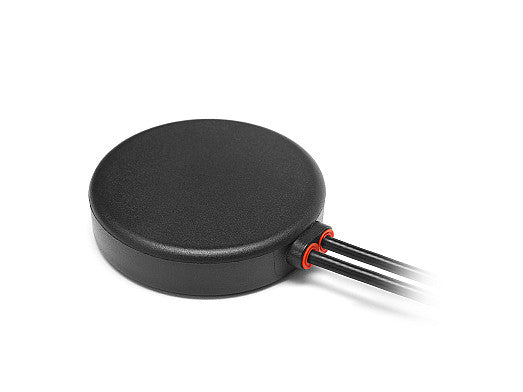

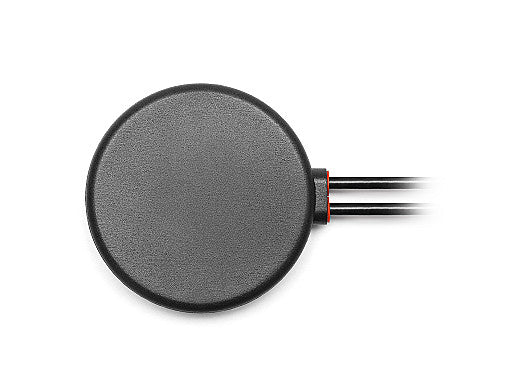

This low-profile combination antenna is designed for reliable connectivity in demanding environments. It supports both cellular (3G/2G) and GNSS (GPS, GLONASS, Galileo, QZSS) technologies, making it ideal for asset tracking, fleet management, telematics, and navigation applications. The antenna is ground plane independent and features a magnetic and adhesive mounting system for flexible installation on a variety of surfaces. Its active GNSS element with pre-filter ensures high-precision location tracking, while the robust IP67-rated housing provides protection against dust and water.
Connections
3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C

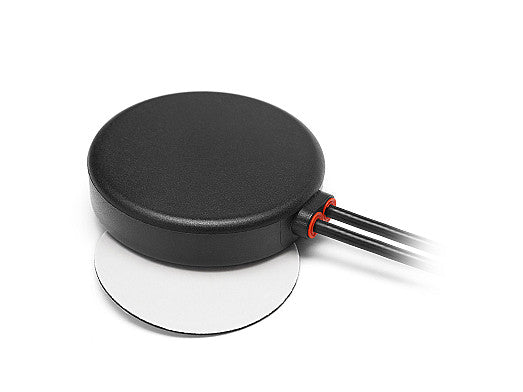

Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Type: Combination
Location: External
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.9:1, ~2.1:1
Efficiency (%): ~33.4, ~9.8
Peak Gain (dBi): ~1.2, ~-3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
Impedance (Ohm): 50
Active Gain (dB): 26 @ 3V
Saw Filter Type: Pre-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40 - 137
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6300MPGF",
"title": "Cellular, GPS/GLONASS/Galileo Magnetic Adhesive Mount Antenna",
"mountingType": "Magnetic/Adhesive Mount",
"ipRating": "IP67",
"dimensions_mm": "Ø 52.5 × 13.1/14.3",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"2G",
"3G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-10.8",
"vswr": "~1.9:1",
"efficiency_percent": "~33.4",
"peakGain_dbi": "~1.2",
"averageGain_db": "~-4.9"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-10.1",
"vswr": "~2.1:1",
"efficiency_percent": "~9.8",
"peakGain_dbi": "~-3.1",
"averageGain_db": "~-11.6"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "<-14",
"vswr": "<1.5:1",
"efficiency_percent": null,
"peakGain_dbi": "~26",
"averageGain_db": null
},
{
"range_mhz": "1598-1610",
"returnLoss_db": "<-14",
"vswr": "<1.5:1",
"efficiency_percent": null,
"peakGain_dbi": "~26",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
