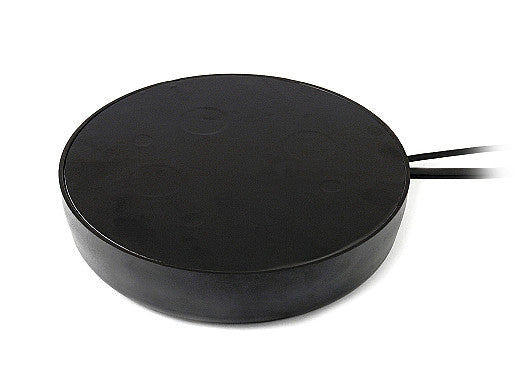

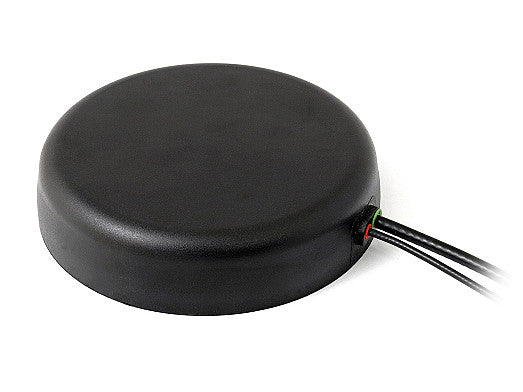

This heavy-duty magnetic mount antenna is engineered for reliable performance in demanding environments. It combines TETRA/UHF and GNSS (GPS, GLONASS, Galileo, QZSS) technologies, making it ideal for public safety, fleet management, logistics, smart cities, and other mission-critical applications. The robust design ensures durability and protection against harsh conditions, while the magnetic mount allows for quick and secure installation on metal surfaces.
Connections
GPS/GLO/QZSS/Galileo/L1
380-470MHz/LPWA/TETRA/UHF
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Combination
Connection 1 - TETRA/UHF
Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~4.7:1
Efficiency (%): ~33.8
Peak Gain (dBi): ~-0.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage Range (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 22 @ 5V
Power Consumption (mW): max 138 mW
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6507MGF",
"title": "TETRA/UHF GPS Glonass Galileo Heavy Duty Magnetic Mount Antenna",
"mountingType": "Magnetic Mount",
"ipRating": "IP67/IP69K",
"dimensions_mm": "Ø 135.5 × 30",
"elements": [
{
"elementID": "TETRA/UHF",
"type": "Cellular",
"technologies": [
"TETRA",
"UHF",
"LPWA"
],
"frequencies": [
{
"range_mhz": "380-470",
"returnLoss_db": "~-5.3",
"vswr": "~4.7:1",
"efficiency_percent": "~33.8",
"peakGain_dbi": "~-0.4",
"averageGain_db": "~-5.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 50
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": null,
"vswr": null,
"efficiency_percent": null,
"peakGain_dbi": "~3.6",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": null,
"vswr": null,
"efficiency_percent": null,
"peakGain_dbi": "~3.6",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "TETRA/UHF",
"type": "SMA-Male",
"cableType": "RG58",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
}
]
}
