2J  |  SKU: 2J8407BGF

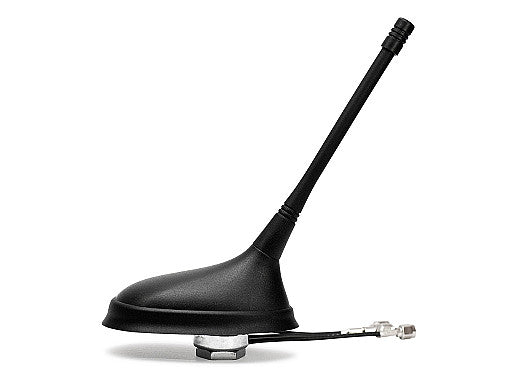

2J8407BGF TETRA/UHF, GNSS screw mount Antenna IP67 IP69

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0241

Description

This robust 2-in-1 combination antenna is designed for reliable performance in demanding environments, supporting both TETRA/UHF and GNSS (GPS, GLONASS, Galileo, QZSS) technologies. Its screw mount and anti-rotation system ensure secure installation, making it ideal for public safety, fleet management, smart cities, logistics, and other mission-critical applications. The antenna is ground plane dependent and features high peak gain for both TETRA and GNSS, with active GNSS circuitry and pre-filtering for enhanced signal quality. With IP67 and IP69 protection, it is suitable for outdoor and harsh conditions.

Connections

GPS/GLO/QZSS/Galileo/L1
380-470MHz/LPWA/TETRA/UHF


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Screw Mount
Type: Combination
Certificates: IP67, IP69

Connection 1 - TETRA/UHF

Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~2.5:1
Efficiency (%): ~56.5
Peak Gain (dBi): ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: <=1.2:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 26 @ 3 V, 27 @ 5 V
Saw Filter Type: Pre-Filter
Voltage Range (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J8407BGF", "title": "TETRA/UHF and GPS/GLONASS/Galileo Screw Mount Combination Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69", "dimensions_mm": "99 × 60 × 154", "elements": [ { "elementID": "TETRA/UHF", "type": "Cellular", "technologies": [ "TETRA", "UHF", "LPWA" ], "frequencies": [ { "range_mhz": "380-470", "returnLoss_db": "~-9.7", "vswr": "~2.5:1", "efficiency_percent": "~56.5", "peakGain_dbi": "~2.0", "averageGain_db": "~-2.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "Galileo", "QZSS" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": "~-14.0", "vswr": "~1.2:1", "efficiency_percent": null, "peakGain_dbi": "~26", "averageGain_db": null }, { "range_mhz": "1598-1610", "returnLoss_db": "~-14.0", "vswr": "~1.2:1", "efficiency_percent": null, "peakGain_dbi": "~27", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "TETRA/UHF", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 }, { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
