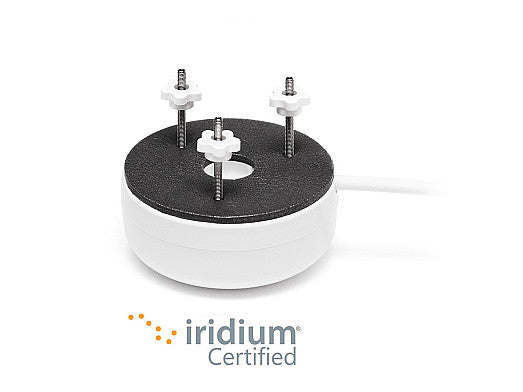

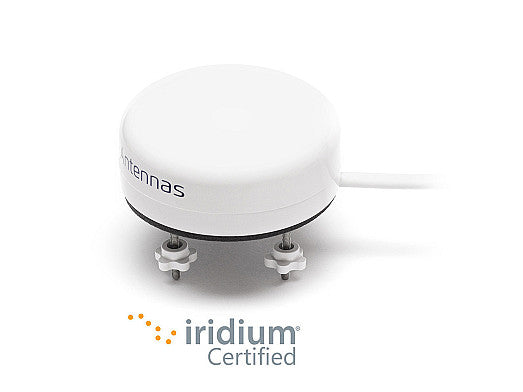

This high-performance marine antenna is designed for reliable satellite communication and navigation, supporting both GNSS (GPS, QZSS, Galileo) and Iridium networks. Its ground plane independent design ensures consistent performance in challenging environments, while the compact and robust construction makes it ideal for marine, transportation, and remote monitoring applications. The antenna is Iridium certified and features IP67 protection for durability in harsh conditions.
Connections
GPS/QZSS/Galileo/L1-IRIDIUM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Location: External
Connection 1 - GPS-IRIDIUM
Standards: GPS/QZSS/Galileo-IRIDIUM
Frequency: 1575.42, 1616-1627 MHz
Peak Gain (dBi): ~5.1, ~5.7
Efficiency (%): ~93.8, ~92.9
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarisation: RHCP
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J9134BW",
"title": "GPS/Galileo-IRIDIUM 1575-1616-1627 MHz Iridium Certified Screw Mount Marine Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67",
"dimensions_mm": "Ø 74 × 34.7",
"elements": [
{
"elementID": "GNSS + Iridium",
"type": "GNSS/Iridium",
"technologies": [
"GPS",
"QZSS",
"Galileo",
"Iridium"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "~-27.6",
"vswr": "~1.1:1",
"efficiency_percent": "~93.8",
"peakGain_dbi": "~5.1",
"averageGain_db": "~-0.3"
},
{
"range_mhz": "1616-1627",
"returnLoss_db": "~-21.6",
"vswr": "~1.3:1",
"efficiency_percent": "~92.9",
"peakGain_dbi": "~5.7",
"averageGain_db": "~-0.3"
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "GNSS + Iridium",
"type": "SMA-Male",
"cableType": "LL100W",
"cableLength_mm": 3000
}
]
}
