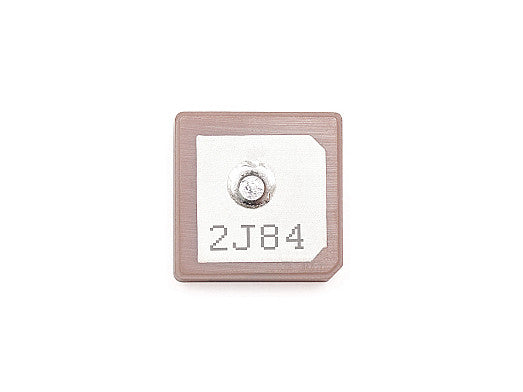

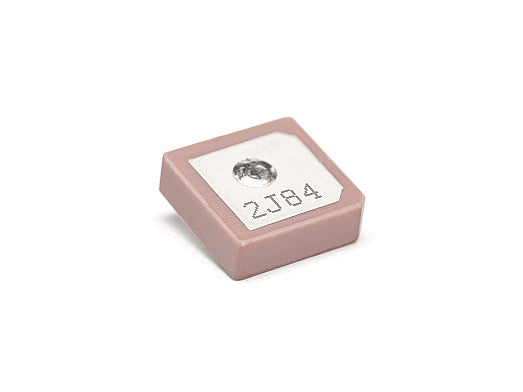

2JCP1340101Ga GNSS thru-hole mount Ceramic Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This compact ceramic antenna is designed for high-precision GNSS applications, supporting GPS, GLONASS, Galileo, and QZSS systems. Its small form factor and thru-hole mount make it ideal for embedded solutions where space is limited. The antenna delivers high passive gain and efficiency, making it suitable for demanding environments such as robotics, drones, fleet management, and asset tracking. Its ground plane dependent design ensures optimal performance when integrated into various electronic devices.

Connections

GPS/GLO/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Type: Single
Satellite Navigation: GNSS

Connection 1 - GNSS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.5, ~3.1
Efficiency (%): ~58.5, ~54.6
Impedance (Ohm): 50
Radiation Pattern: Hemispherical

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JCP1340101Ga", "title": "GPS/GLONASS/Galileo High Gain Ceramic Passive Antenna", "mountingType": "Thru-Hole Mount", "ipRating": null, "dimensions_mm": "13 x 13 x 4", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "QZSS", "Galileo" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": "~-9.3", "vswr": "~2.0:1", "efficiency_percent": "~58.5", "peakGain_dbi": "~3.5", "averageGain_db": "~-2.3" }, { "range_mhz": "1598-1606", "returnLoss_db": "~-18.7", "vswr": "~1.6:1", "efficiency_percent": "~54.6", "peakGain_dbi": "~3.1", "averageGain_db": "~-2.6" } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [] }
