2J  |  SKU: 2JCP1840101Ga

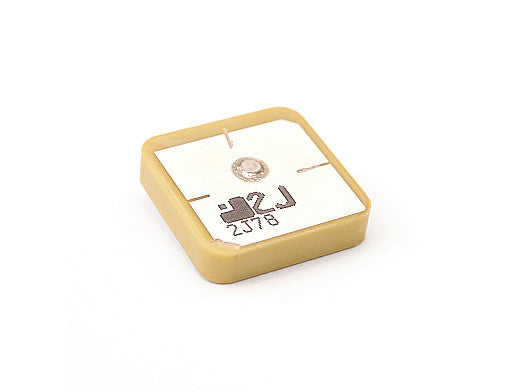

2JCP1840101Ga GNSS thru-hole mount Ceramic Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This high-gain ceramic antenna is designed for reliable GNSS signal reception, supporting GPS, GLONASS, QZSS, and Galileo systems. Its compact, embedded form factor makes it ideal for integration into a wide range of devices where space is limited. The antenna is ground plane dependent, ensuring optimal performance when properly installed. Typical applications include consumer electronics, robotics, drones, fleet management, smart cities, and asset tracking.

Connections

GPS/GLO/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Ceramic
Location: Internal
Mounting: Thru-Hole Mount Ceramic
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.1, ~4.2
Efficiency (%): ~73.9, ~73.7
Radiation Pattern: Hemispherical

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JCP1840101Ga", "title": "GPS/GLONASS/Galileo 1575-1606 MHz High Gain Ceramic Antenna", "mountingType": "Thru-Hole Mount", "ipRating": null, "dimensions_mm": "18 x 18 x 4", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "QZSS", "Galileo" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": "~-26.0", "vswr": "~1.1:1", "efficiency_percent": "~73.9", "peakGain_dbi": "~4.1", "averageGain_db": "~-1.3" }, { "range_mhz": "1598-1606", "returnLoss_db": "~-18.8", "vswr": "~1.3:1", "efficiency_percent": "~73.7", "peakGain_dbi": "~4.2", "averageGain_db": "~-1.3" } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [] }
