2J  |  SKU: 2J5115P-915

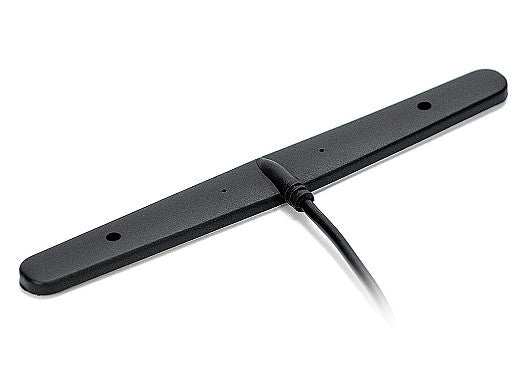

2J5115P-915 ISM Antenna adhesive mount

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1562

Description

This high-performance antenna is designed for reliable operation in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its flexible housing and low-profile design allow for easy integration into a variety of environments, while ground plane independence ensures consistent performance regardless of installation surface. The adhesive mount provides a simple and secure installation method, suitable for both indoor and outdoor deployments.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.2:1
Efficiency (%): ~62.4
Peak Gain (dBi): ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5115P-915", "title": "915 MHz ISM Flexible Housing High Performance Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "122 x 14 x 6", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-20.9", "vswr": "~1.2:1", "efficiency_percent": "~62.4", "peakGain_dbi": "~3.4", "averageGain_db": "~-2.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
