2J  |  SKU: 2J5215P-868

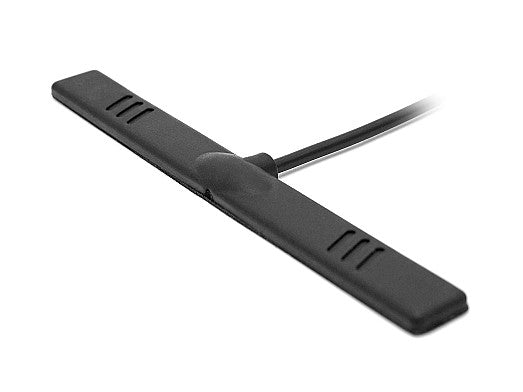

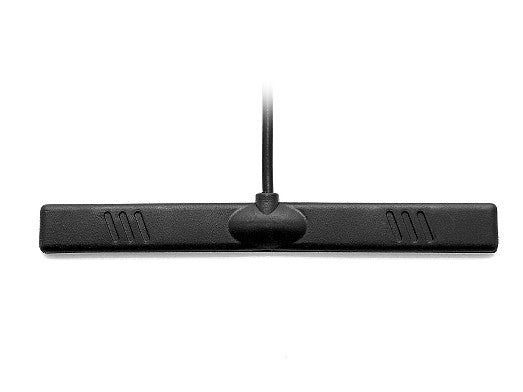

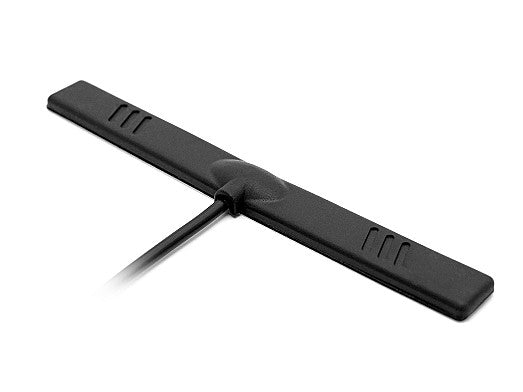

2J5215P-868 ISM Antenna adhesive mount

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1552

Description

This high-performance antenna is designed for reliable operation in the 868 MHz ISM band, making it ideal for IoT, smart home, industrial, and automation applications. Its flexible housing and low-profile design allow for easy integration into a variety of environments, while ground plane independence ensures consistent performance. The adhesive mount provides a simple and secure installation option for both temporary and permanent setups.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Location: External
Mounting: Adhesive Mount
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.2:1
Efficiency (%): ~59.1
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5215P-868", "title": "868 MHz ISM Flexible Housing High Performance Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "117.4 x 12.5 x 6.5", "elements": [ { "elementID": "ISM 868", "type": "ISM", "technologies": [ "ISM", "LoRa", "SigFox", "ZigBee" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-20.3", "vswr": "~1.2:1", "efficiency_percent": "~59.1", "peakGain_dbi": "~2.6", "averageGain_db": "~-2.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
