2J  |  SKU: 2J5502VP

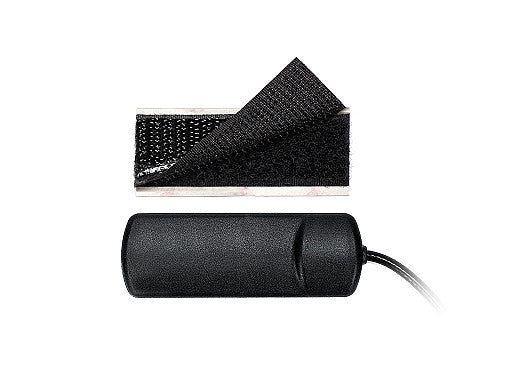

2J5502VP Wi-Fi 6E/7, ISM Antenna adhesive/velcro mount customizable

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1511

Description

This low-profile antenna is designed for next-generation wireless connectivity, supporting Wi-Fi 6E, Wi-Fi 7, and ISM bands. Its ground plane independent design ensures reliable performance across a wide range of applications, including smart home, entertainment, healthcare, transportation, and IoT solutions. The antenna features a customizable cable and connector option, making it adaptable for various installation requirements. Its adhesive and velcro mounting options provide flexible and secure placement on different surfaces.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Velcro Mount, Velcro/Adhesive Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
LPWAN & IoT Communication: SigFox, LoRa
Antenna Technologies: Dipole

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.9:1, ~2.6:1
Efficiency (%): ~54.0, ~46.0, ~26.3
Peak Gain (dBi): ~3.3, ~2.0, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J5502VP", "title": "WIFI 6E / WIFI 7 ISM Customizable Velcro-Adhesive Antenna", "mountingType": "Velcro/Adhesive Mount", "ipRating": null, "dimensions_mm": "71 × 25 × 7", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "BT", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-14.3", "vswr": "~1.6:1", "efficiency_percent": "~54.0", "peakGain_dbi": "~3.3", "averageGain_db": "~-2.7" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-12.1", "vswr": "~1.9:1", "efficiency_percent": "~46.0", "peakGain_dbi": "~2.0", "averageGain_db": "~-3.5" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-7.4", "vswr": "~2.6:1", "efficiency_percent": "~26.3", "peakGain_dbi": "~-0.3", "averageGain_db": "~-6.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
