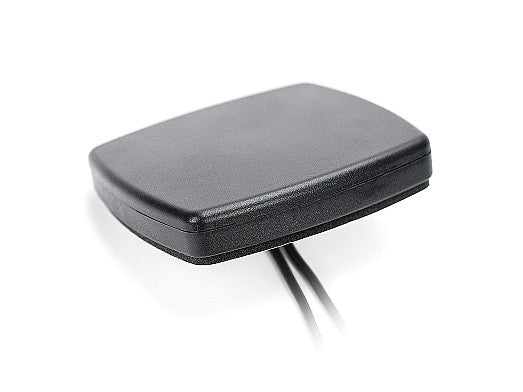

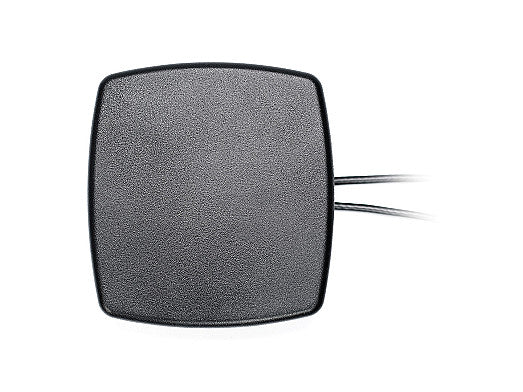

This low-profile, ultra-compact antenna is designed for high-performance dual-band Wi-Fi and ISM applications. Its 2-in-1 MIMO configuration ensures reliable and fast wireless connectivity, making it ideal for smart home, industrial, transportation, and multimedia environments. The sleek design with a maximum height of just 15 mm allows for easy integration into space-constrained installations, while ground plane independence offers flexible mounting options. Perfect for applications requiring robust wireless performance and versatility.
Connections
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External

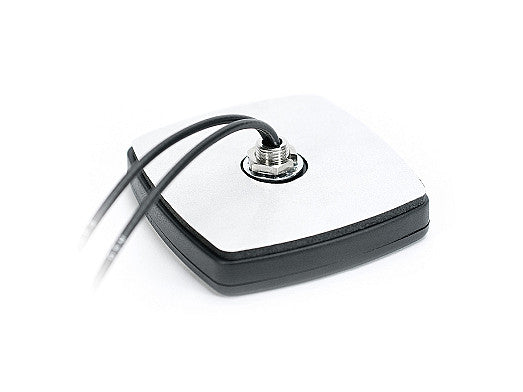

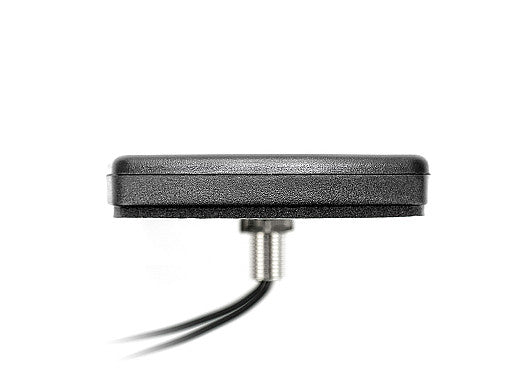

Mounting: Screw Mount
Type: Combination
Connection 1 - 2.4/5.0 GHz ISM
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.7:1
Efficiency (%): ~38.4, ~25.6
Peak Gain (dBi): ~3.8, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Connection 2 - 2.4/5.0 GHz ISM
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.6:1, ~1.6:1
Efficiency (%): ~36.5, ~27.7
Peak Gain (dBi): ~3.8, ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6002Ba",
"title": "Falcon WiFi ISM MIMO Sleek Compact Ultra Versatile Antenna",
"mountingType": "Screw Mount",
"ipRating": null,
"dimensions_mm": "80 x 74 x 14.7",
"elements": [
{
"elementID": "Wi-Fi 1 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-18.0",
"vswr": "~1.3:1",
"efficiency_percent": "~38.4",
"peakGain_dbi": "~3.8",
"averageGain_db": "~-4.2"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-12.8",
"vswr": "~1.7:1",
"efficiency_percent": "~25.6",
"peakGain_dbi": "~2.8",
"averageGain_db": "~-6.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 2 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-12.9",
"vswr": "~1.6:1",
"efficiency_percent": "~36.5",
"peakGain_dbi": "~3.8",
"averageGain_db": "~-4.4"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-12.8",
"vswr": "~1.6:1",
"efficiency_percent": "~27.7",
"peakGain_dbi": "~3.4",
"averageGain_db": "~-5.6"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi 1",
"type": "RP-SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 2",
"type": "RP-SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
