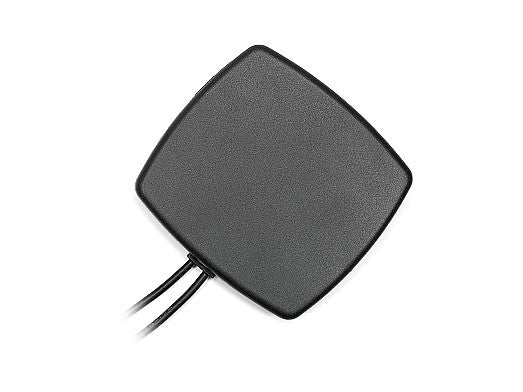

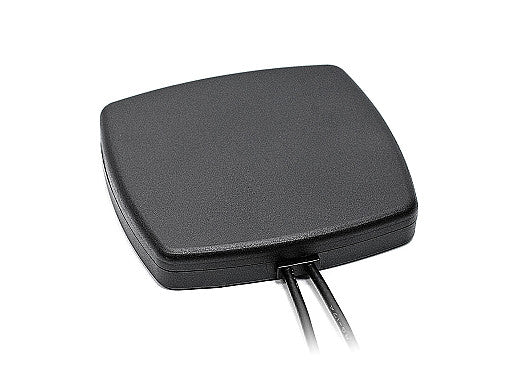

This ultra-compact, low-profile antenna is designed for high-performance Wi-Fi and ISM applications, supporting MIMO technology for enhanced data throughput and reliability. Its ground plane independence and adhesive mounting make it ideal for easy integration into a wide range of devices and environments, including smart home, industrial automation, transportation, and entertainment systems. The sleek design with a maximum height of just 16 mm ensures minimal visual impact while delivering robust wireless connectivity.
Connections
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Type: Combination
Connection 1 - 2.4/5.0 GHz ISM
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~61.6, ~44.6
Peak Gain (dBi): ~5.0, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Connection 2 - 2.4/5.0 GHz ISM
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~60.1, ~41.2
Peak Gain (dBi): ~4.8, ~5.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6002Pa",
"title": "Falcon WiFi ISM MIMO Sleek Compact Ultra Versatile Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "80 x 76 x 16",
"elements": [
{
"elementID": "Wi-Fi 1 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-16.7",
"vswr": "~1.4:1",
"efficiency_percent": "~61.6",
"peakGain_dbi": "~5.0",
"averageGain_db": "~-2.1"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-14.2",
"vswr": "~1.5:1",
"efficiency_percent": "~44.6",
"peakGain_dbi": "~4.6",
"averageGain_db": "~-3.5"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 10
},
{
"elementID": "Wi-Fi 2 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-17.0",
"vswr": "~1.4:1",
"efficiency_percent": "~60.1",
"peakGain_dbi": "~4.8",
"averageGain_db": "~-2.2"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-16.9",
"vswr": "~1.5:1",
"efficiency_percent": "~41.2",
"peakGain_dbi": "~5.3",
"averageGain_db": "~-3.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 10
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi 1",
"type": "RP SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 2",
"type": "RP SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
}
]
}
