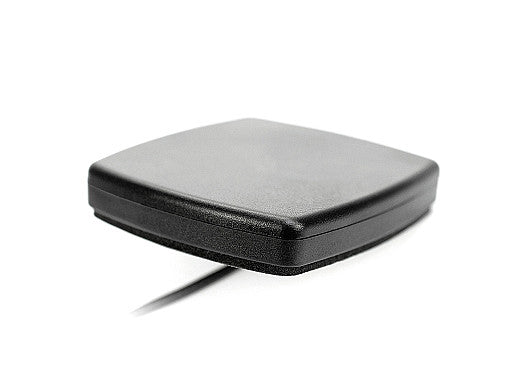

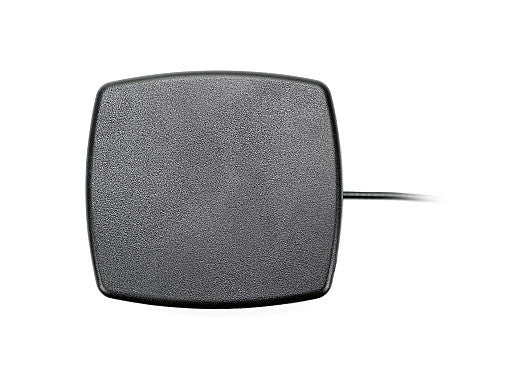

This compact, low-profile antenna is designed for versatile applications requiring reliable performance in the 868 MHz ISM band and 2.4 GHz Wi-Fi spectrum. Its ground plane independence and robust construction make it ideal for IoT, smart home, industrial, and transportation environments. The antenna's screw mount design ensures secure installation, while its IP67 rating provides protection against dust and water ingress, making it suitable for both indoor and outdoor deployments.
Connections
868MHz-WIFI 2.4GHz ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C

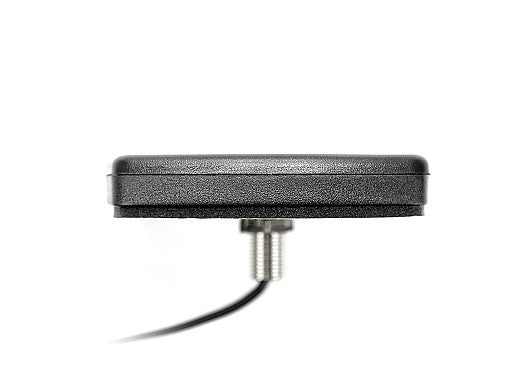

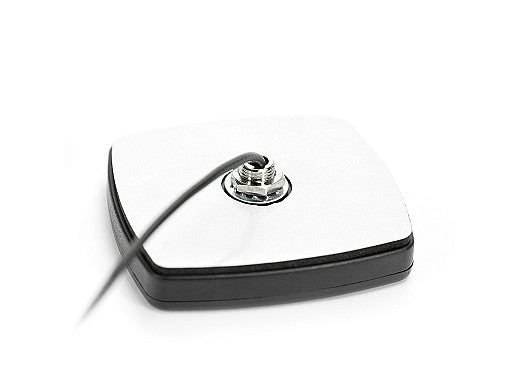

Mounting: Screw Mount
Type: Single
Connection 1 - 868 MHz / WIFI 2.4 GHz Antenna
Standards: ZigBee, ISM, SIGFOX, LoRa, WIFI, Bluetooth
Frequency: 863-870, 2410-2490 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~50.5, ~40.8
Peak Gain (dBi): ~2.2, ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6015B-868-2.4",
"title": "Falcon 868 MHz and WiFi 2.4 GHz ISM Compact Ultra Versatile Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67",
"dimensions_mm": "80 × 74 × 14.7",
"elements": [
{
"elementID": "ISM 868 MHz",
"type": "ISM",
"technologies": [
"ZigBee",
"ISM",
"SigFox",
"LoRa"
],
"frequencies": [
{
"range_mhz": "863-870",
"returnLoss_db": "~-15.3",
"vswr": "~1.4:1",
"efficiency_percent": "~50.5",
"peakGain_dbi": "~2.2",
"averageGain_db": "~-3.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 2.4 GHz",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-14.7",
"vswr": "~1.5:1",
"efficiency_percent": "~40.8",
"peakGain_dbi": "~3.7",
"averageGain_db": "~-4.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "ISM 868 MHz",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 2.4 GHz",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
