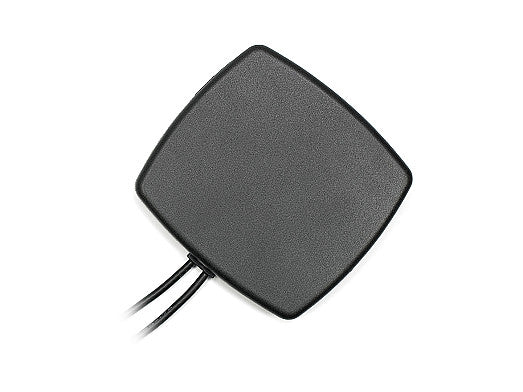

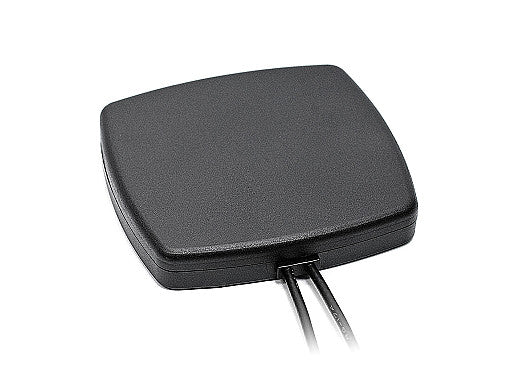

This compact 2-in-1 antenna is designed for reliable performance across 4G/LTE, 3G, 2G, Wi-Fi, Bluetooth, ZigBee, and ISM bands. Its low-profile, ground plane independent design makes it ideal for installations where space is limited, while the magnetic mount ensures quick and secure attachment to metal surfaces. The antenna is suitable for a wide range of applications including mobile networks, IoT, asset tracking, smart cities, and industrial monitoring.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.8:1, ~2.8:1, ~1.5:1
Efficiency (%): ~37.8, ~27.3, ~51.3
Peak Gain (dBi): ~1.5, ~3.2, ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.3:1
Efficiency (%): ~42.1, ~39.2
Peak Gain (dBi): ~3.0, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6047M",
"title": "Falcon 4G LTE/3G/2G WiFi ISM Sleek Compact Magnetic Antenna",
"mountingType": "Magnetic Mount",
"ipRating": null,
"dimensions_mm": "80 x 76 x 13",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-11.3",
"vswr": "~1.8:1",
"efficiency_percent": "~37.8",
"peakGain_dbi": "~1.5",
"averageGain_db": "~-4.3"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-6.6",
"vswr": "~2.8:1",
"efficiency_percent": "~27.3",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-5.7"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-15.2",
"vswr": "~1.5:1",
"efficiency_percent": "~51.3",
"peakGain_dbi": "~6.0",
"averageGain_db": "~-2.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "ISM/Wi-Fi",
"type": "ISM",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-12.7",
"vswr": "~1.7:1",
"efficiency_percent": "~42.1",
"peakGain_dbi": "~3.0",
"averageGain_db": "~-3.8"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-20.4",
"vswr": "~1.3:1",
"efficiency_percent": "~39.2",
"peakGain_dbi": "~4.8",
"averageGain_db": "~-4.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
},
{
"elementIDRef": "ISM/Wi-Fi",
"type": "RP-SMA-Male",
"cableType": "D302",
"cableLength_mm": 3000
}
]
}
