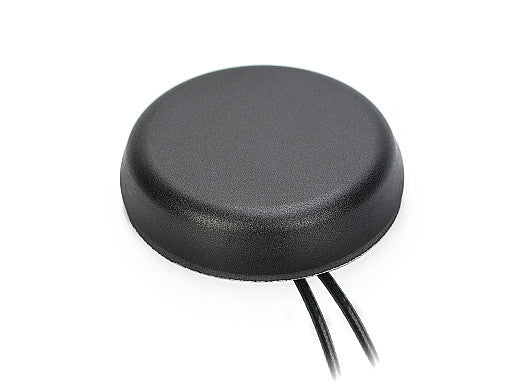

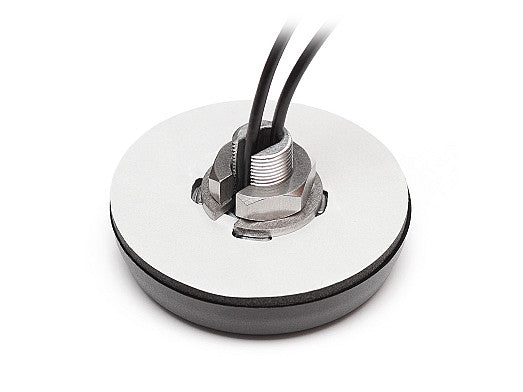

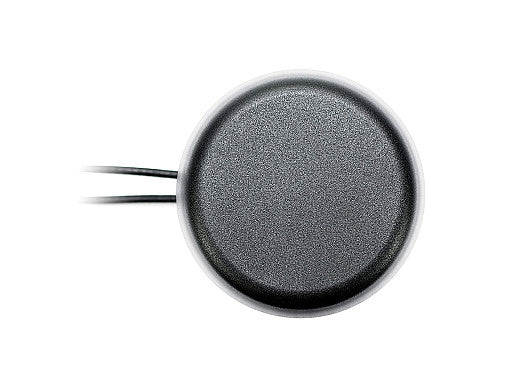

This low-profile, ground plane independent antenna is designed for high-performance Wi-Fi 6E and Wi-Fi 7 connectivity in demanding environments. Its 2-in-1 MIMO configuration ensures robust, high-speed wireless communication, making it ideal for smart home, smart city, entertainment, healthcare, transportation, and industrial IoT applications. The anti-rotation screw mount provides secure installation, while the IP67 and IP69 ratings guarantee protection against dust and water, supporting reliable operation in harsh conditions.
Connections
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination
Connection 1 - Wi-Fi 6E/7 MIMO
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.9:1, ~1.6:1
Efficiency (%): ~28.9, ~41.9, ~42.1
Peak Gain (dBi): ~2.0, ~3.5, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - Wi-Fi 6E/7 MIMO
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.4:1, ~1.9:1, ~1.8:1
Efficiency (%): ~30.0, ~47.7, ~49.8
Peak Gain (dBi): ~2.2, ~3.6, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6602Ba-RB-SP",
"title": "2-in-1 WiFi 6E / WiFi 7 MIMO Screw Mount Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67/IP69K",
"dimensions_mm": "Ø 69 × 15",
"elements": [
{
"elementID": "Wi-Fi 1 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-14.1",
"vswr": "~1.5:1",
"efficiency_percent": "~28.9",
"peakGain_dbi": "~2.0",
"averageGain_db": "~-5.4"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-12.0",
"vswr": "~1.9:1",
"efficiency_percent": "~41.9",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-3.8"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-11.35",
"vswr": "~1.6:1",
"efficiency_percent": "~42.1",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-3.7"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 2 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-15.2",
"vswr": "~1.4:1",
"efficiency_percent": "~30.0",
"peakGain_dbi": "~2.2",
"averageGain_db": "~-5.2"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-11.8",
"vswr": "~1.9:1",
"efficiency_percent": "~47.7",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-3.2"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-11.4",
"vswr": "~1.8:1",
"efficiency_percent": "~49.8",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-3.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi 1",
"type": "SMA-Male-RP",
"cableType": "D302",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 2",
"type": "SMA-Male-RP",
"cableType": "D302",
"cableLength_mm": 3000
}
]
}
