2J  |  SKU: 2J6615B-915

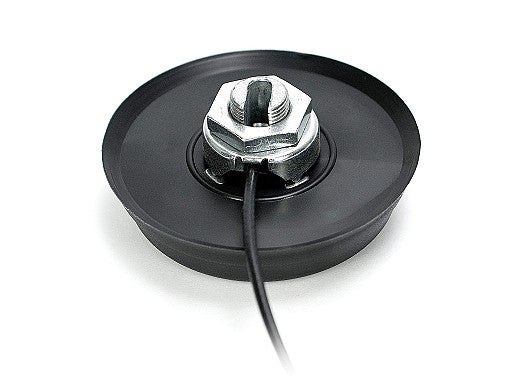

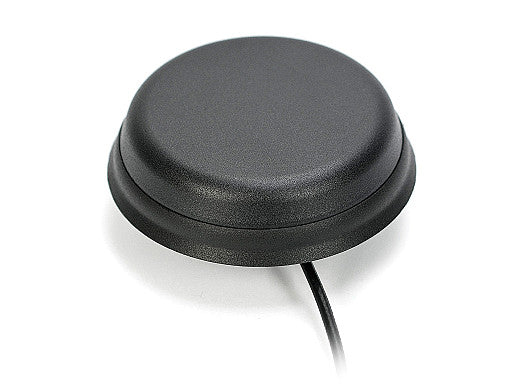

2J6615B-915 ISM screw mount Antenna IP67 IP69K

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1261

Description

This low-profile antenna is designed for reliable performance in the 915 MHz ISM band, supporting ZigBee, Sigfox, LoRa, LPWA, RFID, and other IoT applications. Its robust construction ensures durability in harsh environments, making it ideal for industrial, smart city, and remote monitoring deployments. The anti-rotation screw mount and ground plane dependent design provide secure installation and optimal signal quality. The antenna is customizable for cable and connector options to suit a variety of integration needs.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Location: External

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.5:1
Efficiency (%): ~33.5
Peak Gain (dBi): ~0.85
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6615B-915", "title": "915 MHz ISM Low Profile Screw Mount IP67/IP69K Customizable Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K", "dimensions_mm": "Ø 77.3 x 15", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-13.5", "vswr": "~1.5:1", "efficiency_percent": "~33.5", "peakGain_dbi": "~0.85", "averageGain_db": "~-4.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
