2J  |  SKU: 2J6902Ba

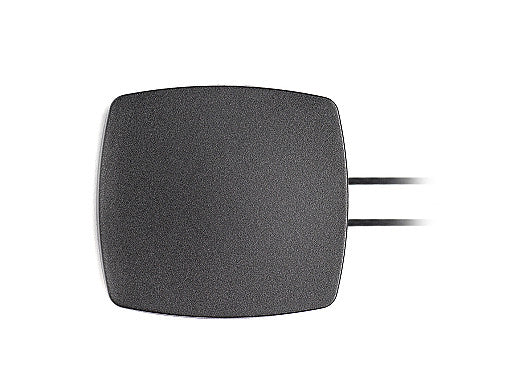

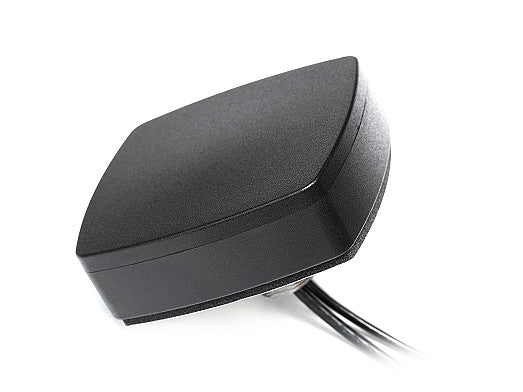

2J6902Ba Wi-Fi 6E/7, ISM screw mount Antenna Phoenix MIMO SMA-M 300cm

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1225

Description

The Phoenix 2-in-1 high-performance antenna is designed for next-generation Wi-Fi 6E and Wi-Fi 7 applications, delivering exceptional data rates, reduced latency, and robust connectivity. Its MIMO configuration ensures reliable, high-bandwidth wireless performance, making it ideal for demanding environments such as smart homes, gaming, IoT, and commercial networks. The antenna's omnidirectional design provides 360° coverage, supporting a wide range of wireless standards including Bluetooth, ZigBee, ISM, SigFox, and LoRa. Its rugged, waterproof, and UV-stable housing ensures durability in harsh outdoor conditions, while the anti-rotation screw mount allows secure installation on various surfaces.

Connections

2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

  • Connector Type: SMA-Male
  • Cable Length: 300cm
  • Cable Type: D302

Installation / Environmental

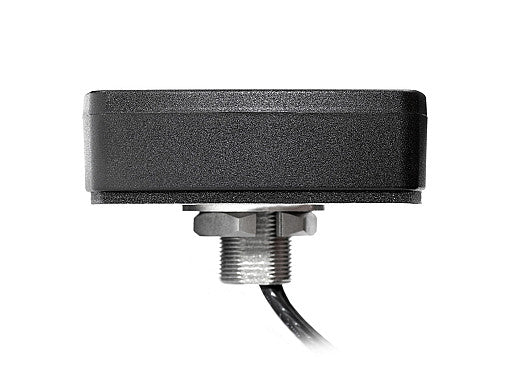

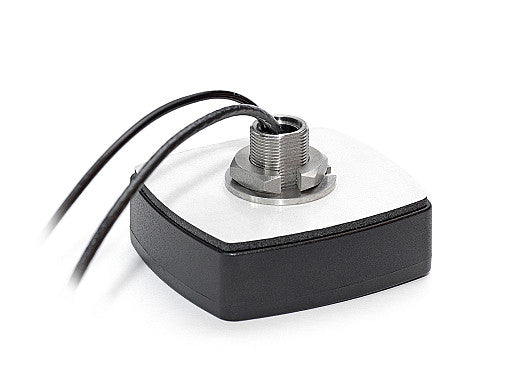

The 2J6902Ba features a robust, waterproof, and dust-resistant housing made of ASA material with UV stability, measuring 80 x 74 x 25.6 mm, ensuring the antenna's protection in harsh environmental conditions. Its design includes an anti-rotation screw mount and is independent of a ground plane, enabling secure installation on various surfaces without limitations. This external antenna comes equipped with a standard SMA-Male connector and a 300 cm long D302 cable, with custom options available upon request. This antenna is IP67 and IP69 certified.


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi 6E, Wi-Fi 7, Bluetooth, ZigBee, ISM, SigFox, LoRa
Type: Combination

Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.0:1, ~1.6:1, ~1.6:1
Efficiency (%): ~42.2, ~47.2, ~45.0
Peak Gain (dBi): ~5.2, ~5.2, ~5.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.5:1, ~1.5:1
Efficiency (%): ~35.2, ~49.5, ~49.1
Peak Gain (dBi): ~4.9, ~5.5, ~5.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6902Ba", "title": "Phoenix 2-in-1 WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69", "dimensions_mm": "80 x 74 x 25.6", "elements": [ { "elementID": "Wi-Fi 1 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "BT", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-9.6", "vswr": "~2.0:1", "efficiency_percent": "~42.2", "peakGain_dbi": "~5.2", "averageGain_db": "~-3.8" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-13.1", "vswr": "~1.6:1", "efficiency_percent": "~47.2", "peakGain_dbi": "~5.2", "averageGain_db": "~-3.3" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-13.1", "vswr": "~1.6:1", "efficiency_percent": "~45.0", "peakGain_dbi": "~5.1", "averageGain_db": "~-3.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Wi-Fi 2 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "BT", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-13.6", "vswr": "~1.5:1", "efficiency_percent": "~35.2", "peakGain_dbi": "~4.9", "averageGain_db": "~-4.5" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-14.1", "vswr": "~1.5:1", "efficiency_percent": "~49.5", "peakGain_dbi": "~5.5", "averageGain_db": "~-3.1" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-14.4", "vswr": "~1.5:1", "efficiency_percent": "~49.1", "peakGain_dbi": "~5.4", "averageGain_db": "~-3.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi 1", "type": "SMA-Male RP", "cableType": "D302", "cableLength_mm": 3000 }, { "elementIDRef": "Wi-Fi 2", "type": "SMA-Male RP", "cableType": "D302", "cableLength_mm": 3000 } ] }
