2J  |  SKU: 2J6902MPa

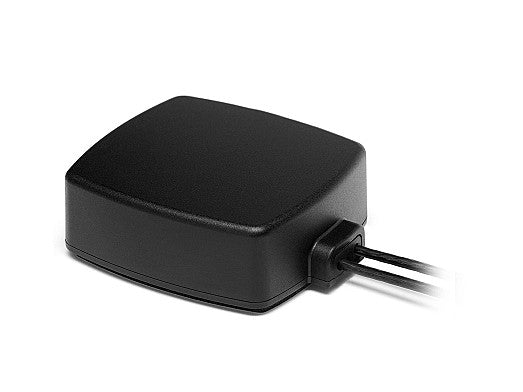

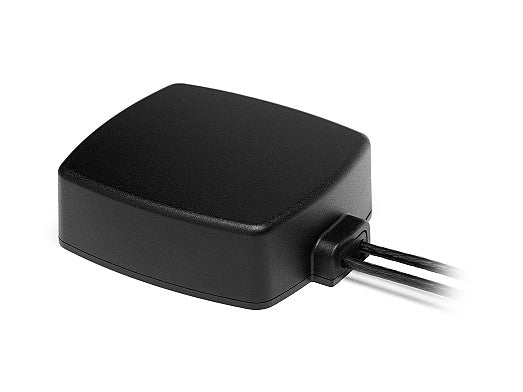

2J6902MPa Wi-Fi 6E/7, ISM MIMO adhesive/magnetic mount Antenna Phoenix SMA-M 300cm IP67/IP69

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1211

Description

This high-performance low-profile antenna is engineered for next-generation Wi-Fi 6E and Wi-Fi 7 connectivity, supporting 2.4, 5.0, and 6.0 GHz bands. Its dual MIMO configuration ensures robust, high-speed wireless performance, making it ideal for routers, gaming, IoT, and smart home applications. The omnidirectional design provides 360° coverage, while the rugged, waterproof, and UV-stable housing guarantees reliable operation in demanding environments. The antenna is suitable for both permanent and temporary installations, offering flexibility for a wide range of commercial and residential uses.

Connections

2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

  • Connector Type: SMA-M
  • Cable Length: 300cm
  • Cable Type: D302

Installation / Environmental

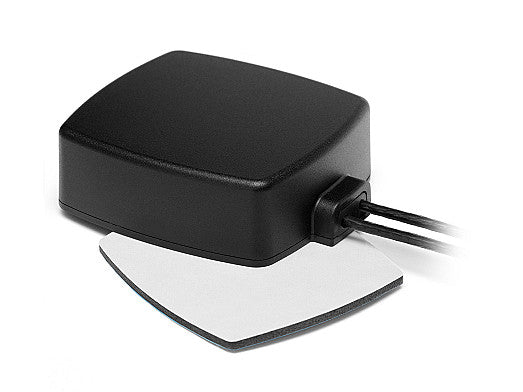

With a user-friendly peel-n-stick adhesive magnetic mount, the Phoenix 2J6902MPa can be effortlessly installed on any metal surface, be it a vehicle or a metal building. No additional grounding is required, making the installation process a breeze. The adhesive and magnetic mount is robust enough for long-term installations, yet it also provides an easy option for temporary applications and relocation, ensuring your convenience at all times.

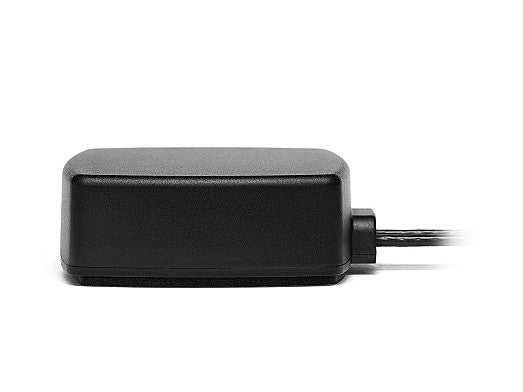

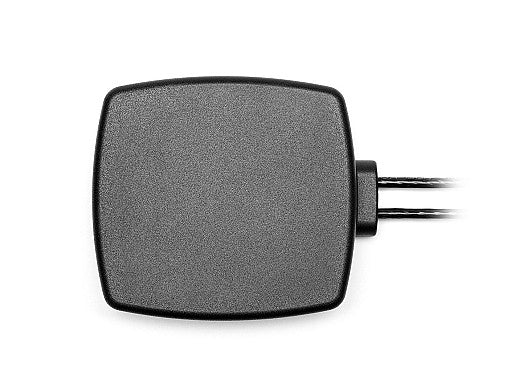

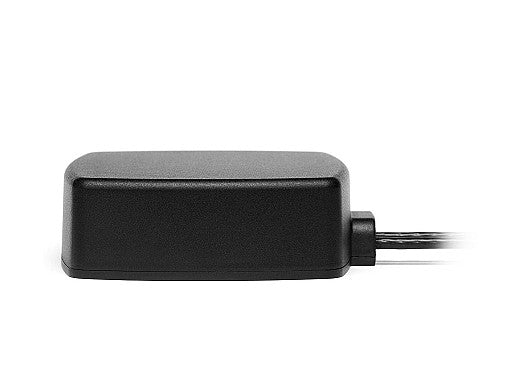

The Phoenix 2J6902MPa is built to last, enclosed in a robust, waterproof, and dust-resistant ASA UV-stable housing. This compact antenna, measuring 89 × 76 × 27/30 mm, is designed to withstand extreme environmental conditions, ensuring uninterrupted performance. It comes with a standard SMA-Male connector and a 300 cm long D302 cable (custom options available), providing you with the flexibility you need.
This antenna is IP67 and IP69 certified.


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Type: Combination

Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.3:1, ~1.7:1, ~1.7:1
Efficiency (%): ~38.4, ~25.6, ~29.1
Peak Gain (dBi): ~3.8, ~2.8, ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.6:1, ~1.6:1
Efficiency (%): ~36.5, ~27.7, ~27.6
Peak Gain (dBi): ~3.8, ~3.4, ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6902MPa", "title": "Phoenix 2.4/5.0/6.0GHz WiFi 6E / WiFi 7 MIMO Adhesive/Magnetic Mount Antenna", "mountingType": "Magnetic/Adhesive Mount", "ipRating": "IP67/IP69", "dimensions_mm": "89 × 76 × 27/30", "elements": [ { "elementID": "Wi-Fi 1 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Wi-Fi", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-18.0", "vswr": "~1.3:1", "efficiency_percent": "~38.4", "peakGain_dbi": "~3.8", "averageGain_db": "~-4.2" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-12.8", "vswr": "~1.7:1", "efficiency_percent": "~25.6", "peakGain_dbi": "~2.8", "averageGain_db": "~-6.0" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-12.8", "vswr": "~1.7:1", "efficiency_percent": "~29.1", "peakGain_dbi": "~2.4", "averageGain_db": "~-5.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Wi-Fi 2 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Wi-Fi", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-12.9", "vswr": "~1.6:1", "efficiency_percent": "~36.5", "peakGain_dbi": "~3.8", "averageGain_db": "~-4.4" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-12.9", "vswr": "~1.6:1", "efficiency_percent": "~27.7", "peakGain_dbi": "~3.4", "averageGain_db": "~-5.6" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-12.9", "vswr": "~1.6:1", "efficiency_percent": "~27.6", "peakGain_dbi": "~2.6", "averageGain_db": "~-5.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi 1", "type": "SMA-Male-RP", "cableType": "D302", "cableLength_mm": 3000 }, { "elementIDRef": "Wi-Fi 2", "type": "SMA-Male-RP", "cableType": "D302", "cableLength_mm": 3000 } ] }
