2J  |  SKU: 2J6A15B-868

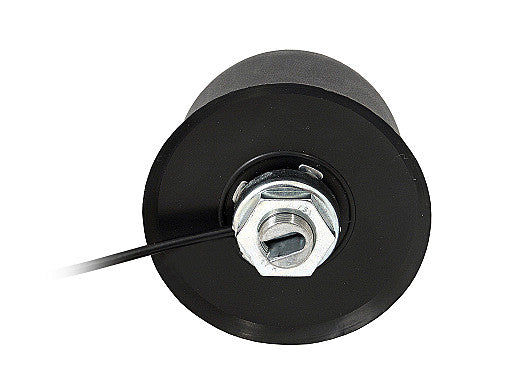

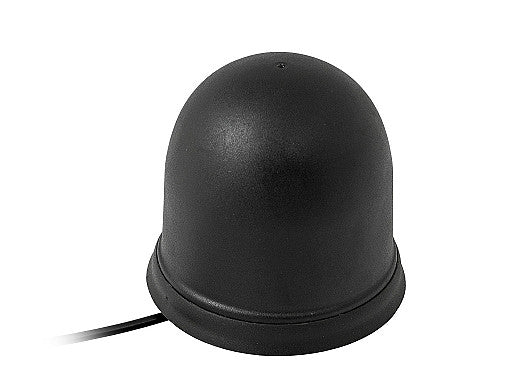

2J6A15B-868 ISM screw mount Antenna IP67/IP69K

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1031

Description

This high-performance antenna is designed for reliable operation in the 868 MHz ISM band, making it ideal for IoT, smart home, industrial, and automation applications. Its robust construction features anti-rotation mounting and a heavy-duty design, ensuring durability in demanding environments. The antenna is ground plane dependent and offers a high peak gain for enhanced signal strength. Customization options are available for cable and connector configurations to suit specific installation needs.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Location: External

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.3:1
Efficiency (%): ~61.8
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6A15B-868", "title": "868 MHz ISM Anti-Rotation Customizable Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K/IK09", "dimensions_mm": "Ø 77.3 x 65.5", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ISM", "SIGFOX", "LoRa", "ZigBee" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-17.3", "vswr": "~1.3:1", "efficiency_percent": "~61.8", "peakGain_dbi": "~2.6", "averageGain_db": "~-2.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
