2J  |  SKU: 2J6A15B-915

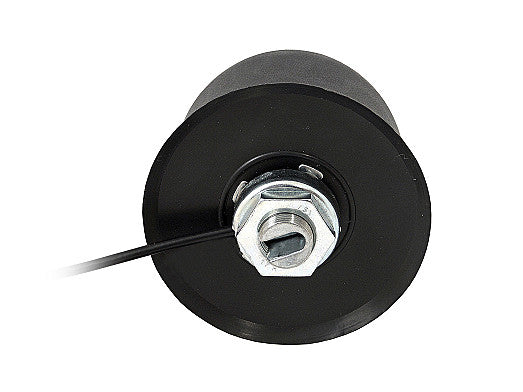

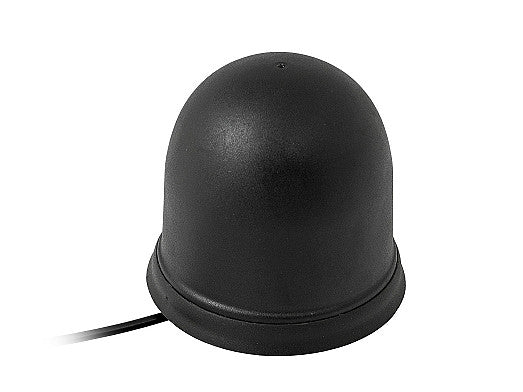

2J6A15B-915 ISM screw mount Antenna IP67/IP69K

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1029

Description

This high-gain antenna is designed for reliable performance in the 915 MHz ISM band, supporting ZigBee, Sigfox, LoRa, LPWA, RFID, and other IoT applications. Its robust, heavy-duty construction and anti-rotation screw mount make it ideal for demanding industrial, smart city, and remote monitoring environments. The antenna is ground plane dependent and features a customizable cable and connector option to suit various installation needs. Certified to IP67, IP69K, and IK09, it is built to withstand harsh outdoor conditions.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Location: External

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.4:1
Efficiency (%): ~66.8
Peak Gain (dBi): ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6A15B-915", "title": "915 MHz ISM Anti-Rotation Customizable Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K/IK09", "dimensions_mm": "Ø 77.3 x 65.5", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-15.1", "vswr": "~1.4:1", "efficiency_percent": "~66.8", "peakGain_dbi": "~4.0", "averageGain_db": "~-1.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
