2J  |  SKU: 2J7515M-915

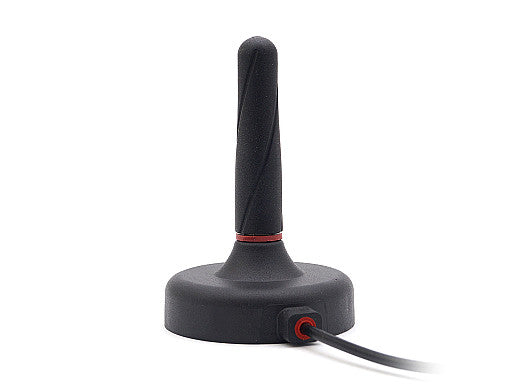

2J7515M-915 ISM magnetic mount Antenna IP67 IP69

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0578

Description

This high-performance antenna is designed for reliable operation in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust construction ensures durability in demanding environments, while the magnetic mount allows for quick and flexible installation on metal surfaces. The antenna is ground plane dependent and offers high efficiency and peak gain for optimal wireless performance. With IP67 and IP69 ratings, it is protected against dust and water ingress, making it suitable for both indoor and outdoor deployments.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa, RFID
Frequency: 902-928 MHz
VSWR: ~1.4:1
Efficiency (%): ~66
Peak Gain (dBi): ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J7515M-915", "title": "915 MHz ISM High Performance IP67/IP69 Waterproof Magnetic Mount Antenna", "mountingType": "Magnetic Mount", "ipRating": "IP67/IP69", "dimensions_mm": "Ø 54 x 80", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa", "RFID" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-14", "vswr": "~1.4:1", "efficiency_percent": "~66", "peakGain_dbi": "~2.3", "averageGain_db": "~-1.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
