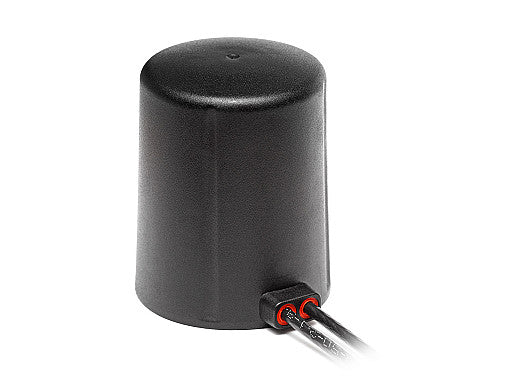

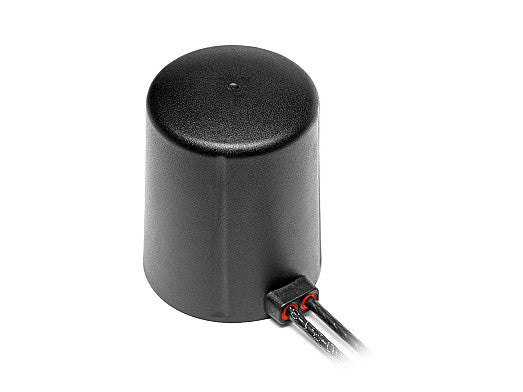

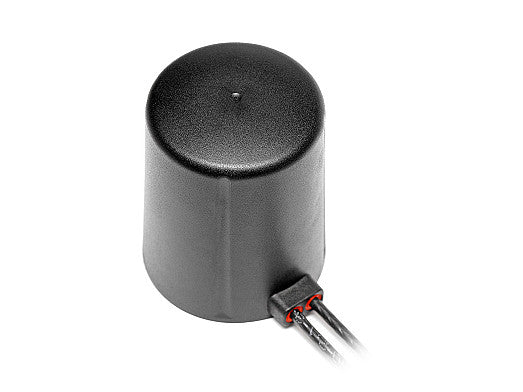

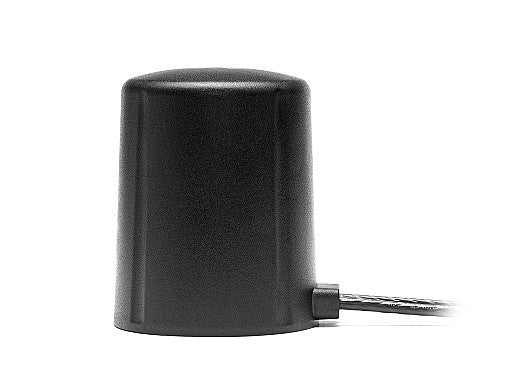

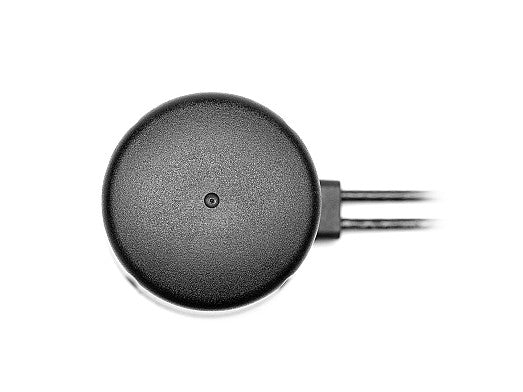

This compact, high-performance antenna is designed for reliable dual-band Wi-Fi and ISM connectivity in demanding environments. Its 2-in-1 MIMO configuration ensures enhanced data throughput and robust wireless performance, making it ideal for applications such as smart home, smart cities, entertainment, healthcare, transportation, and more. The magnetic mount allows for quick and secure installation on metallic surfaces, while the rugged construction provides durability for both indoor and outdoor use. The antenna is ground plane dependent and offers high peak gain for optimal signal strength.
Connections
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Magnetic Mount
Type: Combination
Connection 1 - 2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.5:1, ~2.3:1
Efficiency (%): ~51.5, ~33.6
Peak Gain (dBi): ~3.2, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.6:1, ~2.2:1
Efficiency (%): ~49.3, ~30.0
Peak Gain (dBi): ~3.9, ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J7702Ma",
"title": "2 x Dual Band WiFi MIMO Shaker High Performance Magnetic Mount Antenna",
"mountingType": "Magnetic Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "Ø 54 x 68.2",
"elements": [
{
"elementID": "Wi-Fi 1 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM",
"LPWA",
"RFID"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-15.5",
"vswr": "~1.5:1",
"efficiency_percent": "~51.5",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-2.9"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-9.1",
"vswr": "~2.3:1",
"efficiency_percent": "~33.6",
"peakGain_dbi": "~2.9",
"averageGain_db": "~-4.8"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 2 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM",
"LPWA",
"RFID"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-13.4",
"vswr": "~1.6:1",
"efficiency_percent": "~49.3",
"peakGain_dbi": "~3.9",
"averageGain_db": "~-3.1"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-9.9",
"vswr": "~2.2:1",
"efficiency_percent": "~30.0",
"peakGain_dbi": "~2.4",
"averageGain_db": "~-5.4"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi 1",
"type": "SMA-Male-RP",
"cableType": "LL100",
"cableLength_mm": 1000
},
{
"elementIDRef": "Wi-Fi 2",
"type": "SMA-Male-RP",
"cableType": "LL100",
"cableLength_mm": 1000
}
]
}
