Experience next-generation wireless connectivity with this heavy-duty, quad 4-in-1 antenna designed for Wi-Fi 6E and Wi-Fi 7 MIMO applications. Engineered for high performance and reliability, it supports a wide frequency range from 2.4 GHz to 7.1 GHz, making it ideal for high-density environments, IoT deployments, smart transportation, and demanding outdoor installations. The robust housing ensures durability, while the ground plane independent design and anti-rotation screw mount provide secure and flexible installation options. With advanced MIMO technology, this antenna delivers exceptional data throughput, reduced interference, and reliable connections for multiple devices.
Connections
4× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Connector & Cable
-
Connector Type: Customizable (standard: LL195 cable, connector not specified)
-
Cable Length: 300cm
-
Cable Type: LL195
Installation / Environmental

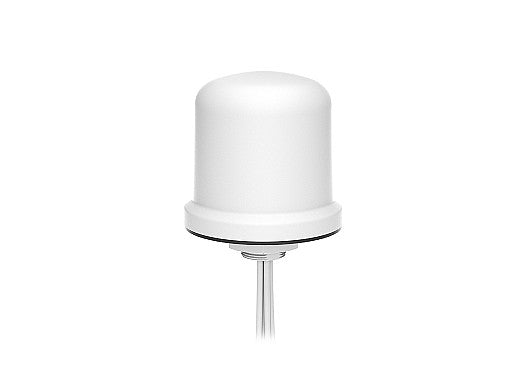

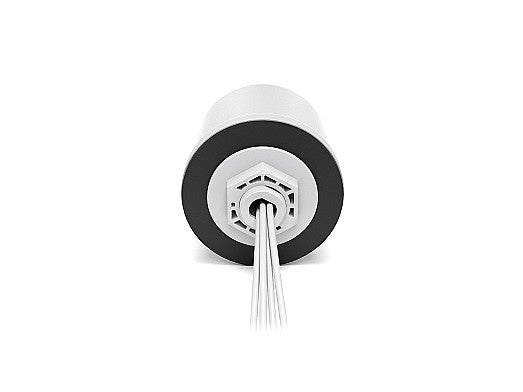

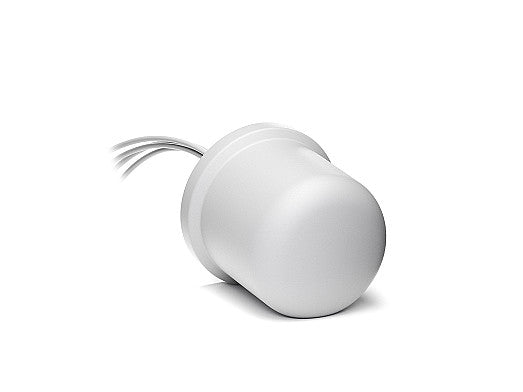

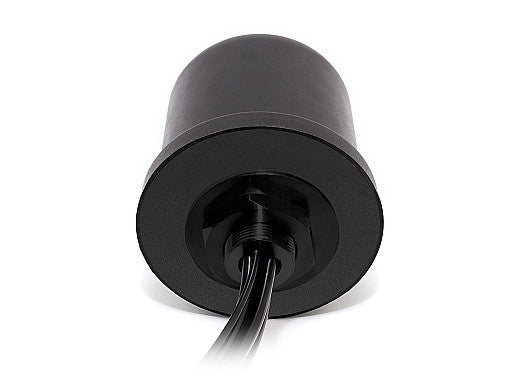

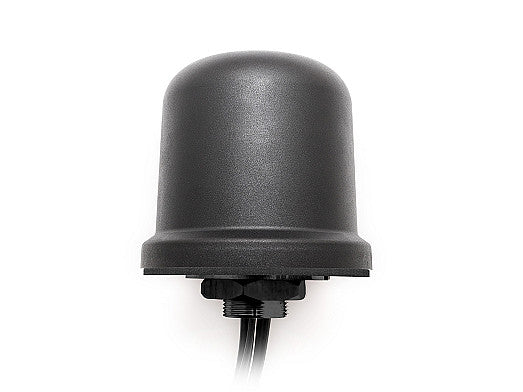

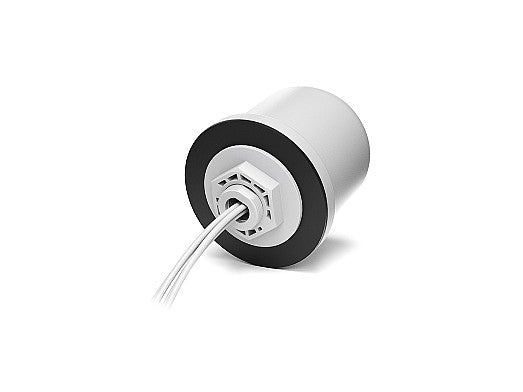

The antenna is manufactured with a lightweight ASA UV stable material that provides durability against moisture without any compromise to performance. This ground plane independent antenna measures only Ø 96 x H 90 mm. Its screw mounting features an anti-rotation allowing for easy and secure permanent installations.
With IP67, IP69, and IK09 ratings, this antenna has full water, dust, and impact resistance, making it ideal for outdoor rugged environments.
All cables are low-loss LL195 that measure 300 cm in length. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs.
All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount
Type: Combination
Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7
Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~2.2:1, ~2.6:1
Efficiency (%): ~46.4, ~40.9, ~33.4
Peak Gain (dBi): ~4.0, ~3.2, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7
Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~2.4:1, ~2.8:1
Efficiency (%): ~46.7, ~40.5, ~33.2
Peak Gain (dBi): ~3.2, ~3.7, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7
Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~2.5:1, ~2.9:1
Efficiency (%): ~48.0, ~38.0, ~32.3
Peak Gain (dBi): ~3.5, ~3.0, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7
Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~2.3:1, ~2.8:1
Efficiency (%): ~48.4, ~40.2, ~31.7
Peak Gain (dBi): ~3.9, ~3.2, ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J7A02Bc",
"title": "Medusa Quad 4-in-1 WIFI 6E / WIFI 7 MIMO Heavy-Duty Screw Mount Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "Ø 96 x H 90",
"elements": [
{
"elementID": "Wi-Fi 1 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-11.0",
"vswr": "~1.8:1",
"efficiency_percent": "~46.4",
"peakGain_dbi": "~4.0",
"averageGain_db": "~-3.3"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-9.3",
"vswr": "~2.2:1",
"efficiency_percent": "~40.9",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-4.2"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-7.6",
"vswr": "~2.6:1",
"efficiency_percent": "~33.4",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-4.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 2 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-11.2",
"vswr": "~1.8:1",
"efficiency_percent": "~46.7",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-3.3"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-8.4",
"vswr": "~2.4:1",
"efficiency_percent": "~40.5",
"peakGain_dbi": "~3.7",
"averageGain_db": "~-4.3"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-7.2",
"vswr": "~2.8:1",
"efficiency_percent": "~33.2",
"peakGain_dbi": "~2.8",
"averageGain_db": "~-4.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 3 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-11.3",
"vswr": "~1.8:1",
"efficiency_percent": "~48.0",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-3.3"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-8.2",
"vswr": "~2.5:1",
"efficiency_percent": "~38.0",
"peakGain_dbi": "~3.0",
"averageGain_db": "~-4.5"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-6.9",
"vswr": "~2.9:1",
"efficiency_percent": "~32.3",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-5.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 4 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-11.4",
"vswr": "~1.8:1",
"efficiency_percent": "~48.4",
"peakGain_dbi": "~3.9",
"averageGain_db": "~-3.3"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-8.8",
"vswr": "~2.3:1",
"efficiency_percent": "~40.2",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-4.3"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-6.9",
"vswr": "~2.8:1",
"efficiency_percent": "~31.7",
"peakGain_dbi": "~3.0",
"averageGain_db": "~-5.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi 1",
"type": "SMA-Male-RP",
"cableType": "LL195",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 2",
"type": "SMA-Male-RP",
"cableType": "LL195",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 3",
"type": "SMA-Male-RP",
"cableType": "LL195",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 4",
"type": "SMA-Male-RP",
"cableType": "LL195",
"cableLength_mm": 3000
}
]
}
