2J  |  SKU: 2JF0202P

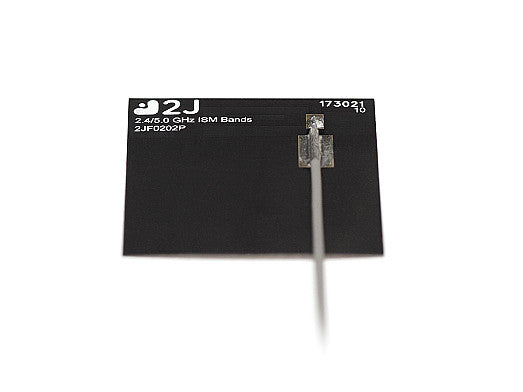

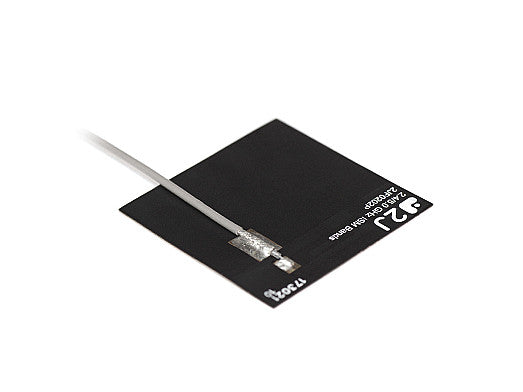

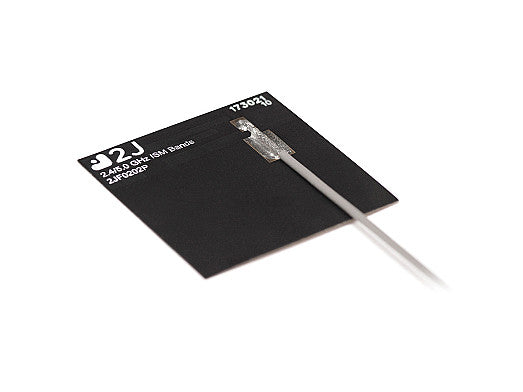

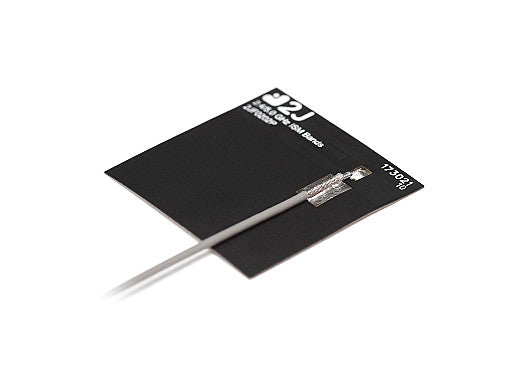

2JF0202P Wi-Fi 6E/7, ISM flexible PCB adhesive Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This ultra-thin, flexible PCB adhesive antenna is designed for high-performance wireless applications across the 2.4, 5.0, and 6.0 GHz ISM bands. It supports Wi-Fi 6E, Wi-Fi 7, Bluetooth, ZigBee, and other ISM protocols, making it ideal for demanding environments where throughput, sensitivity, and reliability are critical. The ground plane independent design and self-adhesive mounting enable easy integration into a wide range of devices, including consumer electronics, robotics, drones, smart home systems, and more. Its compact form factor is perfect for internal installations where space is limited.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
LPWAN & IoT Communication: SigFox, LoRa
Type: Single
Antenna Technologies: Dipole

Connection 1 - Wi-Fi 6E/7, ISM

Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
VSWR: ~1.2:1, ~1.5:1, ~1.8:1
Efficiency (%): ~76.3, ~74.7, ~61.0
Peak Gain (dBi): ~4.4, ~6.7, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0202P", "title": "2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Flexible ultra-thin PCB Adhesive 90° Cable Antenna", "mountingType": "Self-Adhesive (Flexible)", "ipRating": null, "dimensions_mm": "30 × 30 × 0.2", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-20.2", "vswr": "~1.2:1", "efficiency_percent": "~76.3", "peakGain_dbi": "~4.4", "averageGain_db": "~-1.2" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-14.8", "vswr": "~1.5:1", "efficiency_percent": "~74.7", "peakGain_dbi": "~6.7", "averageGain_db": "~-1.3" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-15.2", "vswr": "~1.8:1", "efficiency_percent": "~61.0", "peakGain_dbi": "~5.0", "averageGain_db": "~-1.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "U.FL (Standard)", "cableType": "1.37mm", "cableLength_mm": 100 } ] }
