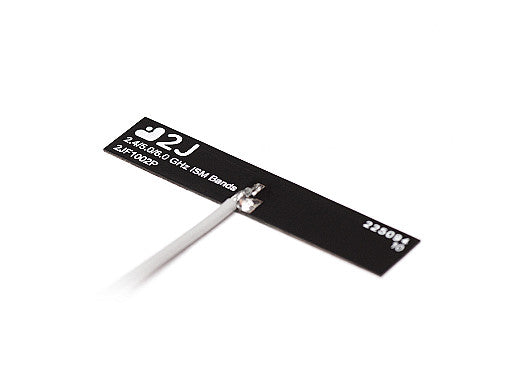

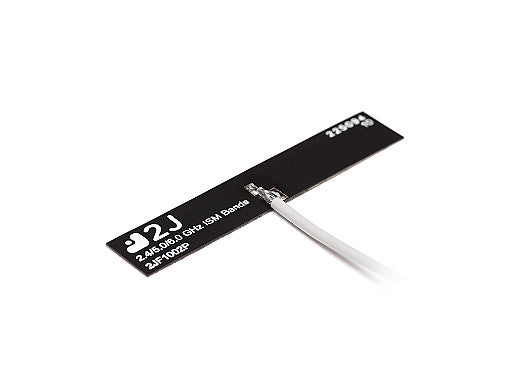

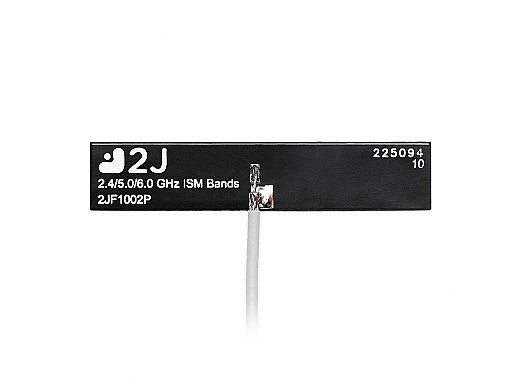

This ultra-thin, flexible PCB adhesive antenna is designed for high-performance wireless applications across Wi-Fi 6E, Wi-Fi 7, and ISM bands. Its compact form factor and ground plane independence make it ideal for integration into space-constrained devices, offering reliable connectivity and high efficiency. The self-adhesive backing ensures easy installation on a variety of surfaces, making it suitable for consumer electronics, robotics, drones, smart home devices, and more. Customizable cable and connector options are available to meet specific integration needs.
Connections
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single
Connection 1 - Wi-Fi 6E/7, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
VSWR: ~1.2:1, ~2.3:1, ~2.4:1
Efficiency (%): ~91.1, ~65.7, ~60.0
Peak Gain (dBi): ~4.2, ~6.1, ~6.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JF1002P",
"title": "2.4/5.0/6.0 GHz WiFi 6E / WiFi 7 ISM Flexible ultra-thin PCB Adhesive Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "40 × 8 × 0.2",
"elements": [
{
"elementID": "Wi-Fi / ISM",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM",
"SigFox",
"LoRa"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-19.3",
"vswr": "~1.2:1",
"efficiency_percent": "~91.1",
"peakGain_dbi": "~4.2",
"averageGain_db": "~-0.4"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-9.5",
"vswr": "~2.3:1",
"efficiency_percent": "~65.7",
"peakGain_dbi": "~6.1",
"averageGain_db": "~-1.9"
},
{
"range_mhz": "5925-7125",
"returnLoss_db": "~-9.3",
"vswr": "~2.4:1",
"efficiency_percent": "~60.0",
"peakGain_dbi": "~6.4",
"averageGain_db": "~-2.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Wi-Fi / ISM",
"type": "U.FL",
"cableType": "1.37mm Coax",
"cableLength_mm": 100
}
]
}
