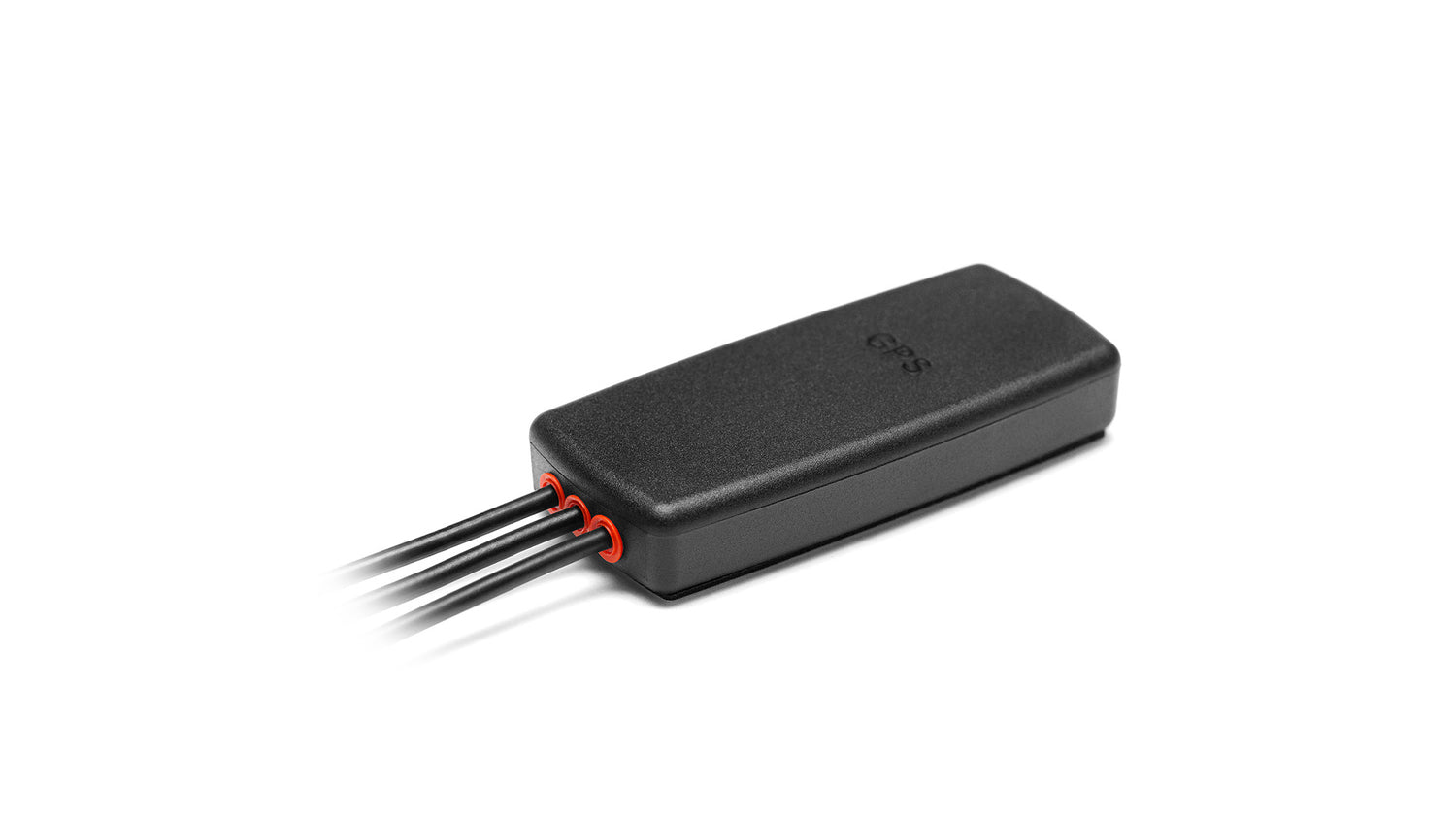

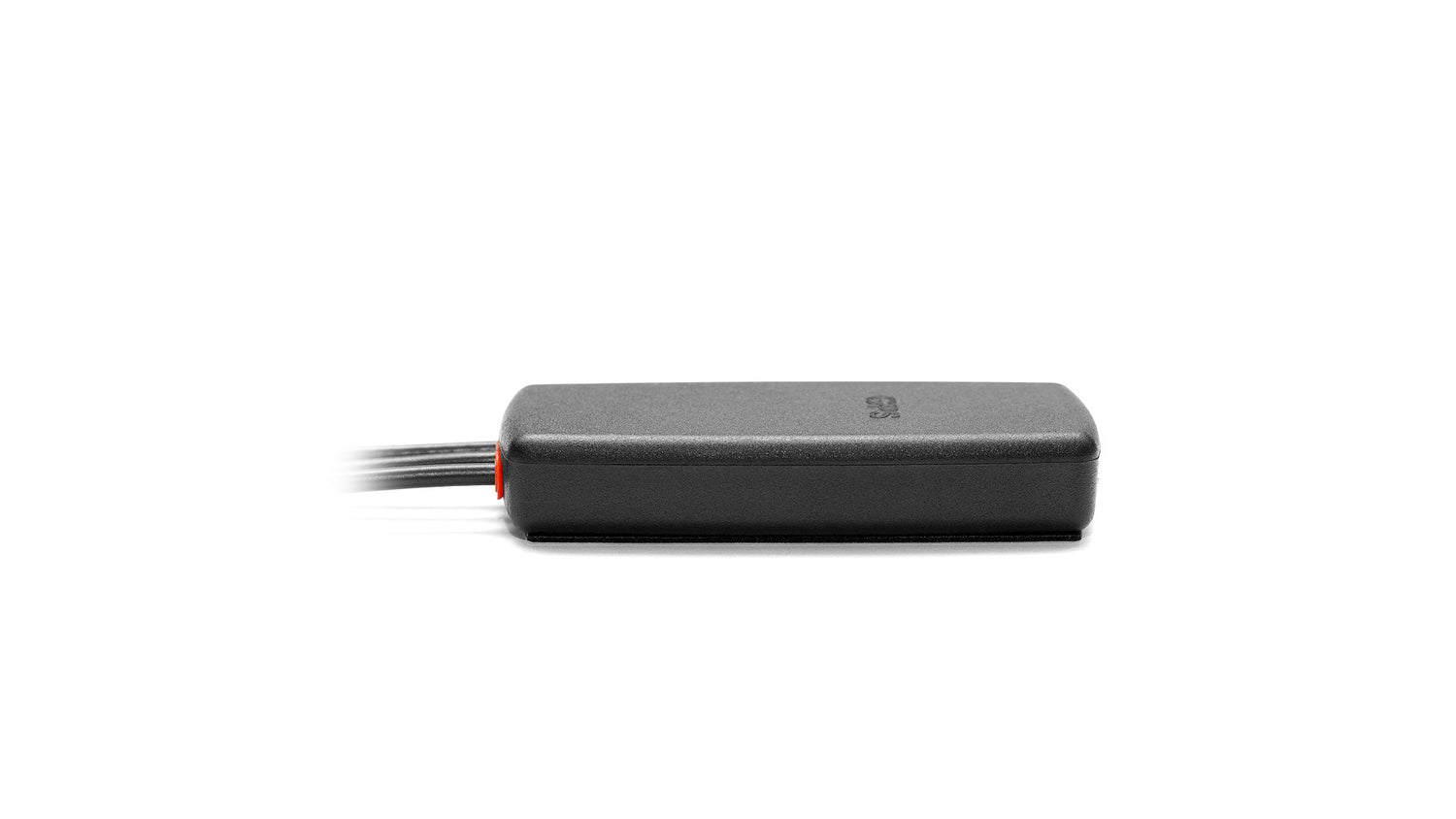

Diese kompakte 3-in-1-Antenne ist für zuverlässige Konnektivität über 4G/LTE Mobilfunk, GNSS Satellitennavigation und 2,4 GHz W-lan/ISM-Bänder ausgelegt. Ihr flaches, bodenunabhängiges Design macht sie ideal für Anwendungen mit begrenztem Platz, wie Asset-Tracking, Telematik, IoT und intelligente Geräte. Die Antenne ist nach IP67 zertifiziert für den robusten Einsatz im Außenbereich oder in der Industrie und unterstützt eine breite Palette drahtloser Standards für vielseitige Integration.
Konnektivitäten
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2,4GHz/W-lan/LPWA/BT/ZigBee/RFID/ISM
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: Multi-Technologie
Mobilfunktechnologien: 4G/LTE
Standort: Extern
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT
Montage: Klebemontage
Satellitennavigation: GNSS
Kurzstrecken-Drahtlosstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 77 × 34 × 14 mm
Konnektivität 1 - Mobilfunk/4G LTE
Standards: 2G, 3G, 4G
Frequenz: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2,5:1, ~1,6:1, ~1,5:1
Effizienz (%): ~29,6, ~27,0, ~18,9
Spitzenverstärkung (dBi): ~2,4, ~2,2, ~2,1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 2 - 2,4 GHz ISM
Standards: W-lan, BT, ZigBee, ISM
Frequenz: 2410-2490 MHz
VSWR: ~1,8:1
Effizienz (%): ~21,6
Spitzenverstärkung (dBi): ~-2,8
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 3 - GPS/GLONASS
Standards: GPS, QZSS, Galileo, GLONASS
Frequenz: 1575,42, 1598-1606 MHz
VSWR: ≤1,4:1
Impedanz (Ohm): 50
Polarisation: RHCP
Aktive Verstärkung (dB): 28 @ 2,7 V
Sägefiltertyp: Vorfilter
Spannung (V): 1,5 - 3,6
Rauschzahl (dB): 1,5 Typ
Stromaufnahme (mA): 9 Typ
Leistungsaufnahme (mW): 24,3 Typ
ESD-Schutz (kV): 2
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J4250PGF-2.4","title":"CELLULAR/LTE, 2,4 GHz ISM und GNSS Klebemontage Antenne","mountingType":"Klebemontage","ipRating":"IP67","dimensions_mm":"77 × 34 × 14","elements":[{"elementID":"Cellular","type":"Cellular","technologies":["4G LTE","3G","2G","FirstNet","LPWA","NB-IoT","Cat-X-Mx-NBx"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":"~-7.6","vswr":"~2.5:1","efficiency_percent":"~29.6","peakGain_dbi":"~2.4","averageGain_db":"~-5.5"},{"range_mhz":"1710-2170","returnLoss_db":"~-13.1","vswr":"~1.6:1","efficiency_percent":"~27.0","peakGain_dbi":"~2.2","averageGain_db":"~-5.7"},{"range_mhz":"2500-2700","returnLoss_db":"~-15.4","vswr":"~1.5:1","efficiency_percent":"~18.9","peakGain_dbi":"~2.1","averageGain_db":"~-7.2"}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"ISM 2.4 GHz","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-12.5","vswr":"~1.8:1","efficiency_percent":"~21.6","peakGain_dbi":"~-2.8","averageGain_db":"~-7.6"}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"GNSS","type":"GNSS","technologies":["GPS","GLONASS","Galileo","QZSS"],"frequencies":[{"range_mhz":"1575.42","returnLoss_db":"\u003C=-15.0","vswr":"\u003C=1.4:1","efficiency_percent":null,"peakGain_dbi":"~28","averageGain_db":null},{"range_mhz":"1598-1606","returnLoss_db":"\u003C=-15.0","vswr":"\u003C=1.4:1","efficiency_percent":null,"peakGain_dbi":"~28","averageGain_db":null}],"polarization":"RHCP","radiationPattern":"Halbkugelförmig","impedance_ohms":50,"maxInputPower_w":null}],"connectors":[{"elementIDRef":"Cellular","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"ISM 2.4 GHz","type":"RP-SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"GNSS","type":"SMA-Male","cableType":"LL100","cableLength_mm":2000}]}
