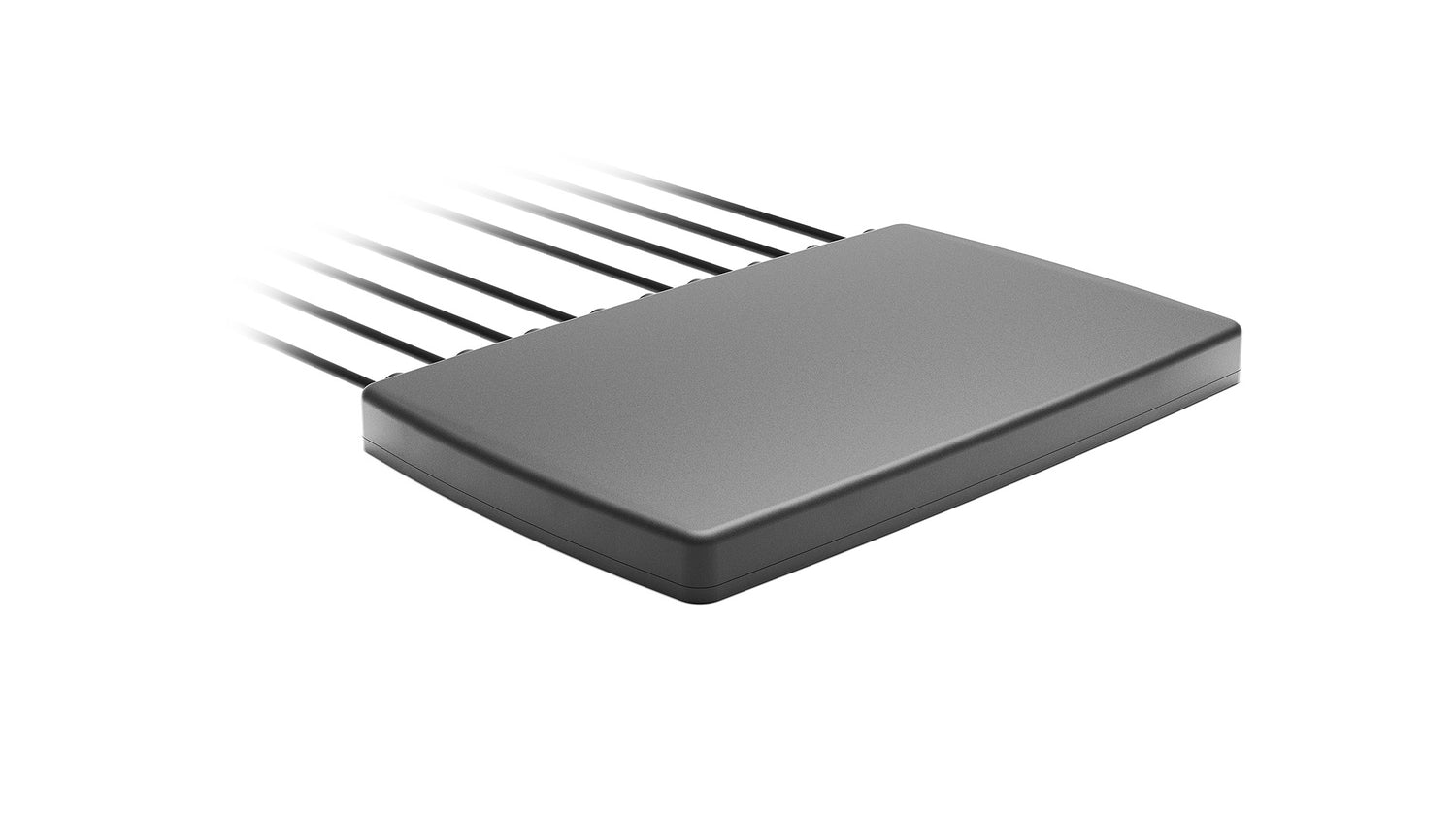

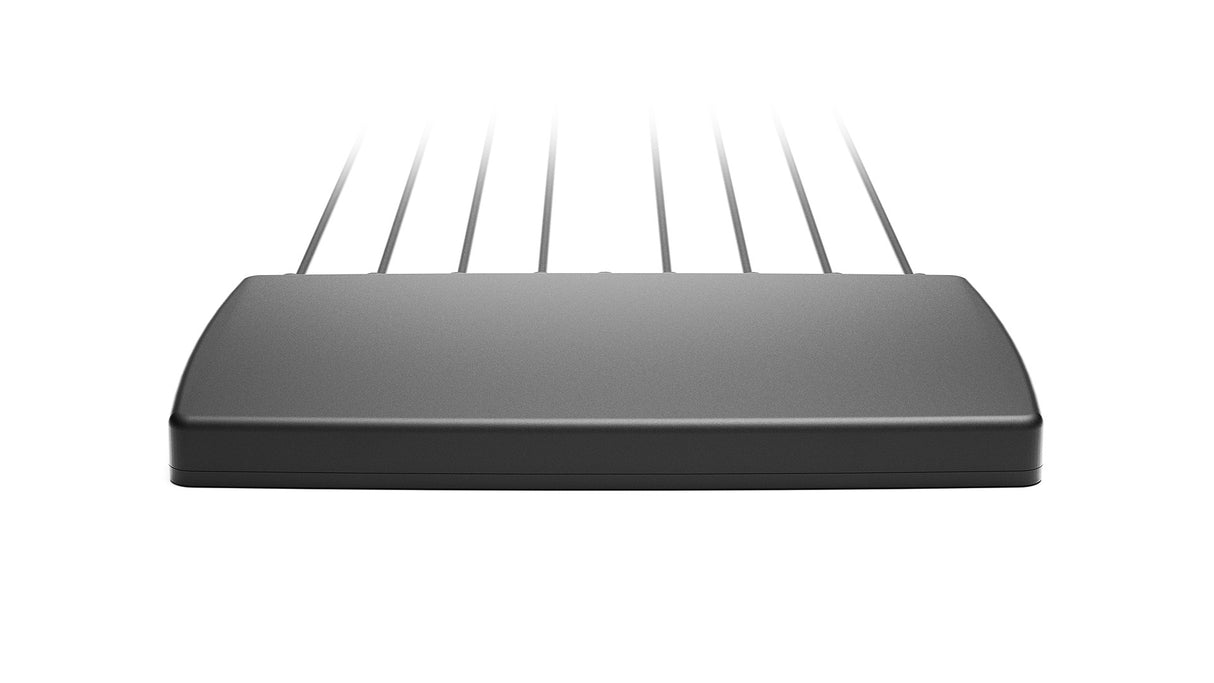

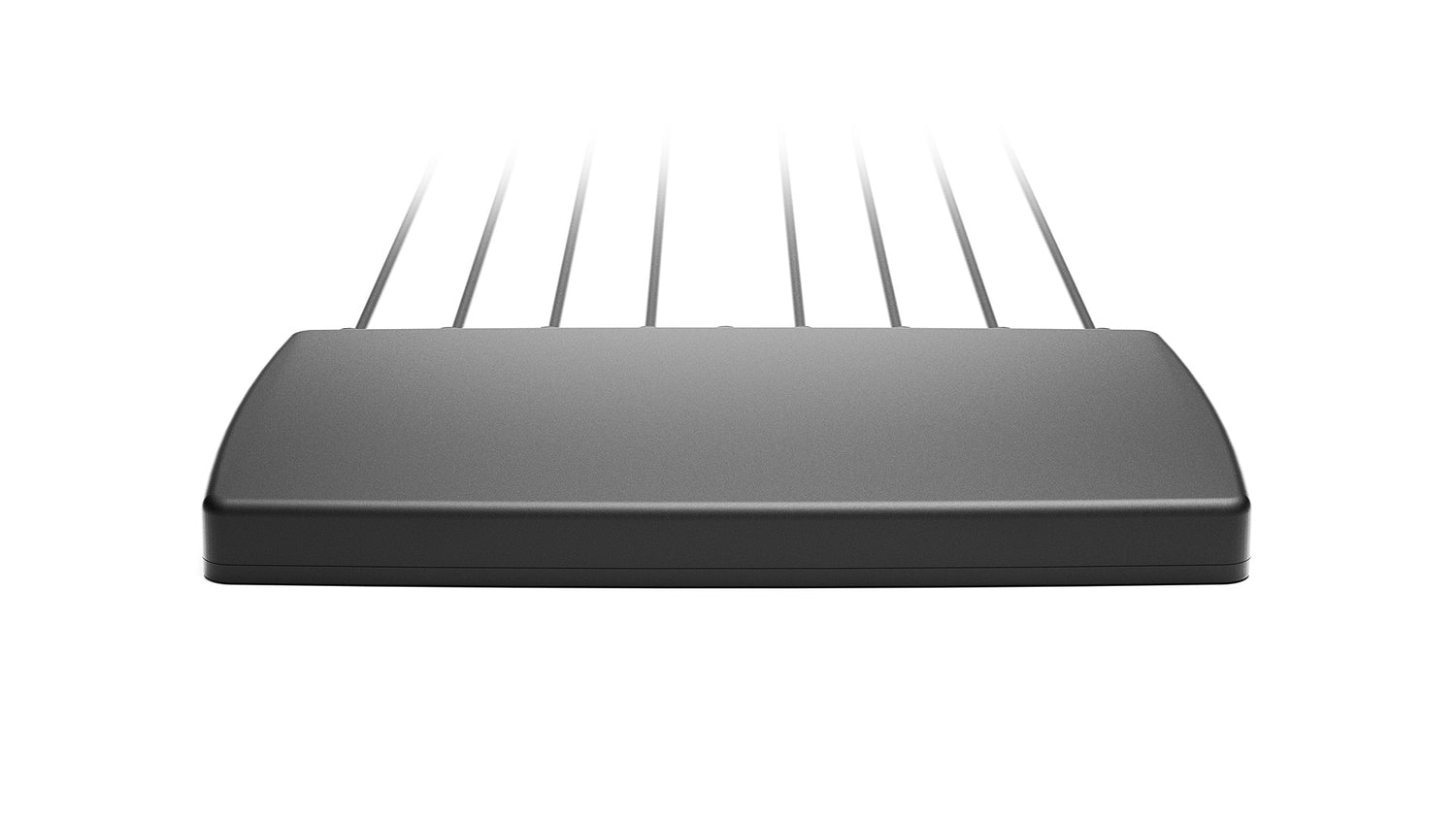

Diese ultrakompakte 8-in-1-Antenne bietet Hochleistungs-Konnektivität für 5GNR- und W-lan 6E/7-Anwendungen und unterstützt einen weiten Frequenzbereich von 617 MHz bis 7125 MHz. Ihr flaches, bodenflächenunabhängiges Design ist ideal für Installationen mit begrenztem Platzangebot und gewährleistet gleichzeitig eine robuste Signalqualität und Effizienz. Die Antenne ist für anspruchsvolle Umgebungen konzipiert und bietet IP67/IP69-Schutz sowie ein UV-stabiles Gehäuse für langfristige Haltbarkeit. Perfekt für drahtloses Breitband, private Netzwerke, kritische Kommunikation, Transport, Automobilbereich und industrielle IoT-Anwendungen.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
4× 2,4-5,0-6,0 GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Stecker & Kabel
-
Steckertyp: SMA-M/RPSMA-M
-
Kabellänge: 300 cm
-
Kabeltyp: D302
Installation / Umwelt

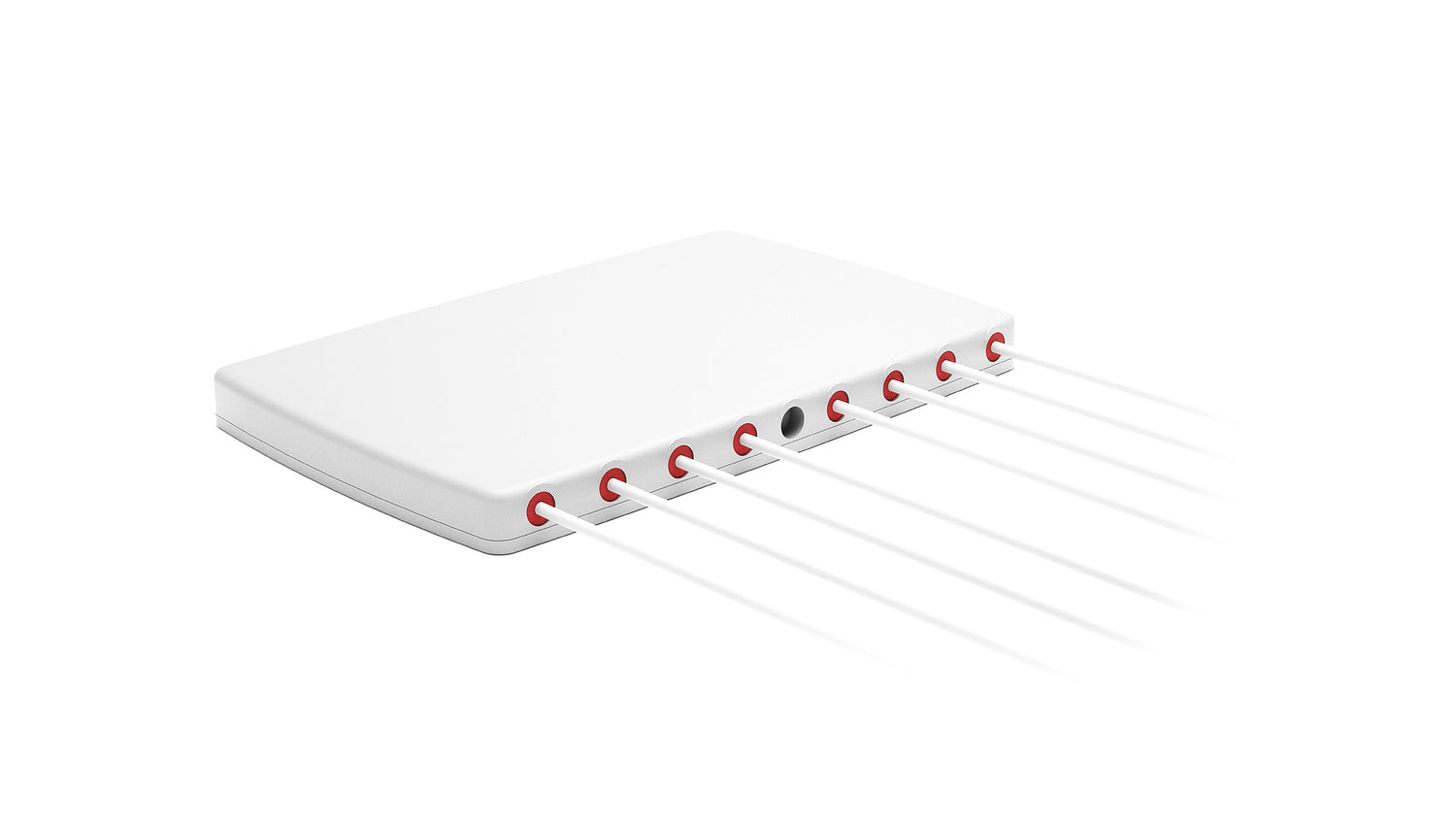

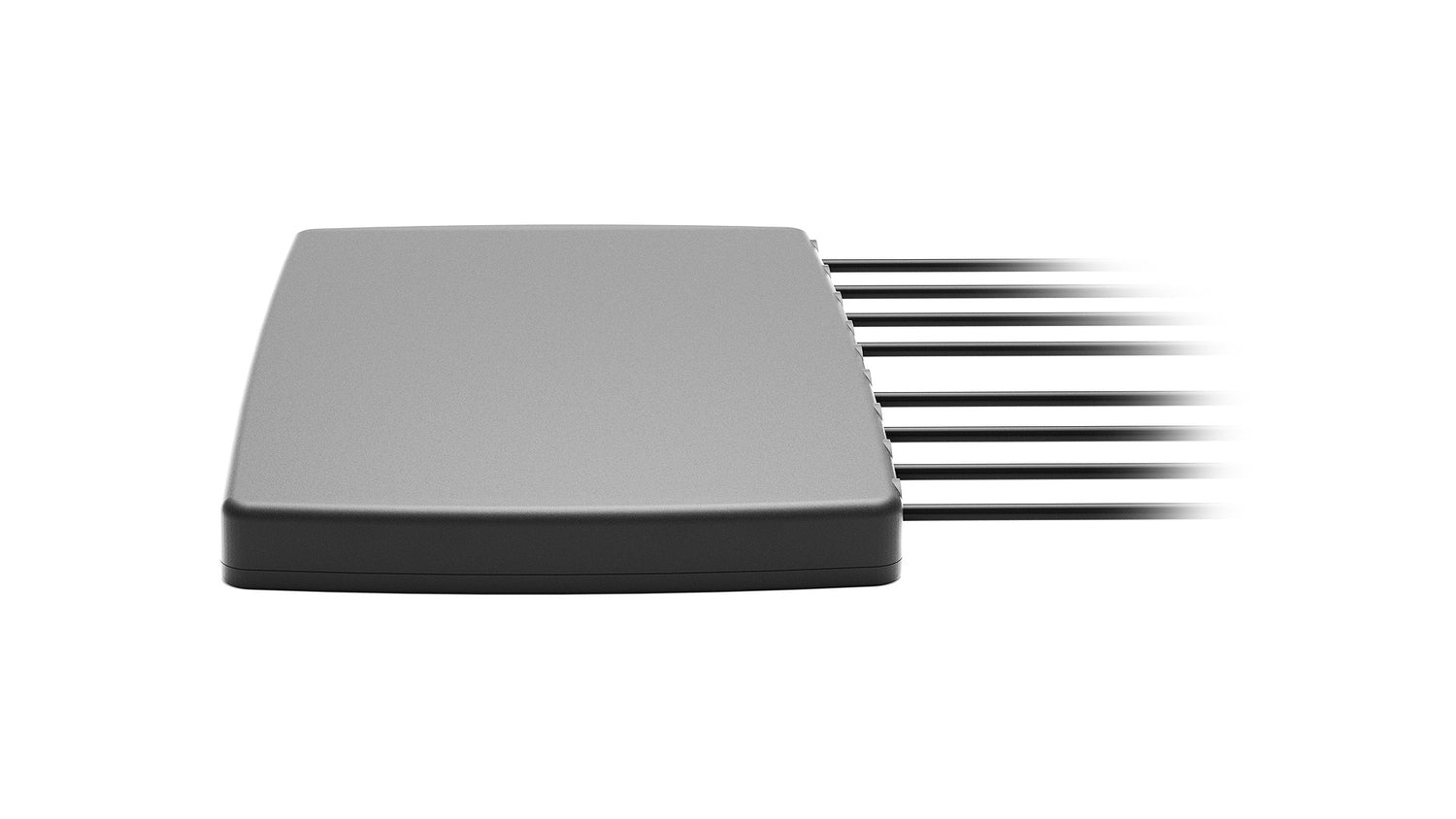

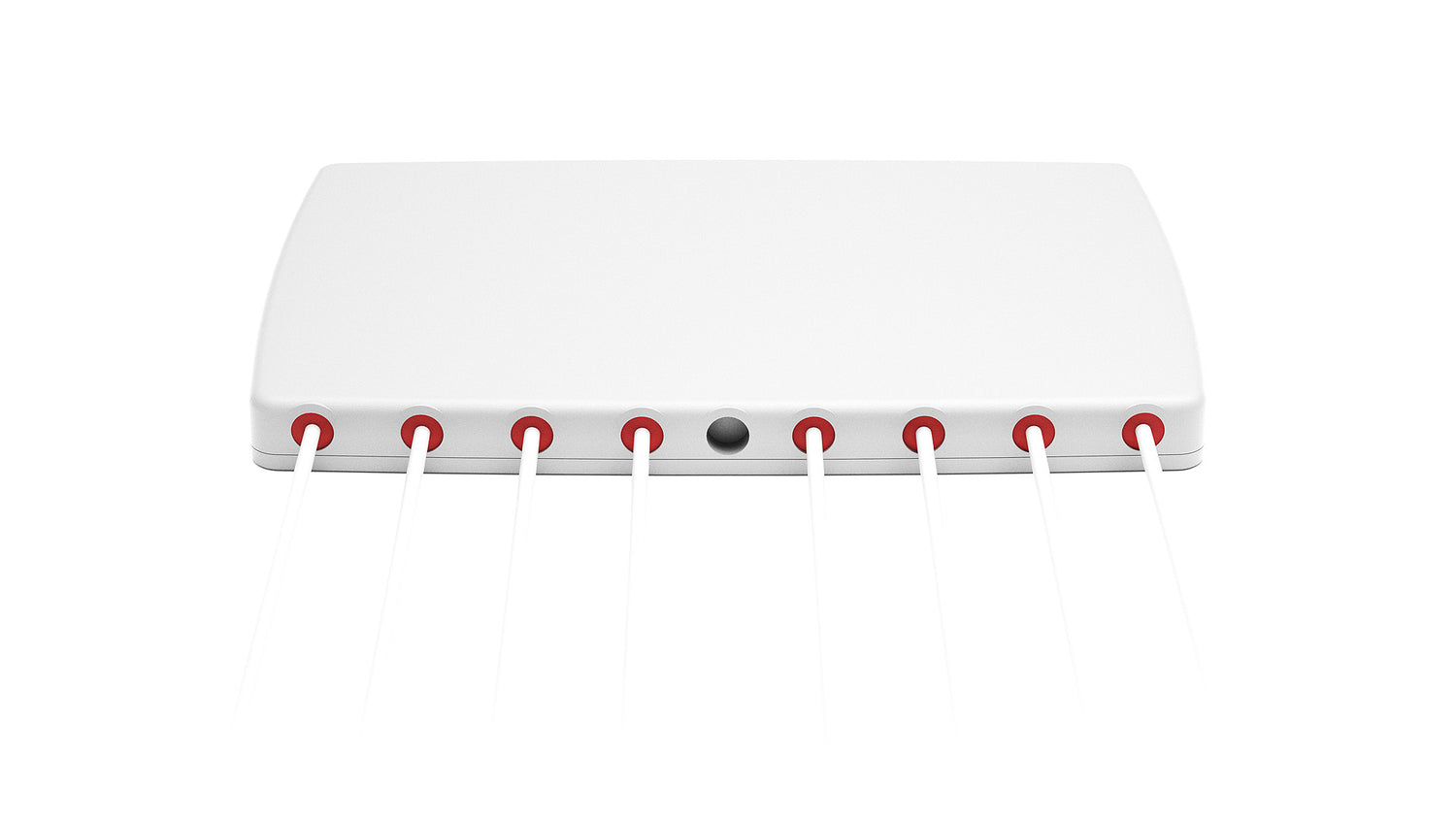

Diese bodenflächenunabhängige Antenne kann mit einer einfach abziehbaren Klebemontage auf jeder Art von nichtmetallischer Oberfläche installiert werden, was sie ideal für temporäre Installationen macht. Das flache Gehäuse misst nur 198 x 127 x 15,7 mm und ist damit 55 % kleiner als jede andere Antenne auf dem Markt. Hergestellt aus ASA UV-stabilem Material und mit voller IP67/IP69-Zertifizierung bietet sie Haltbarkeit und den höchsten Schutz gegen Wasser und Feuchtigkeit. Diese Antenne ist in Schwarz oder Weiß erhältlich.

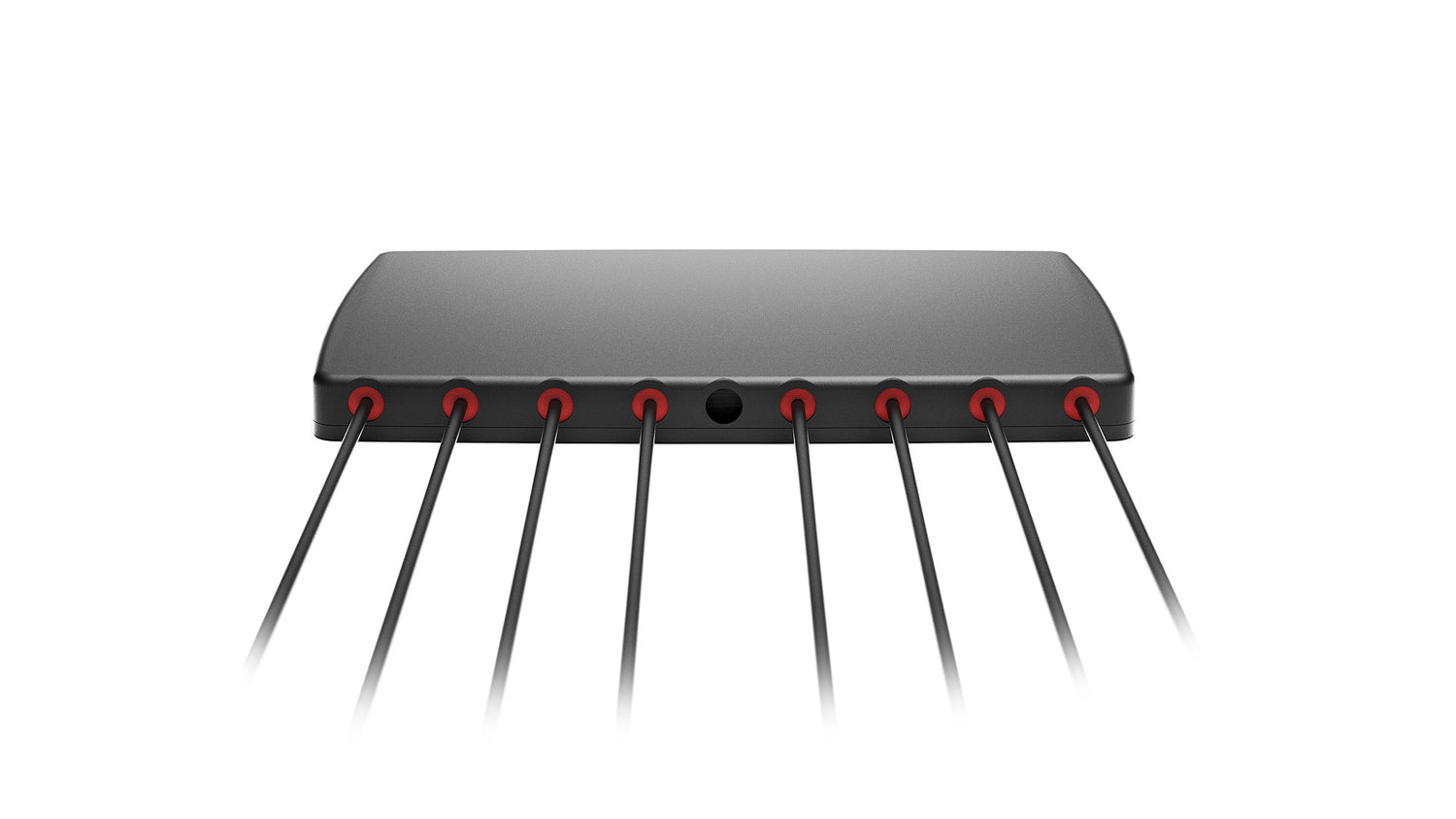

2J4H85Pe-Konnektivitäten sind standardmäßig SMA-Stecker (5GNR)/ SMA-Stecker-RP (W-lan 6E / W-lan 7 ISM) und werden mit 300 cm langen D302-Kabeln (5GNR/W-lan 6E / W-lan 7 ISM) geliefert. Alle Kabel führen von einer Seite des Antennengehäuses und sind für optimale Leistung abgestimmt. Wir bieten eine breite Palette alternativer Stecker und Kabel, um alle Anpassungswünsche zu erfüllen. Bitte kontaktieren Sie unsere hochqualifizierten Ingenieure für Unterstützung bei der Antennenauswahl oder individuellen Anforderungen.
Technische Daten
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN- & IoT-Kommunikation: SigFox, LoRa, LPWA, NB-IoT
Montage: Klebemontage
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination

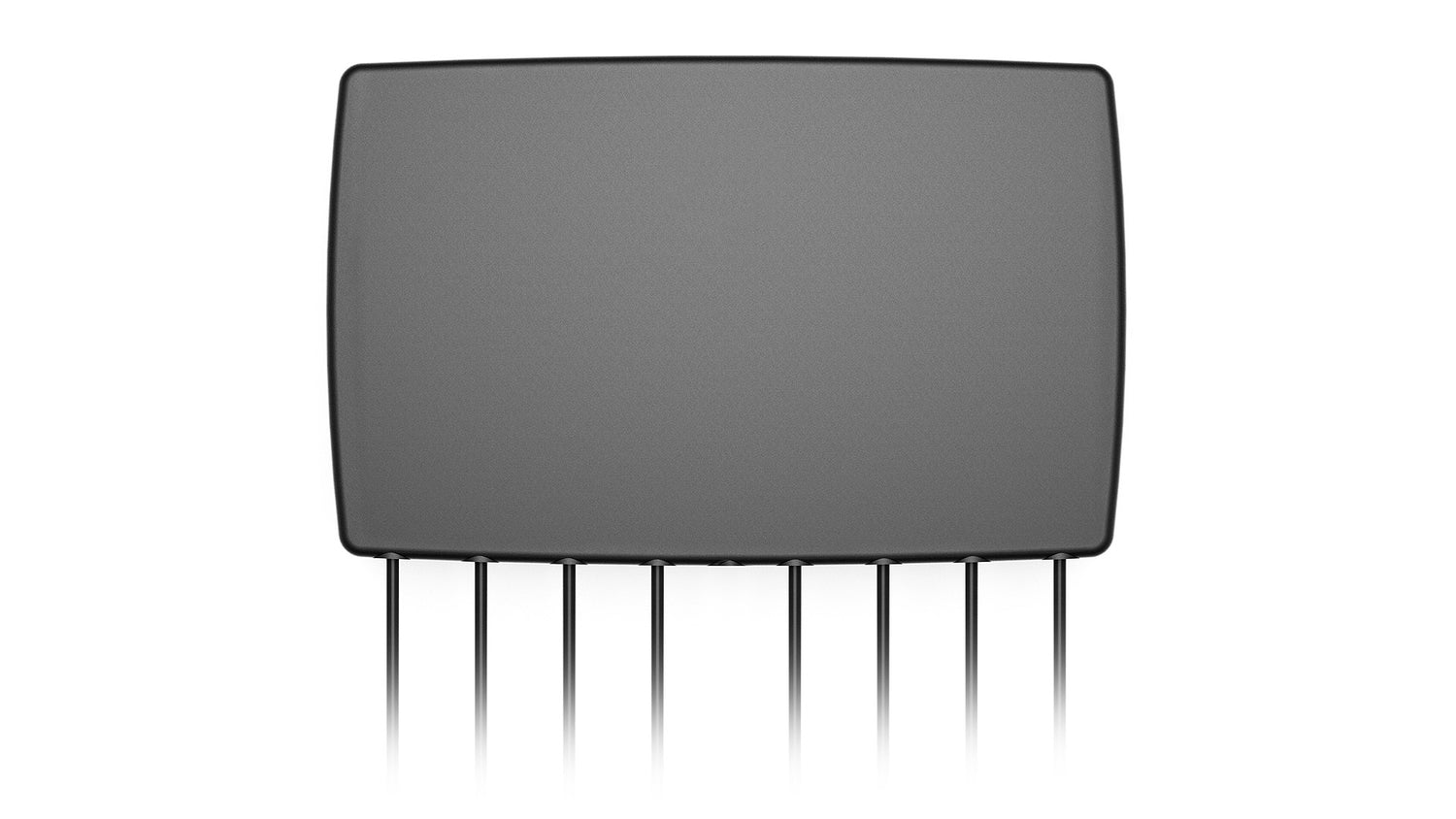

Abmessungen: 198 × 127 × 15,7 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-13,2 bis ~-16,8
VSWR: ~1,5:1 bis ~1,8:1
Effizienz (%): ~44,0 bis ~57,1
Spitzenverstärkung (dBi): ~0,9 bis ~4,5
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungscharakteristik: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 2,4/5,0/6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,3:1 bis ~1,9:1
Effizienz (%): ~20,2 bis ~47,2
Spitzenverstärkung (dBi): ~2,3 bis ~6,0
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J4H85Pe","title":"Stellar 8-in-1 4x 5GNR MIMO, 4x W-lan 6E / W-lan 7 MIMO Klebemontage Antenne","mountingType":"Klebemontage","ipRating":"IP67/IP69","dimensions_mm":"198 × 127 × 15.7","elements":[{"elementID":"Cellular 1 (MIMO)","type":"Cellular","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-13.2","vswr":"~1.6:1","efficiency_percent":"~55.2","peakGain_dbi":"~3.1","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-15.7","vswr":"~1.6:1","efficiency_percent":"~46.9","peakGain_dbi":"~4.5","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-12.6","vswr":"~1.7:1","efficiency_percent":"~30.4","peakGain_dbi":"~2.0","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-11.6","vswr":"~1.8:1","efficiency_percent":"~26.3","peakGain_dbi":"~0.9","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Cellular 2 (MIMO)","type":"Cellular","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-14.6","vswr":"~1.5:1","efficiency_percent":"~55.1","peakGain_dbi":"~3.3","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-15.4","vswr":"~1.5:1","efficiency_percent":"~46.9","peakGain_dbi":"~4.1","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-15.6","vswr":"~1.5:1","efficiency_percent":"~35.5","peakGain_dbi":"~3.2","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-15.7","vswr":"~1.4:1","efficiency_percent":"~34.0","peakGain_dbi":"~2.9","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Cellular 3 (MIMO)","type":"Cellular","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-15.4","vswr":"~1.5:1","efficiency_percent":"~55.3","peakGain_dbi":"~3.5","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-14.3","vswr":"~1.6:1","efficiency_percent":"~44.0","peakGain_dbi":"~3.4","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-13.7","vswr":"~1.7:1","efficiency_percent":"~29.7","peakGain_dbi":"~2.6","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-13.0","vswr":"~1.7:1","efficiency_percent":"~27.5","peakGain_dbi":"~3.1","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Cellular 4 (MIMO)","type":"Cellular","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-15.2","vswr":"~1.5:1","efficiency_percent":"~57.1","peakGain_dbi":"~3.4","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-16.8","vswr":"~1.4:1","efficiency_percent":"~48.4","peakGain_dbi":"~4.5","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-13.9","vswr":"~1.6:1","efficiency_percent":"~30.4","peakGain_dbi":"~2.5","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-12.5","vswr":"~1.7:1","efficiency_percent":"~25.1","peakGain_dbi":"~1.2","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Wi-Fi 1 (MIMO)","type":"W-lan","technologies":["W-lan 6E","W-lan 7","Bluetooth","ZigBee","ISM","SigFox","LoRa","RFID"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":null,"vswr":"~1.6:1","efficiency_percent":"~30.8","peakGain_dbi":"~4.5","averageGain_db":null},{"range_mhz":"4920-5925","returnLoss_db":null,"vswr":"~1.5:1","efficiency_percent":"~20.2","peakGain_dbi":"~3.1","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":null,"vswr":"~1.6:1","efficiency_percent":"~47.2","peakGain_dbi":"~3.8","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Wi-Fi 2 (MIMO)","type":"W-lan","technologies":["W-lan 6E","W-lan 7","Bluetooth","ZigBee","ISM","SigFox","LoRa","RFID"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":null,"vswr":"~1.9:1","efficiency_percent":"~37.6","peakGain_dbi":"~6.0","averageGain_db":null},{"range_mhz":"4920-5925","returnLoss_db":null,"vswr":"~1.7:1","efficiency_percent":"~23.0","peakGain_dbi":"~5.0","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":null,"vswr":"~1.9:1","efficiency_percent":"~42.3","peakGain_dbi":"~3.0","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Wi-Fi 3 (MIMO)","type":"W-lan","technologies":["W-lan 6E","W-lan 7","Bluetooth","ZigBee","ISM","SigFox","LoRa","RFID"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":null,"vswr":"~1.3:1","efficiency_percent":"~38.2","peakGain_dbi":"~3.7","averageGain_db":null},{"range_mhz":"4920-5925","returnLoss_db":null,"vswr":"~1.6:1","efficiency_percent":"~34.3","peakGain_dbi":"~2.3","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":null,"vswr":"~1.6:1","efficiency_percent":"~44.4","peakGain_dbi":"~3.1","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Wi-Fi 4 (MIMO)","type":"W-lan","technologies":["W-lan 6E","W-lan 7","Bluetooth","ZigBee","ISM","SigFox","LoRa","RFID"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":null,"vswr":"~1.4:1","efficiency_percent":"~36.3","peakGain_dbi":"~4.4","averageGain_db":null},{"range_mhz":"4920-5925","returnLoss_db":null,"vswr":"~1.5:1","efficiency_percent":"~28.4","peakGain_dbi":"~2.6","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":null,"vswr":"~1.5:1","efficiency_percent":"~39.4","peakGain_dbi":"~3.1","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Cellular 1","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Cellular 2","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Cellular 3","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Cellular 4","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Wi-Fi 1","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Wi-Fi 2","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Wi-Fi 3","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000},{"elementIDRef":"Wi-Fi 4","type":"SMA-Male","cableType":"LL100","cableLength_mm":3000}]}
