Diese ultrakompakte 8-in-1 Antenne mit magnetischer Halterung bietet leistungsstarke Konnektivität für 5G, W-lan 6E/7, ISM und GNSS-Anwendungen. Ihr flaches Design ist 55 % kleiner als vergleichbare Lösungen und ideal für Installationen mit begrenztem Platz. Entwickelt für überlegene Signalstärke und Zuverlässigkeit unterstützt sie MIMO-Betrieb für Mobilfunk und W-lan und gewährleistet robuste Datenübertragung und konsistente Abdeckung. Die Antenne eignet sich für anspruchsvolle Umgebungen und eine breite Palette von Anwendungen, einschließlich öffentlicher Sicherheit, Transport, industrielles IoT, Automobil und kommerzielle Einsätze.
- Ultrabreitband-Abdeckung: 617 MHz – 7125 MHz
- Bodenunabhängig für flexible Installation
- Aktives GNSS mit Vorfilter und ESD-Schutz
- IP67/IP69 zertifiziert für maximale Haltbarkeit
- Erhältlich in Schwarz oder Weiß
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
3× 2,4-5,0-6,0GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Stecker & Kabel
-
Steckertyp: SMA-Stecker (5GNR & GNSS), RPSMA-Stecker (W-lan 6E/7 ISM)
-
Kabellänge: 300cm
-
Kabeltyp: D302 (5GNR/W-lan 6E/7 ISM), LL100 (GNSS)
Installation / Umwelt

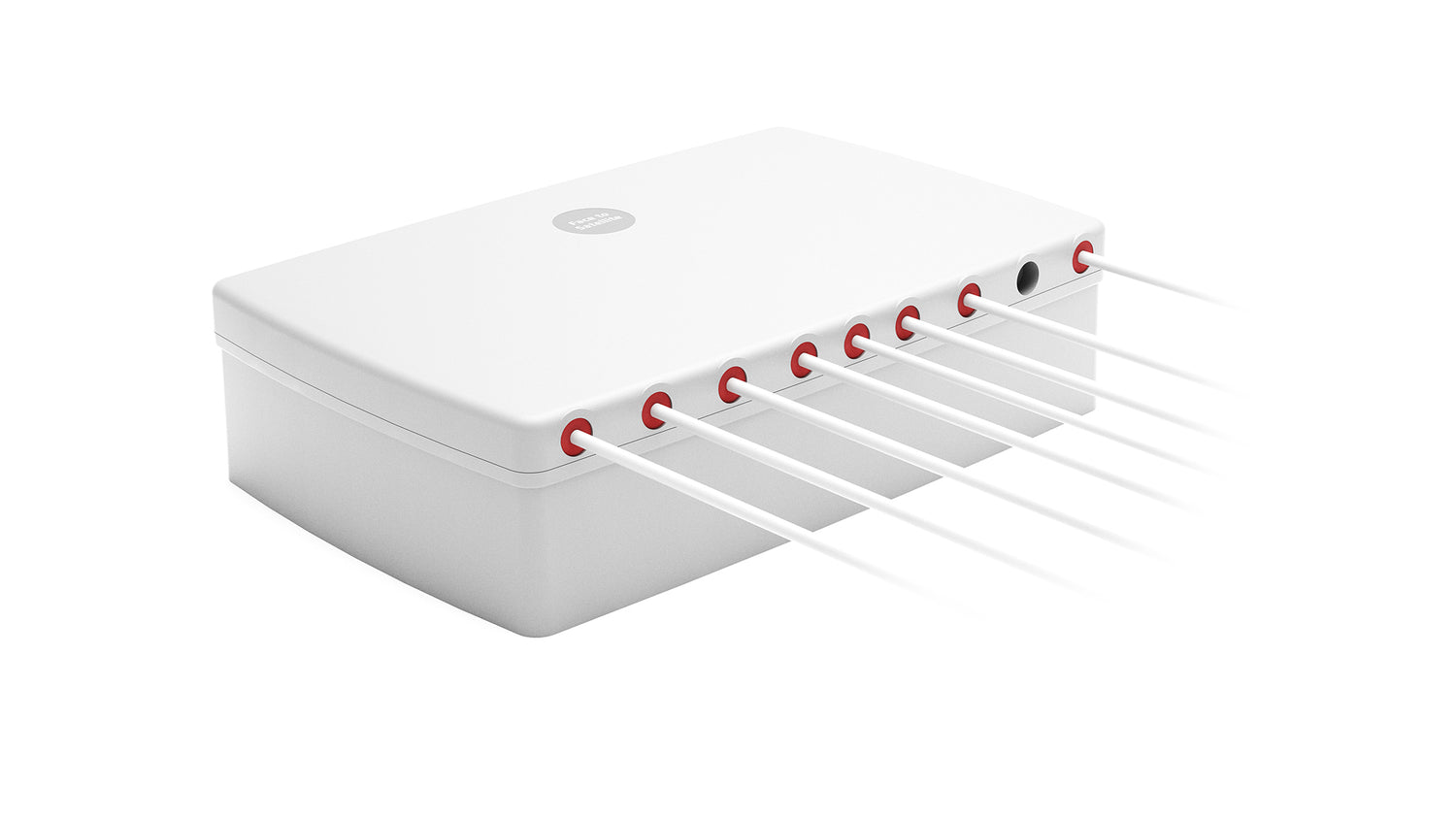

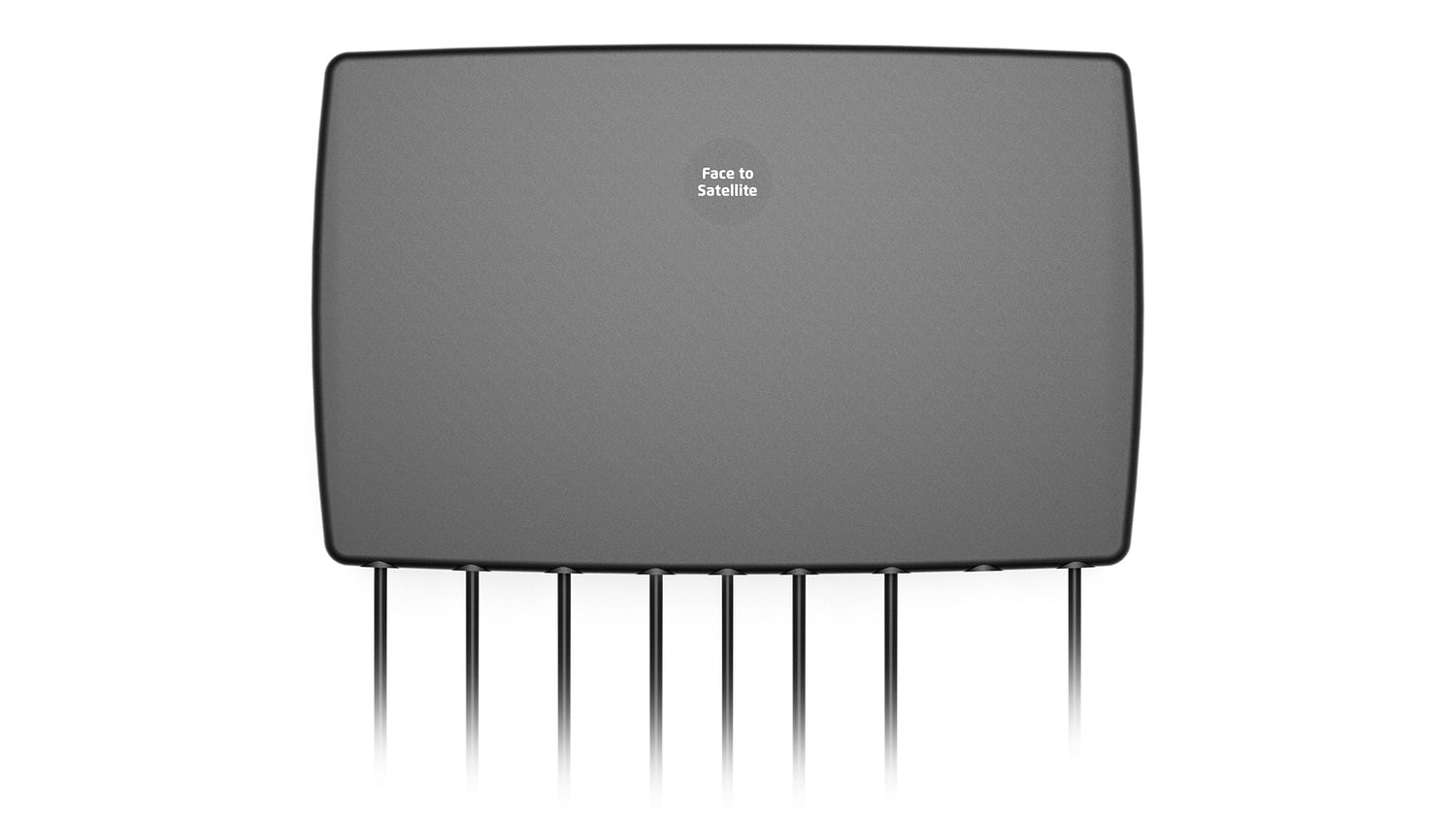

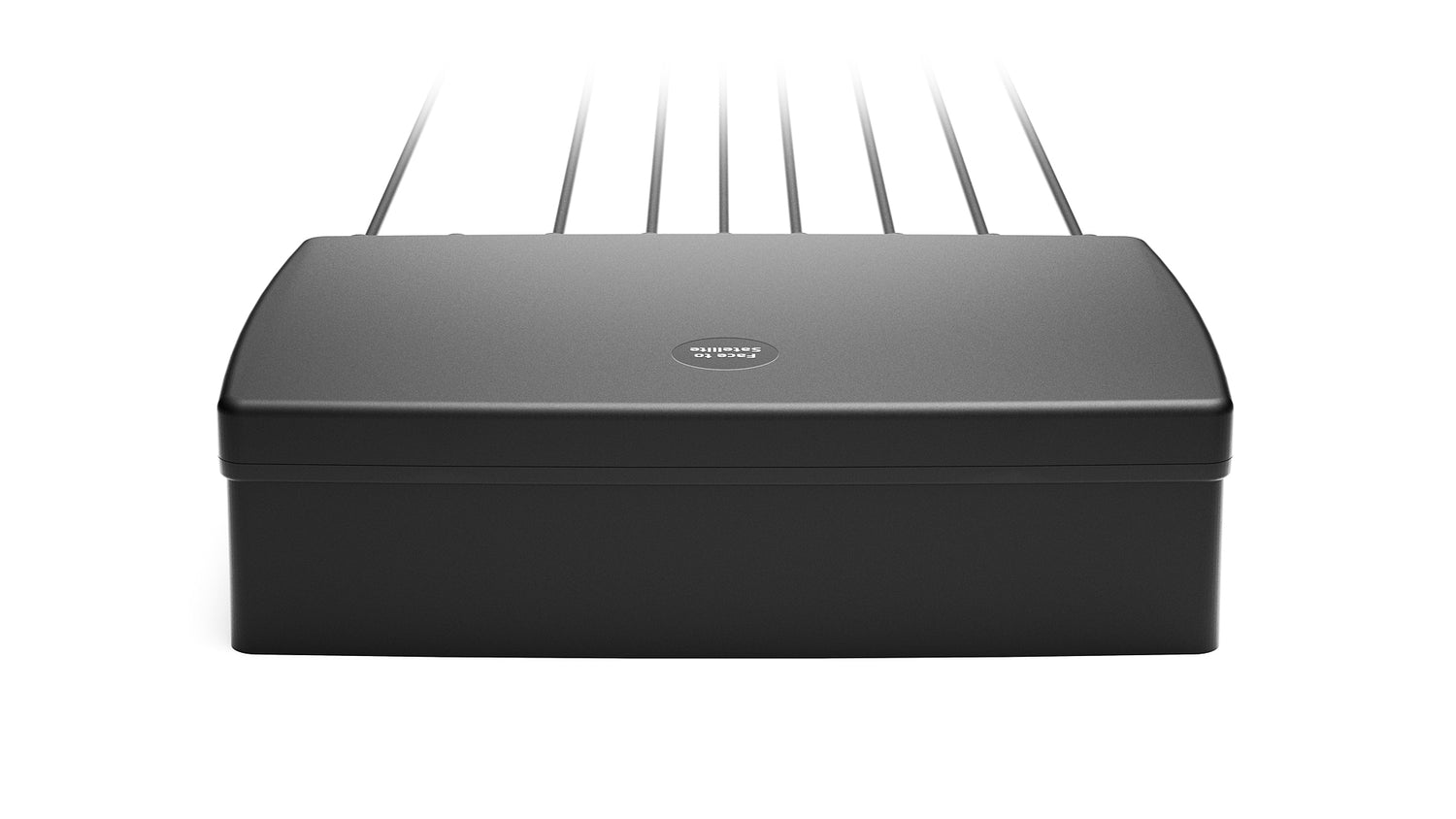

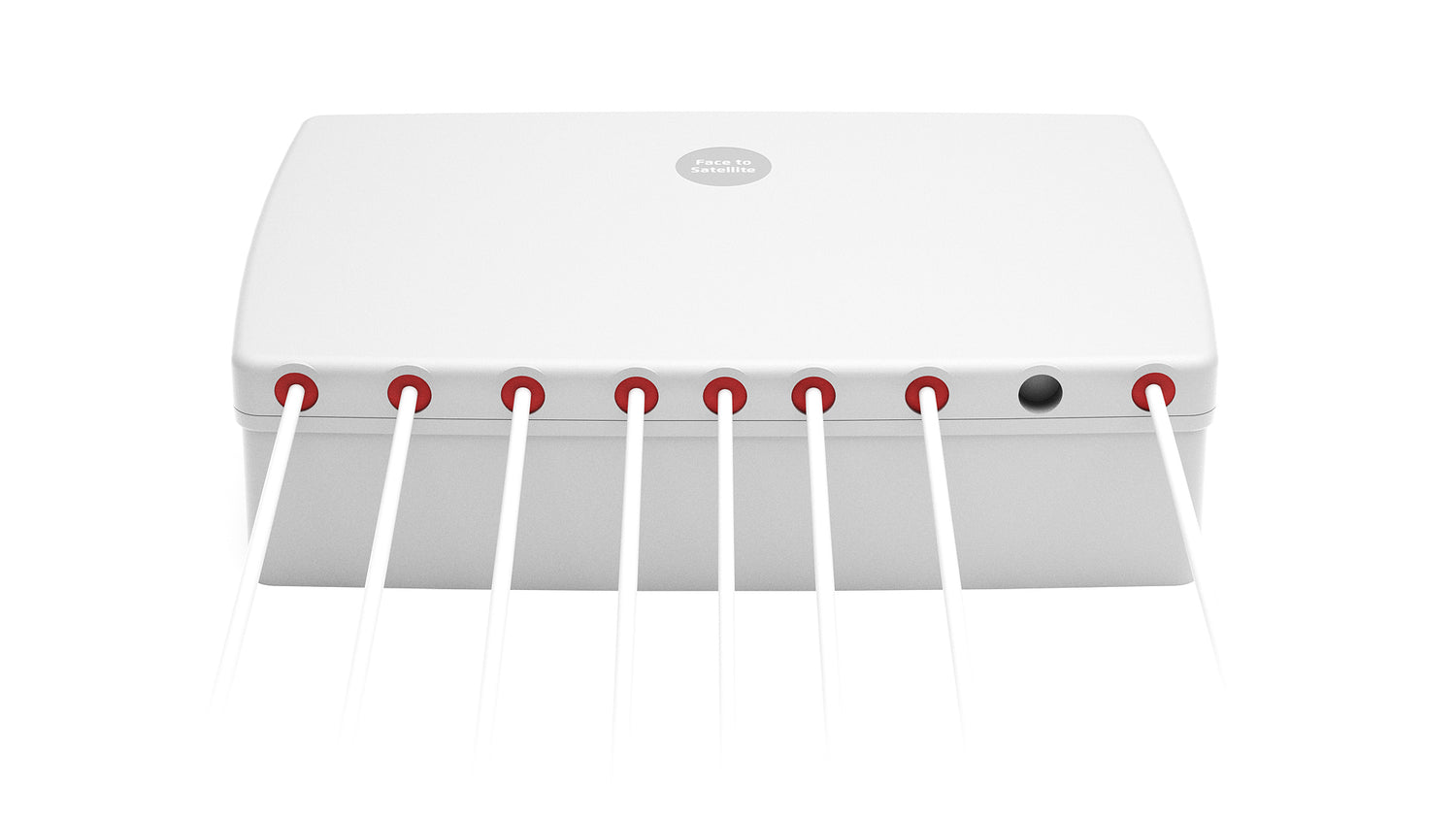

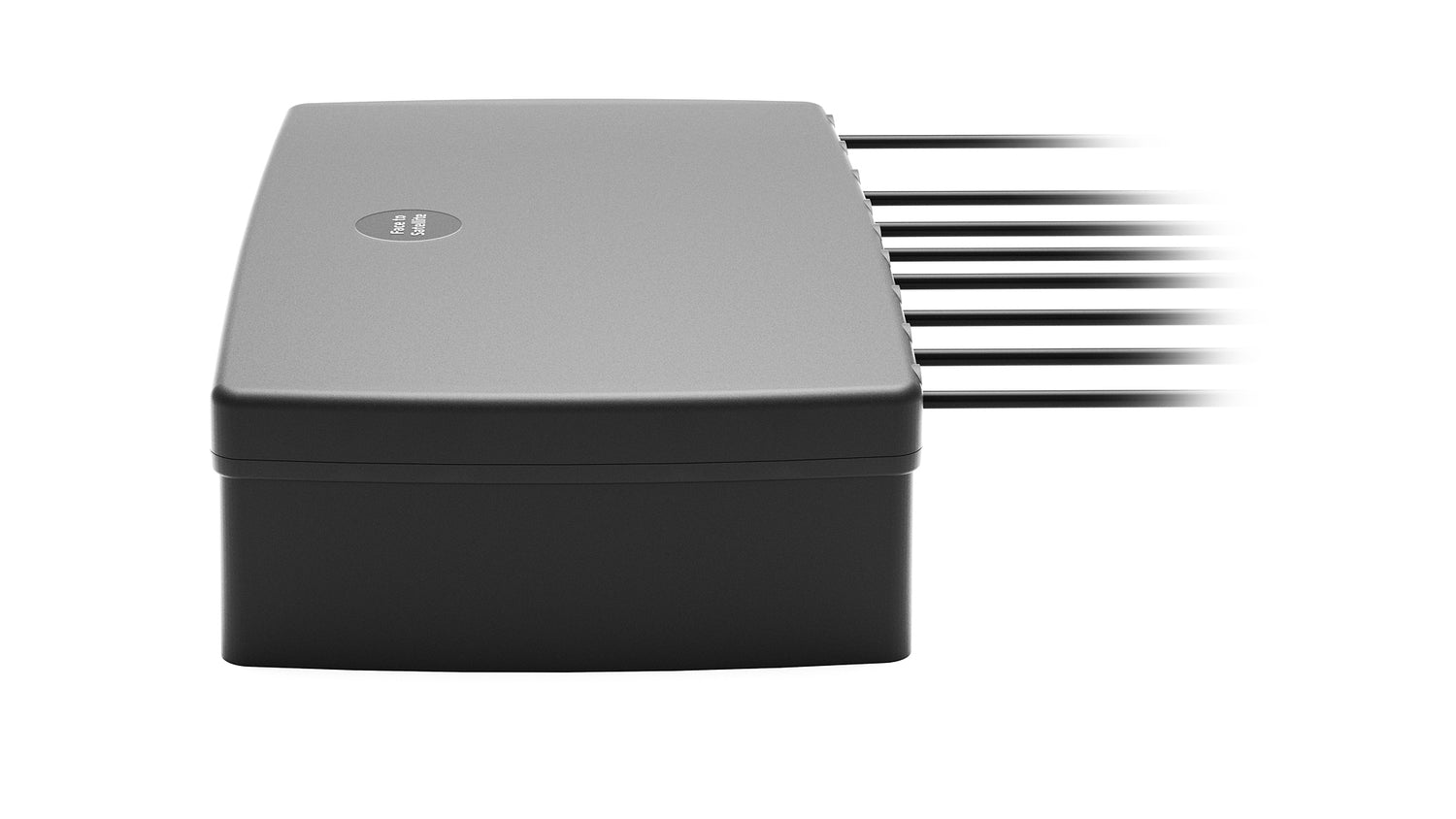

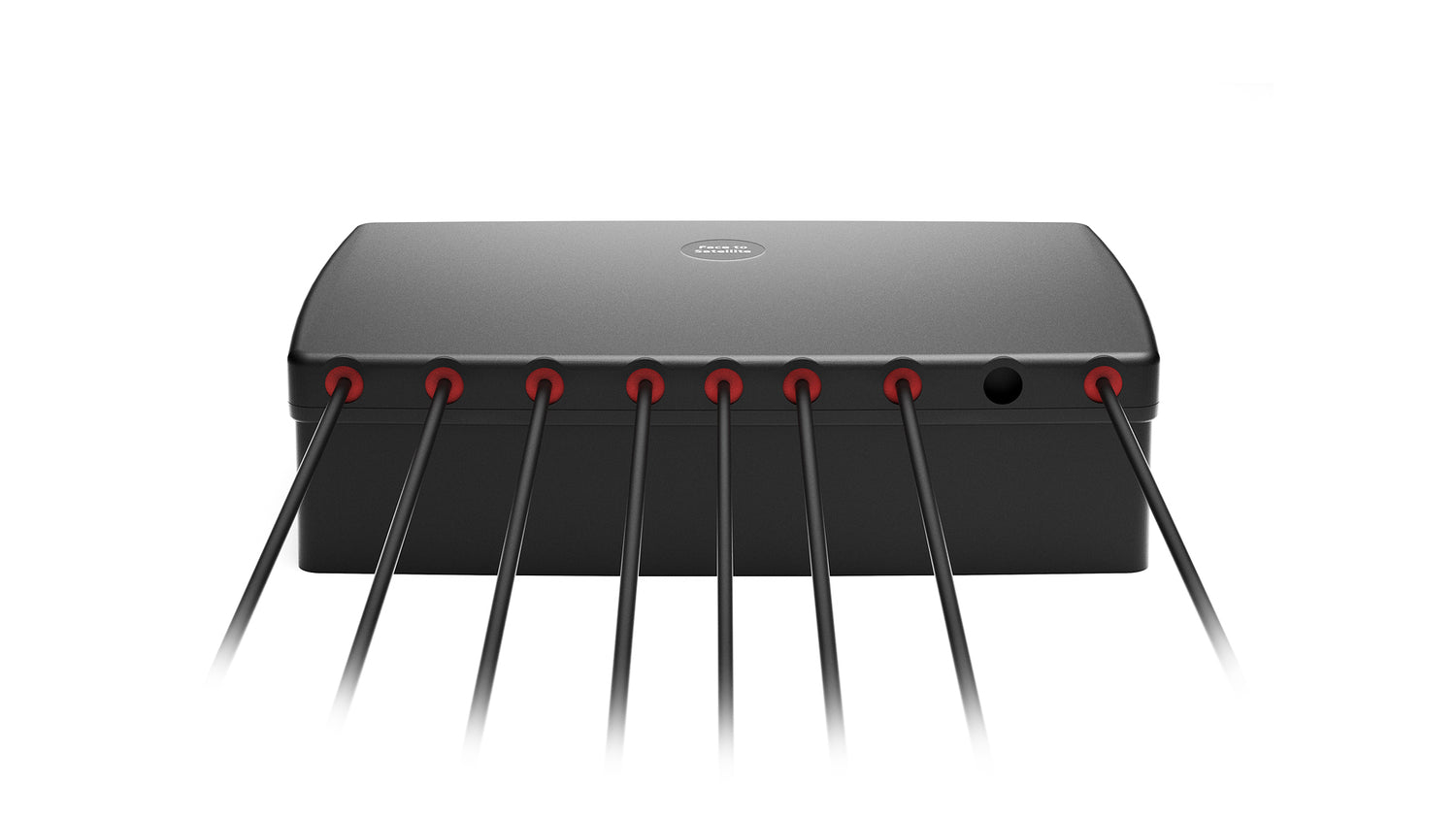

Diese bodenunabhängige Antenne kann einfach mit der robusten magnetischen Halterung auf Metalloberflächen wie Fahrzeugen und Metallgebäuden für permanente oder temporäre Anwendungen installiert werden. Wir bieten diese Antenne auch mit Klebe- und Schraubmontage an, siehe Produkt 2J4H86PCFf und 2J6B86BCFf für weitere Details. Das flache Gehäuse misst nur 198 x 126 x 50,7 mm und macht diese Antenne 55 % kleiner als jede andere Antenne auf dem Markt. Hergestellt aus ASA UV-stabilem Material und mit voller IP67/IP69-Zertifizierung bietet sie Haltbarkeit und den höchsten Schutz gegen Wasser und Feuchtigkeit. Diese Antenne ist in Schwarz oder Weiß erhältlich.
2J4H86MGFg Konnektivitäten sind Standard SMA-Stecker (5GNR & GNSS)/ SMA-Stecker-RP (W-lan 6E / W-lan 7 ISM) und werden mit 300cm langen D302 (5GNR/W-lan 6E / W-lan 7 ISM)/ LL100 (GNSS) Kabeln geliefert. Alle Kabel führen von einer Seite des Antennengehäuses und sind für optimale Leistung abgestimmt. Wir bieten eine breite Palette alternativer Stecker und Kabel, um alle Anpassungsbedürfnisse zu erfüllen. Bitte kontaktieren Sie unsere hochqualifizierten Ingenieure für Unterstützung bei der Antennenauswahl oder Anpassungsanforderungen.
Technische Spezifikationen
Betriebstemperatur: -40°C bis +85°C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, SigFox, LoRa
Montage: Magnetische Halterung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 198 × 127 × 51 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-16,3, ~-14,9, ~-13,1, ~-12,9
VSWR: ~1,5:1, ~1,5:1, ~1,7:1, ~1,7:1
Effizienz (%): ~58,0, ~49,4, ~32,3, ~32,1
Spitzenverstärkung (dBi): ~3,2, ~5,2, ~4,5, ~4,5
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-14,9, ~-14,6, ~-15,3, ~-15,2
VSWR: ~1,6:1, ~1,5:1, ~1,6:1, ~1,4:1
Effizienz (%): ~58,1, ~47,0, ~35,5, ~39,8
Spitzenverstärkung (dBi): ~3,9, ~5,8, ~5,6, ~6,6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-16,2, ~-14,2, ~-14,4, ~-13,2
VSWR: ~1,6:1, ~1,6:1, ~1,6:1, ~1,6:1
Effizienz (%): ~58,0, ~46,7, ~35,8, ~36,7
Spitzenverstärkung (dBi): ~3,4, ~5,8, ~5,3, ~5,7
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-16,2, ~-15,5, ~-13,1, ~-13,1
VSWR: ~1,4:1, ~1,5:1, ~1,7:1, ~1,6:1
Effizienz (%): ~58,2, ~47,3, ~33,9, ~37,6
Spitzenverstärkung (dBi): ~3,5, ~5,7, ~5,1, ~5,8
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 5 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1,6:1, ~1,5:1, ~1,6:1
Effizienz (%): ~31,1, ~22,8, ~31,1
Spitzenverstärkung (dBi): ~4,6, ~3,3, ~4,6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 6 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1,7:1, ~1,7:1, ~1,8:1
Effizienz (%): ~37,7, ~31,2, ~42,6
Spitzenverstärkung (dBi): ~6,1, ~4,5, ~3,2
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 7 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1,3:1, ~1,6:1, ~1,2:1
Effizienz (%): ~37,9, ~34,5, ~44,7
Spitzenverstärkung (dBi): ~2,7, ~2,3, ~3,2
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 8 - GPS/GLONASS/BeiDou
Standards: GPS, GLONASS, BeiDou, QZSS, Galileo
Frequenz: 1561,098, 1575,42, 1598-1606 MHz
Passive Verstärkung (dBi): ~4,2, ~4,5, ~5,0
Impedanz (Ohm): 50
Strahlungsmuster: Halbkugelförmig
Spannungsbereich (V): 1,5 - 3,6
Aktive Verstärkung (dB): 28 @ 2,7 V
Rauschzahl (dB): 1,8 @ 2,7 V
Stromaufnahme (mA): 9 @ 2,7 V
Leistungsaufnahme (mW): 24,3 @ 2,7 V
Sägefiltertyp: Vorfilter
Außerhalb des Bandes Unterdrückung (dB): 43
ESD-Schutz (kV): 6
