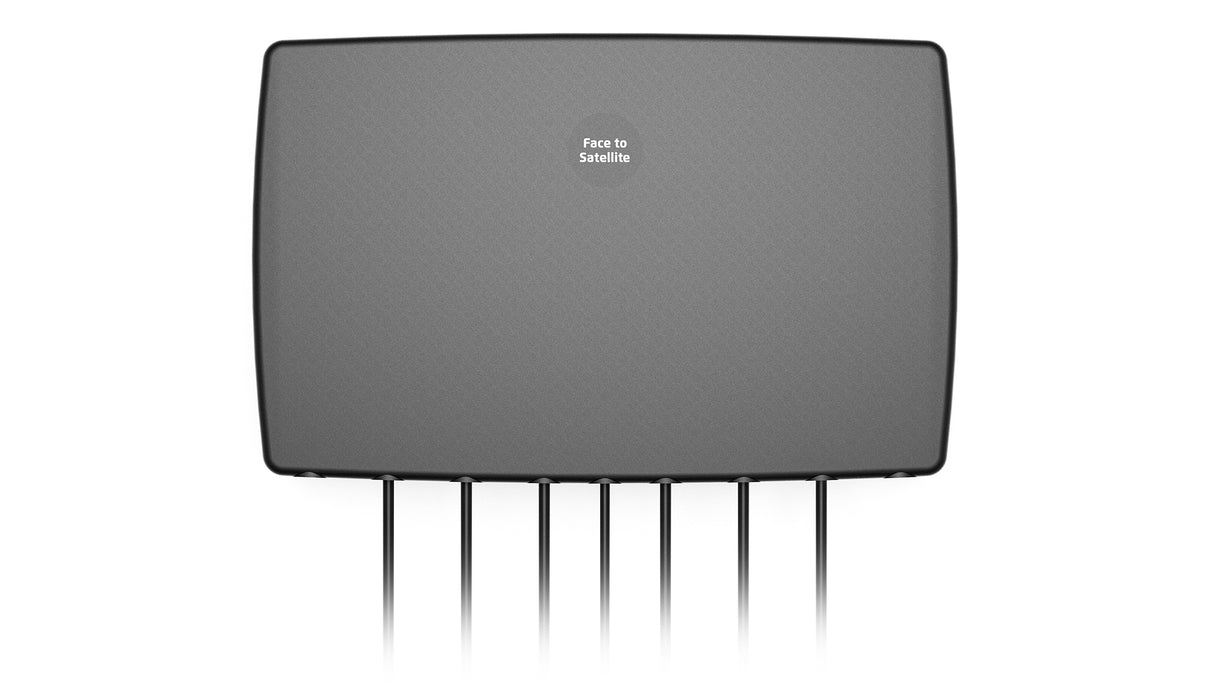

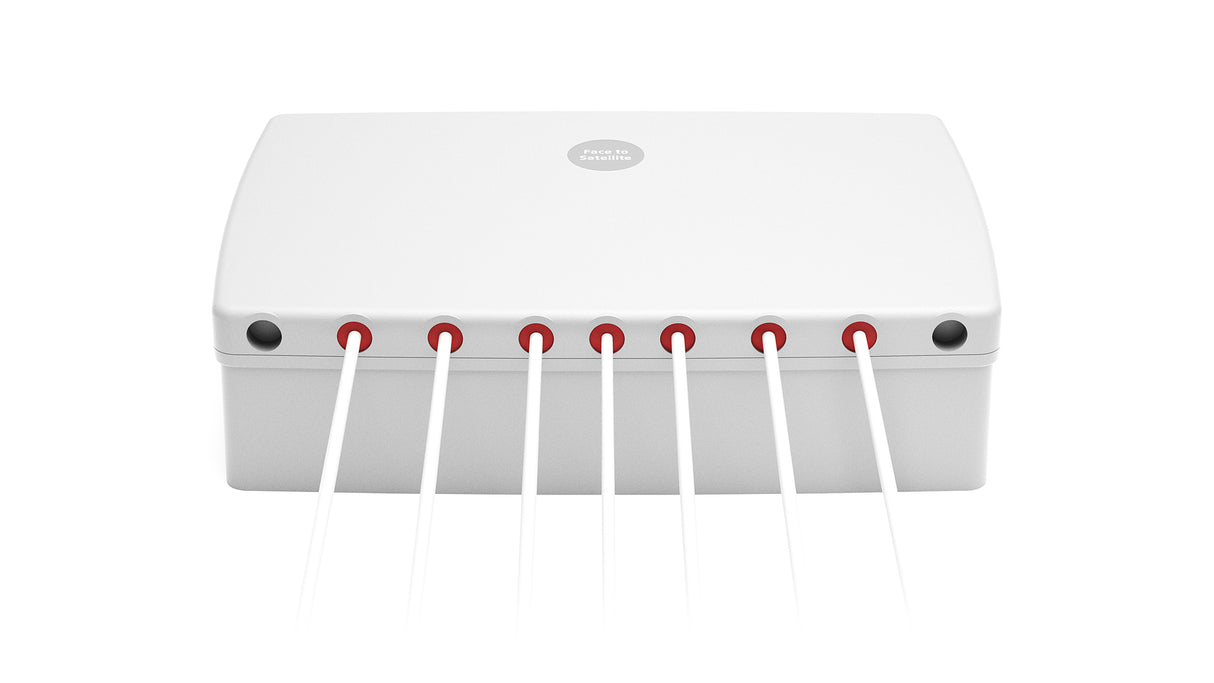

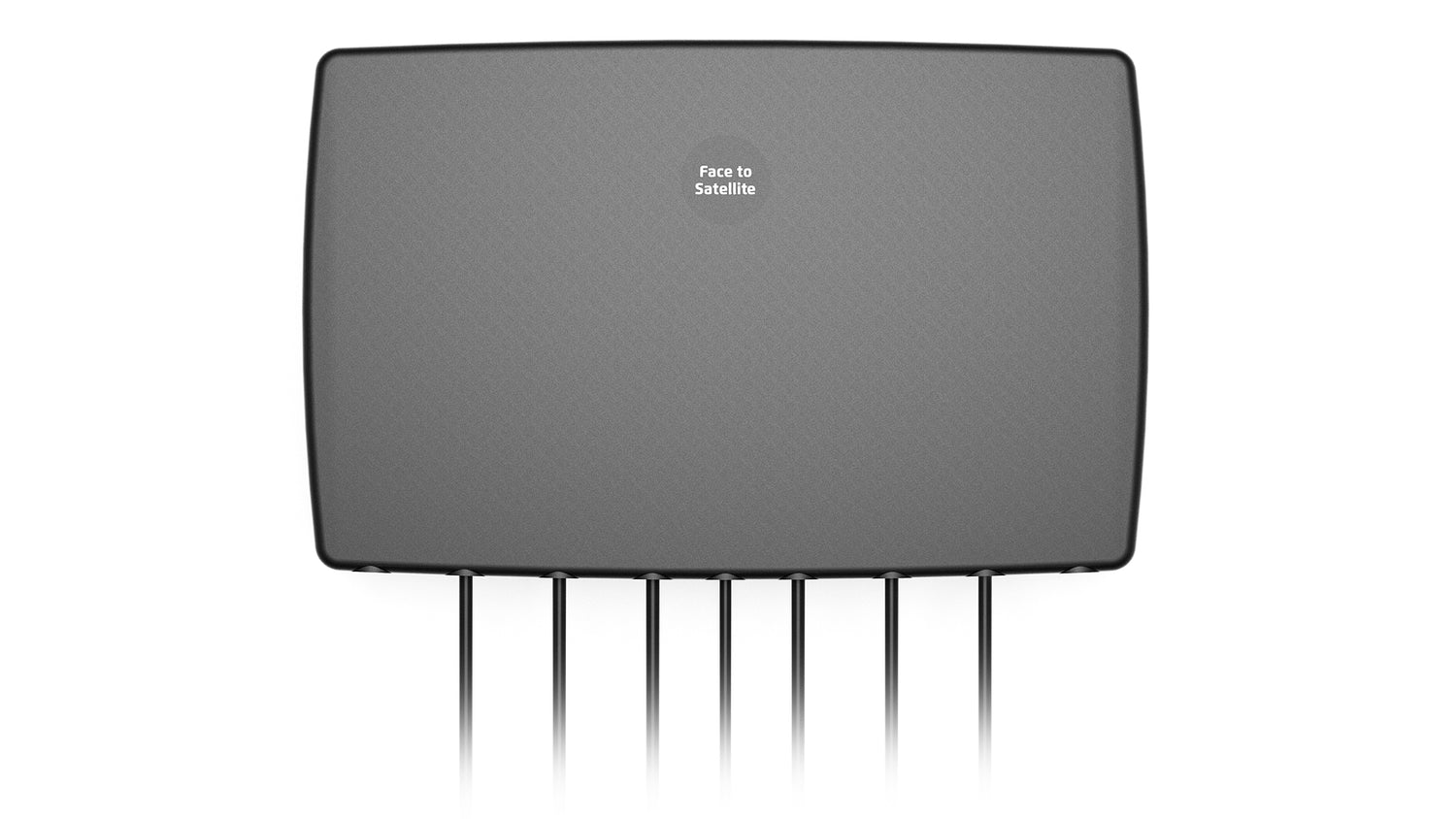

Diese ultrakompakte 7-in-1-Antenne mit magnetischer Halterung bietet leistungsstarke Konnektivität für 5G, W-lan 6E/7, GNSS und ISM-Anwendungen. Ihr flaches Design ist 55 % kleiner als vergleichbare Lösungen und ideal für Installationen mit begrenztem Platz. Die Antenne unterstützt ultrabreitbandiges MIMO-Betrieb, was zuverlässige Signalstärke und -qualität über einen breiten Frequenzbereich gewährleistet. Für anspruchsvolle Umgebungen konzipiert, eignet sie sich für öffentliche Sicherheit, Transport, Automobilindustrie, Industrie und kommerzielle Anwendungen, bei denen robuste drahtlose und Navigationsleistung entscheidend ist.
- Ultrabreitband-Abdeckung für nahtlose Konnektivität
- Hohe Verstärkung und Effizienz für überlegene Signalqualität
- Aktives GNSS mit Vorfilter und ESD-Schutz
- Robustes Gehäuse mit IP67/IP69-Zertifizierung für raue Umgebungen
- Ideal für mobile, Flotten-, IoT- und kritische Kommunikation
Konnektivitäten
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
4× 2,4-5,0-6,0GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Stecker & Kabel
-
Steckertyp: SMA-Stecker (5GNR & GNSS), RPSMA-Stecker (W-lan 6E/7 ISM)
-
Kabellänge: 300cm
-
Kabeltyp: D302 (5GNR/W-lan 6E/7 ISM), LL100 (GNSS)
Installation / Umwelt

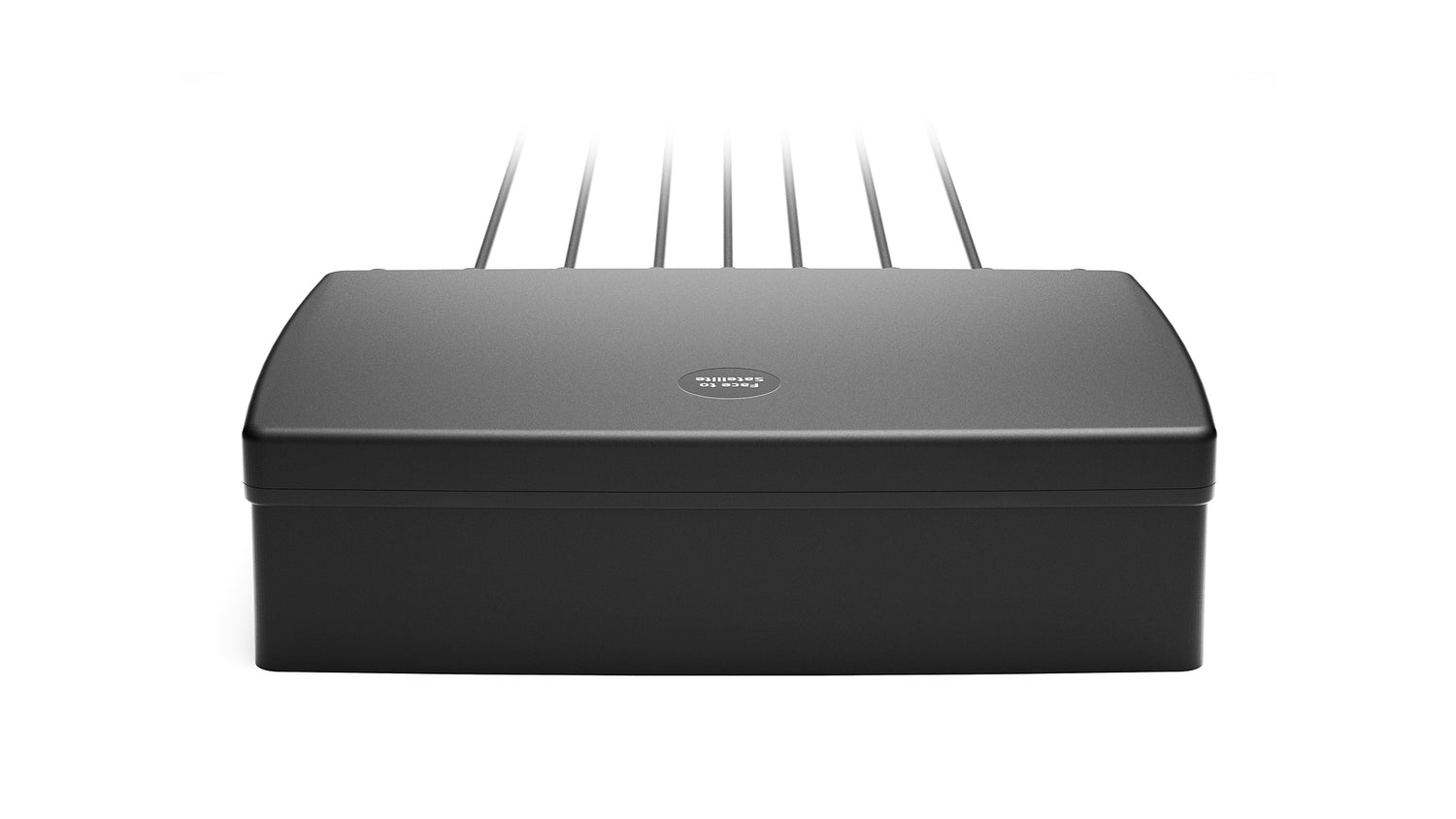

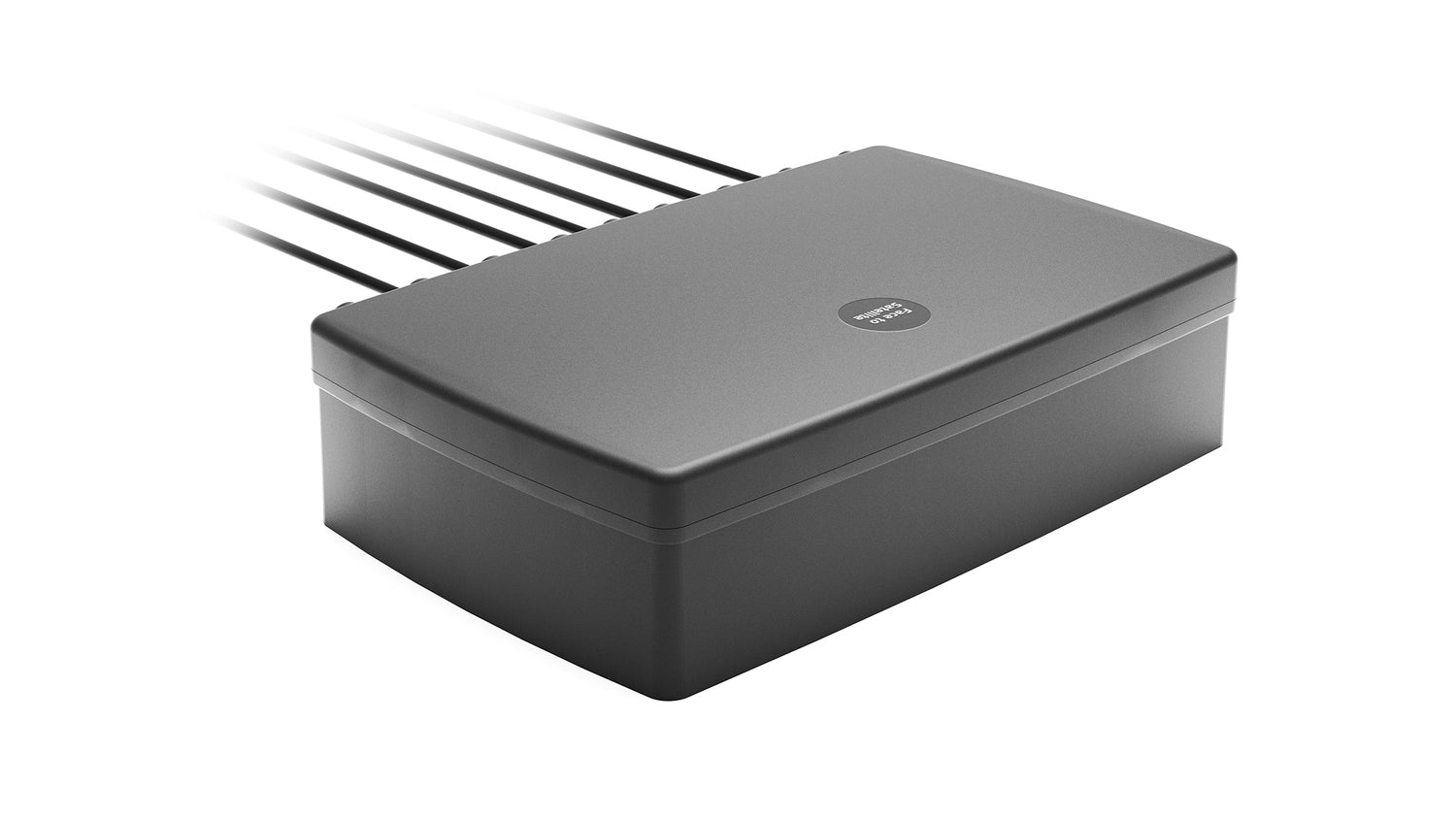

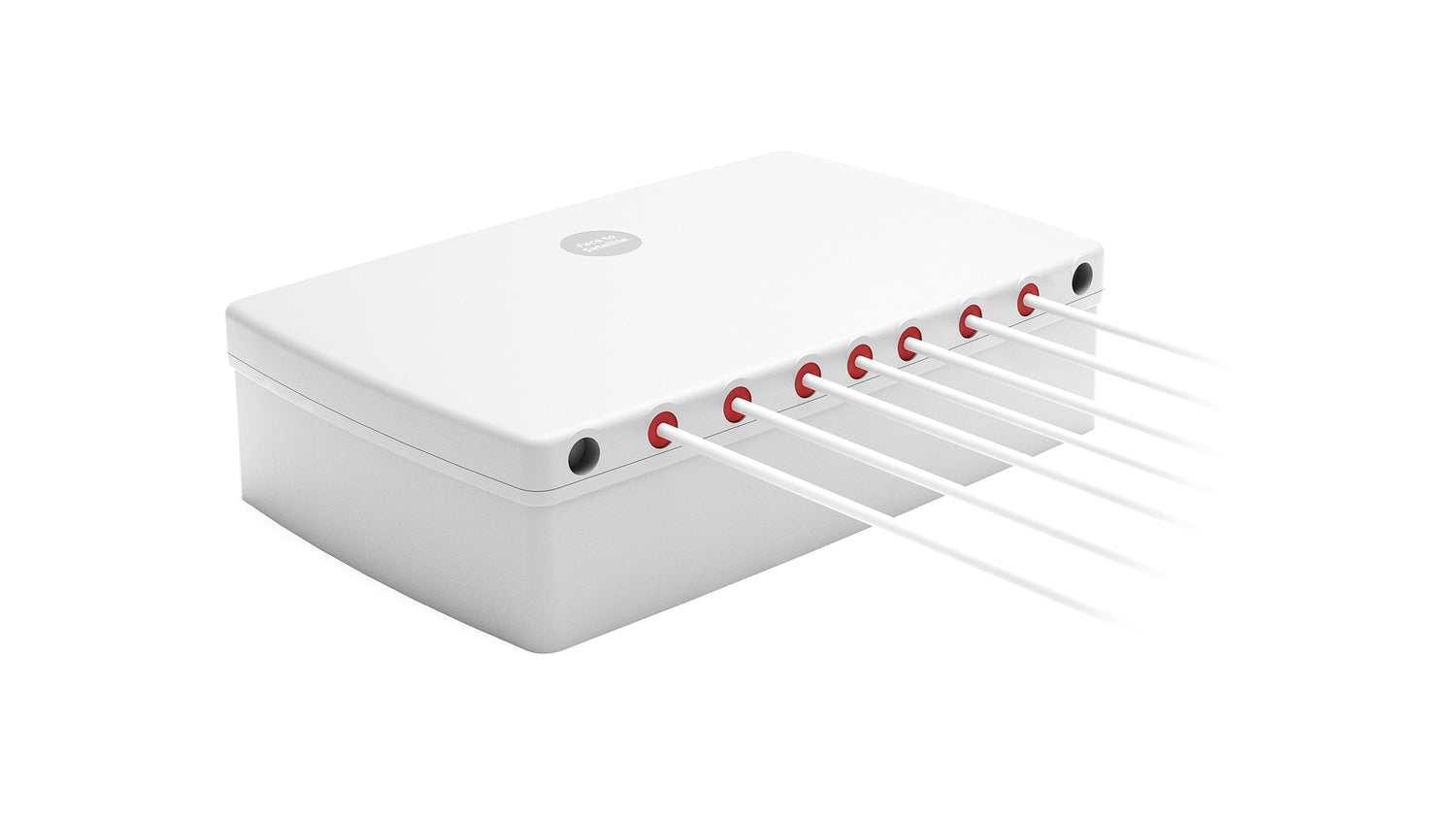

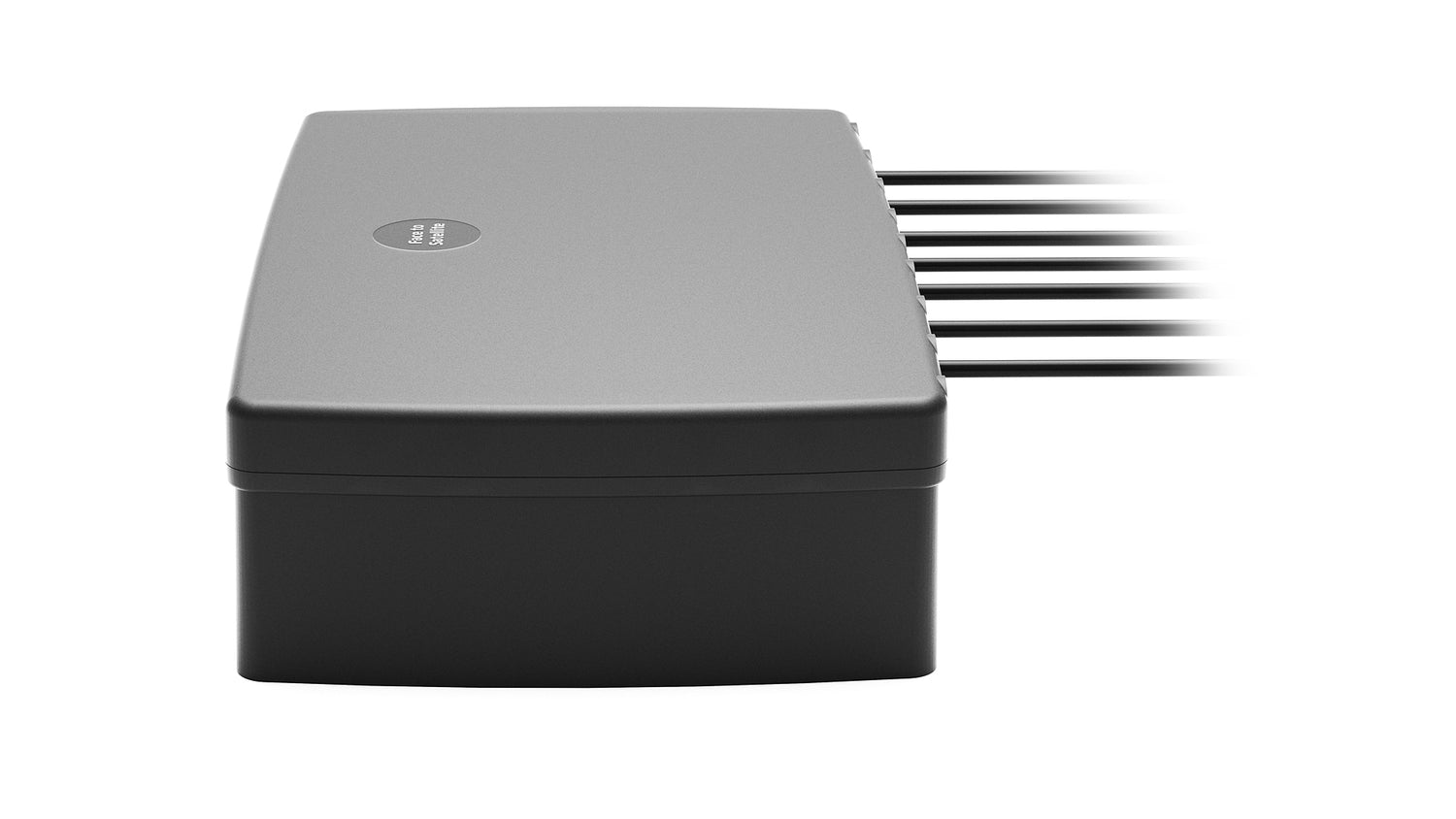

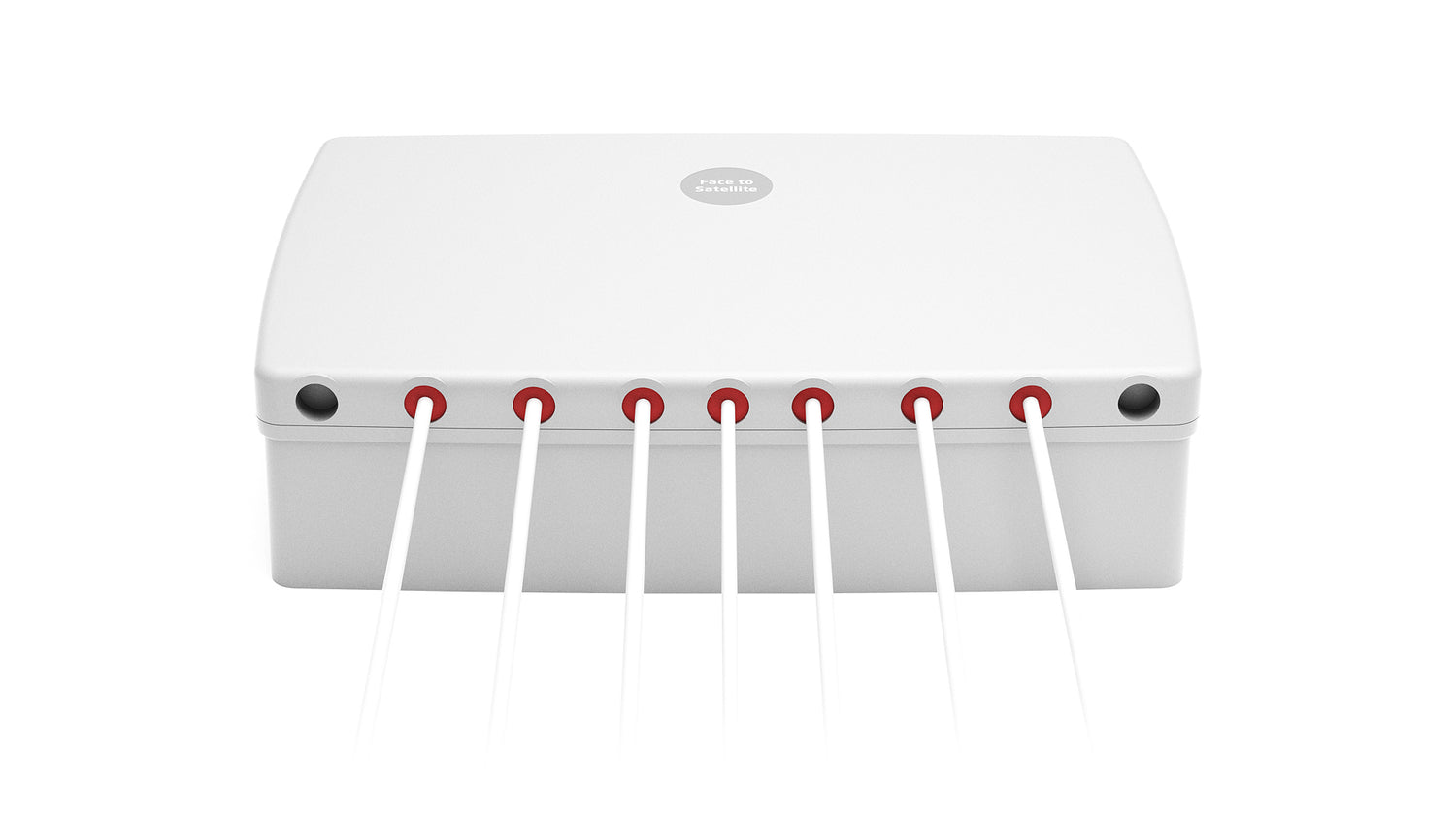

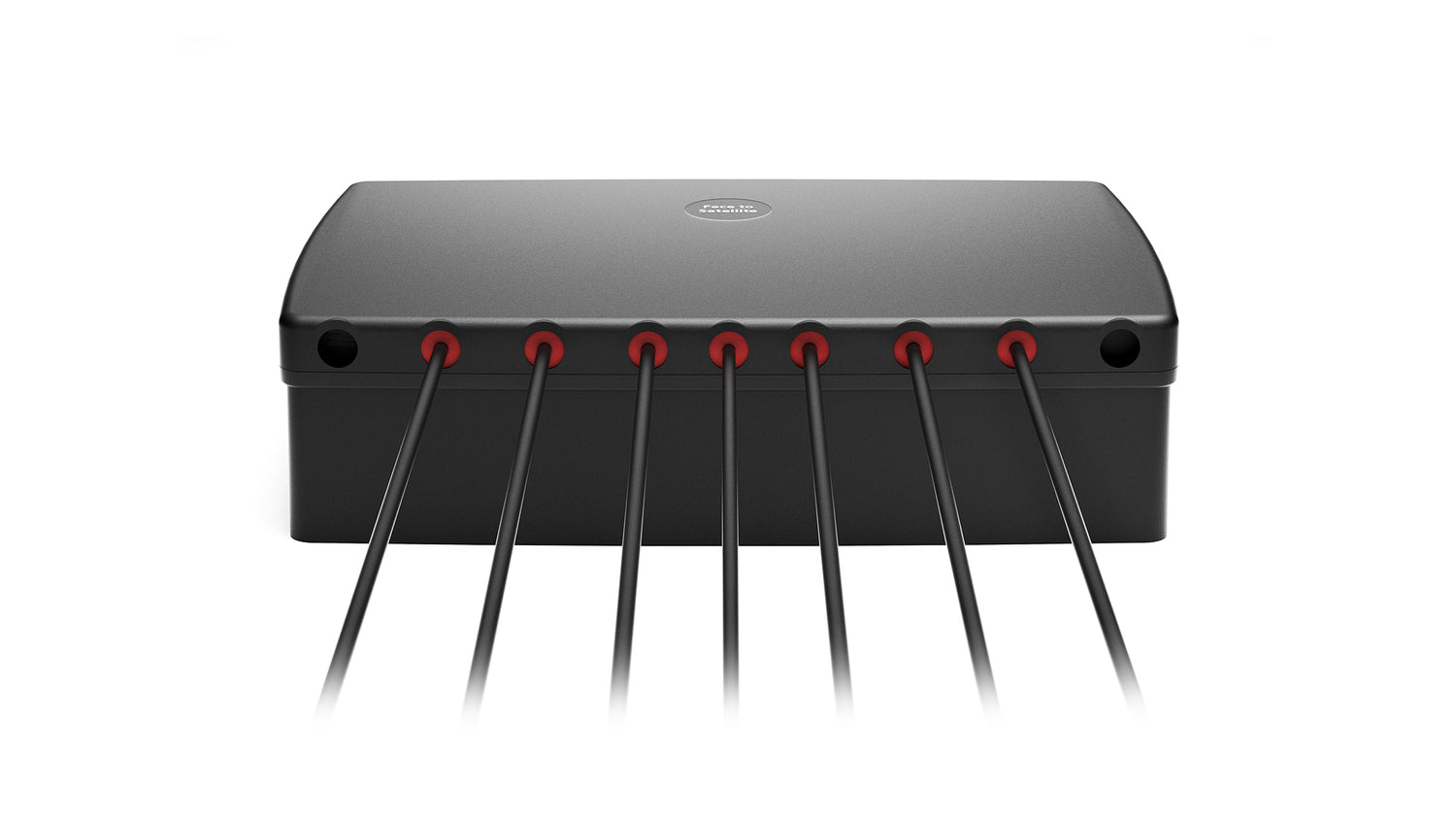

Diese bodenunabhängige Antenne kann einfach mit der robusten magnetischen Halterung auf Metalloberflächen wie Fahrzeugen und Metallgebäuden für permanente oder temporäre Anwendungen installiert werden. Das flache Gehäuse misst nur 198 x 127 x 51mm und ist damit 55 % kleiner als jede andere Antenne auf dem Markt. Hergestellt aus ASA UV-stabilem Material und mit voller IP67/IP69-Zertifizierung bietet sie Langlebigkeit und den höchsten Schutz gegen Wasser und Feuchtigkeit. Diese Antenne ist in Schwarz oder Weiß erhältlich.
2J4H86MGFl Konnektivitäten sind standardmäßig SMA-Stecker (5GNR & GNSS)/ SMA-Stecker-RP (WIFI 6E / WIFI 7 ISM) und werden mit 300cm langen D302 (5GNR/WIFI 6E / WIFI 7 ISM)/ LL100 (GNSS) Kabeln geliefert. Alle Kabel führen von einer Seite des Antennengehäuses und sind für optimale Leistung abgestimmt. Wir bieten eine breite Palette alternativer Stecker und Kabel, um alle Anpassungswünsche zu erfüllen. Bitte kontaktieren Sie unsere hochqualifizierten Ingenieure für Unterstützung bei der Antennenauswahl oder individuellen Anforderungen.
Technische Spezifikationen
Betriebstemperatur: -40°C bis +85°C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Positionierung: Extern
LPWAN- & IoT-Kommunikation: LPWA, SigFox, LoRa
Montage: Magnetische Halterung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 198 × 127 × 51 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-14,9, ~-14,6, ~-15,3, ~-15,2
VSWR: ~1,6:1, ~1,5:1, ~1,6:1, ~1,4:1
Effizienz (%): ~58,1, ~47,0, ~35,5, ~39,8
Spitzenverstärkung (dBi): ~3,9, ~5,8, ~5,6, ~6,6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-16,2, ~-14,2, ~-14,4, ~-13,2
VSWR: ~1,6:1, ~1,6:1, ~1,6:1, ~1,6:1
Effizienz (%): ~58,0, ~46,7, ~35,8, ~36,7
Spitzenverstärkung (dBi): ~3,4, ~5,8, ~5,3, ~5,7
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 3 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,6:1, ~1,5:1, ~1,6:1
Effizienz (%): ~31,1, ~22,8, ~31,1
Spitzenverstärkung (dBi): ~4,6, ~3,3, ~4,6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 4 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,7:1, ~1,7:1, ~1,8:1
Effizienz (%): ~37,7, ~31,2, ~42,6
Spitzenverstärkung (dBi): ~6,1, ~4,5, ~3,2
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 5 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,3:1, ~1,6:1, ~1,2:1
Effizienz (%): ~37,9, ~34,5, ~44,7
Spitzenverstärkung (dBi): ~2,7, ~2,3, ~3,2
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 6 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,4:1, ~1,4:1, ~1,6:1
Effizienz (%): ~36,7, ~30,8, ~39,7
Spitzenverstärkung (dBi): ~4,4, ~2,6, ~3,0
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 7 - GPS/GLONASS
Standards: GPS/GLONASS/QZSS/Galileo
Frequenz (MHz): 1575,42, 1598-1606
Passive Verstärkung (dBi): ~4,5, ~5,0
Impedanz (Ohm): 50
Strahlungsmuster: Halbkugelförmig
Spannungsbereich (V): 1,5 - 3,6
Aktive Verstärkung (dB): 28 @ 2,7 V
Rauschzahl (dB): 1,8 @ 2,7 V
Stromaufnahme (mA): 9 @ 2,7 V
Leistungsaufnahme (mW): 24,3 @ 2,7 V
Sägefiltertyp: Vorfilter
Außerbanddämpfung (dB): 43
ESD-Schutz (kV): 6
