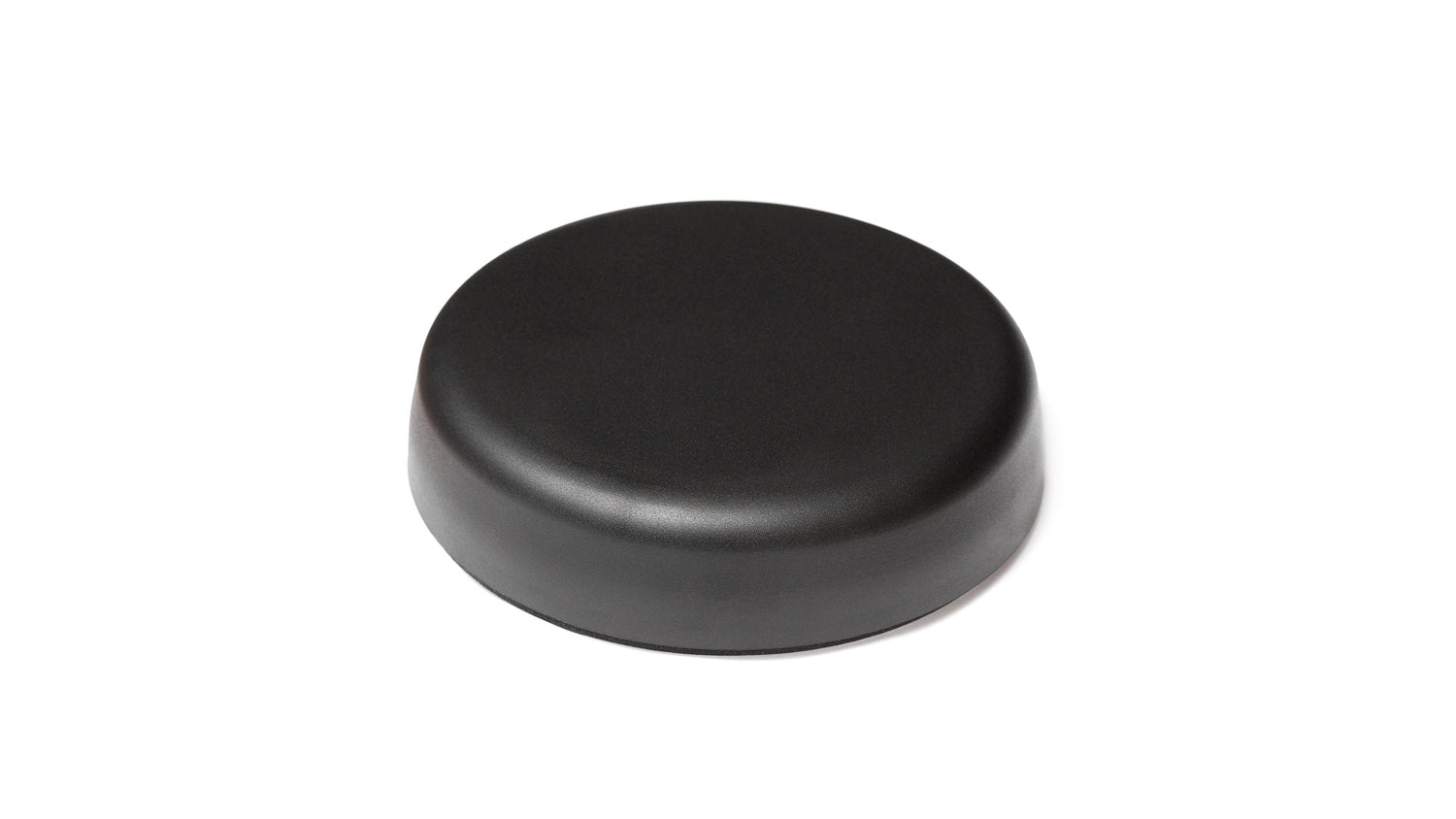

Diese ultra-breitbandige 4-in-1-Antenne ist für Hochleistungs-Konnektivität über 5G, GNSS, W-lan 6E/7 und ISM-Bänder konzipiert. Ihr robustes Gehäuse mit Schraubbefestigung sorgt für eine sichere Installation bei anspruchsvollen Anwendungen in der Automobilindustrie, im Bereich der öffentlichen Sicherheit und in der Industrie. Die Antenne unterstützt MIMO für eine verbesserte Datenübertragung und Zuverlässigkeit und verfügt über aktives GNSS mit Vorfilterung für präzise Positionsbestimmung. Mit den Schutzarten IP67, IP69 und IK09 ist sie für raue Umgebungen ausgelegt und ideal für Flottenmanagement, Smart Cities, IoT und missionskritische Kommunikation.
Konnektivitäten
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2,4-5,0-6,0 GHz/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Position: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, SigFox, LoRa

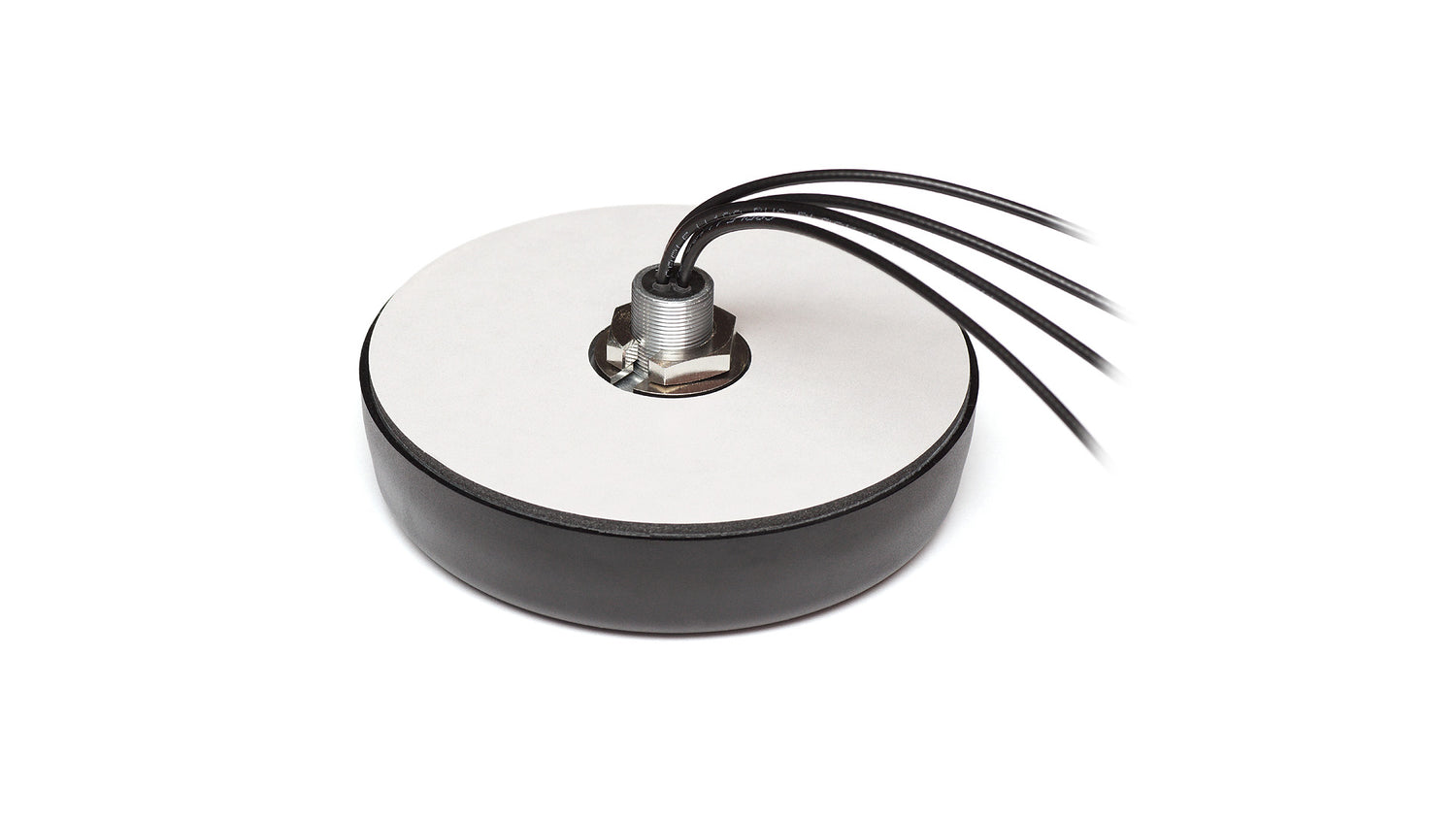

Befestigung: Schraubbefestigung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee
Typ: Kombination
Abmessungen: Ø 136 × 31,5 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-6,5, ~-11,2, ~-14,5, ~-15,7
VSWR: ~3,0:1, ~1,9:1, ~1,5:1, ~1,5:1
Effizienz (%): ~20,0, ~18,7, ~15,5, ~10,9
Spitzenverstärkung (dBi): ~-3,6, ~-2,1, ~-1,7, ~-5,8
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungscharakteristik: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-6,4, ~-11,3, ~-14,7, ~-15,5
VSWR: ~3,0:1, ~1,9:1, ~1,5:1, ~1,5:1
Effizienz (%): ~18,3, ~16,6, ~12,6, ~10,1
Spitzenverstärkung (dBi): ~-3,9, ~-2,4, ~-2,2, ~-6,7
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungscharakteristik: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 3 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,8:1, ~2,6:1, ~2,0:1
Effizienz (%): ~51,1, ~18,3, ~9,4
Spitzenverstärkung (dBi): ~4,0, ~0,8, ~-6,6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 4 - GPS/GLONASS
Standards: GPS/GLONASS/QZSS/Galileo
Frequenz (MHz): 1575,42, 1598-1610
VSWR: <=1,4:1
Impedanz (Ohm): 50
Polarisation: RHCP
Strahlungscharakteristik: Hemisphärisch
Spannungsbereich (V): 1,5 - 3,6
Aktive Verstärkung (dB): 28 @ 2,7 V
Rauschzahl (dB): 1,5 @ 2,7 V
Stromaufnahme (mA): 9 @ 2,7 V
Sägefilter-Typ: Vorfilter
ESD-Schutz (kV): 2
Datenblatt PDF herunterladen
