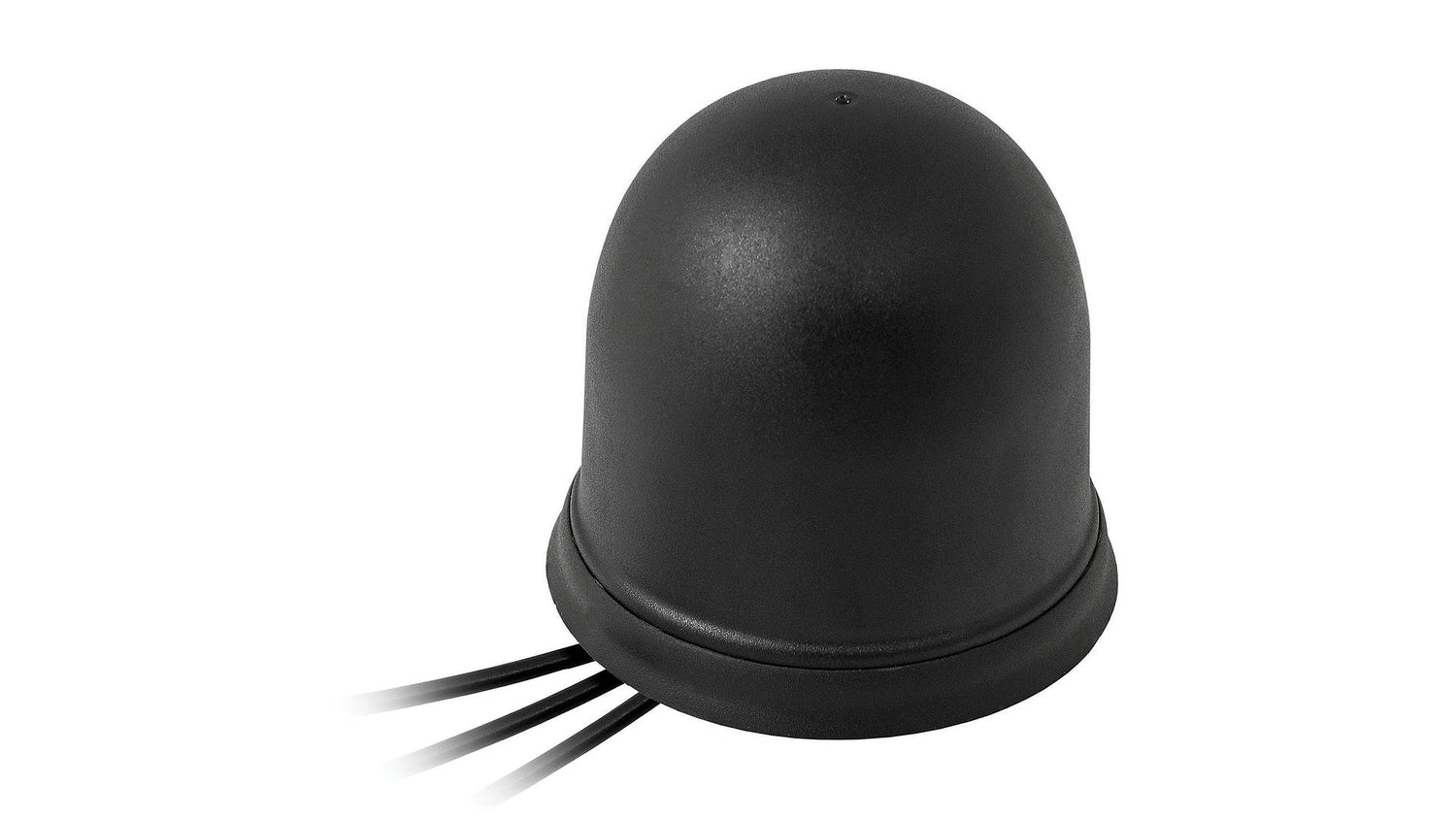

Diese Hochleistungs-Kombinationsantenne ist für anspruchsvolle Anwendungen konzipiert, die eine zuverlässige Konnektivität über mehrere Technologien hinweg erfordern. Das robuste Design mit Schraubbefestigung sorgt für eine sichere Installation in verschiedenen Umgebungen, während die Schutzarten IP69K, IP67 und IK09 einen hervorragenden Schutz gegen Wasser, Staub und mechanische Einwirkungen bieten. Die Antenne unterstützt 4G/LTE, GNSS (GPS, GLONASS, Galileo, QZSS), W-lan, Bluetooth, ZigBee und ISM-Bänder, was sie ideal für den Einsatz in der Automobilindustrie, im Industriebereich, in der Telematik und bei IoT-Anwendungen macht.
Konnektivitäten
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/W-lan/LPWA/BT/ZigBee/RFID/ISM
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: Multi-Technologie
Mobilfunktechnologien: 4G/LTE
Standort: Außen

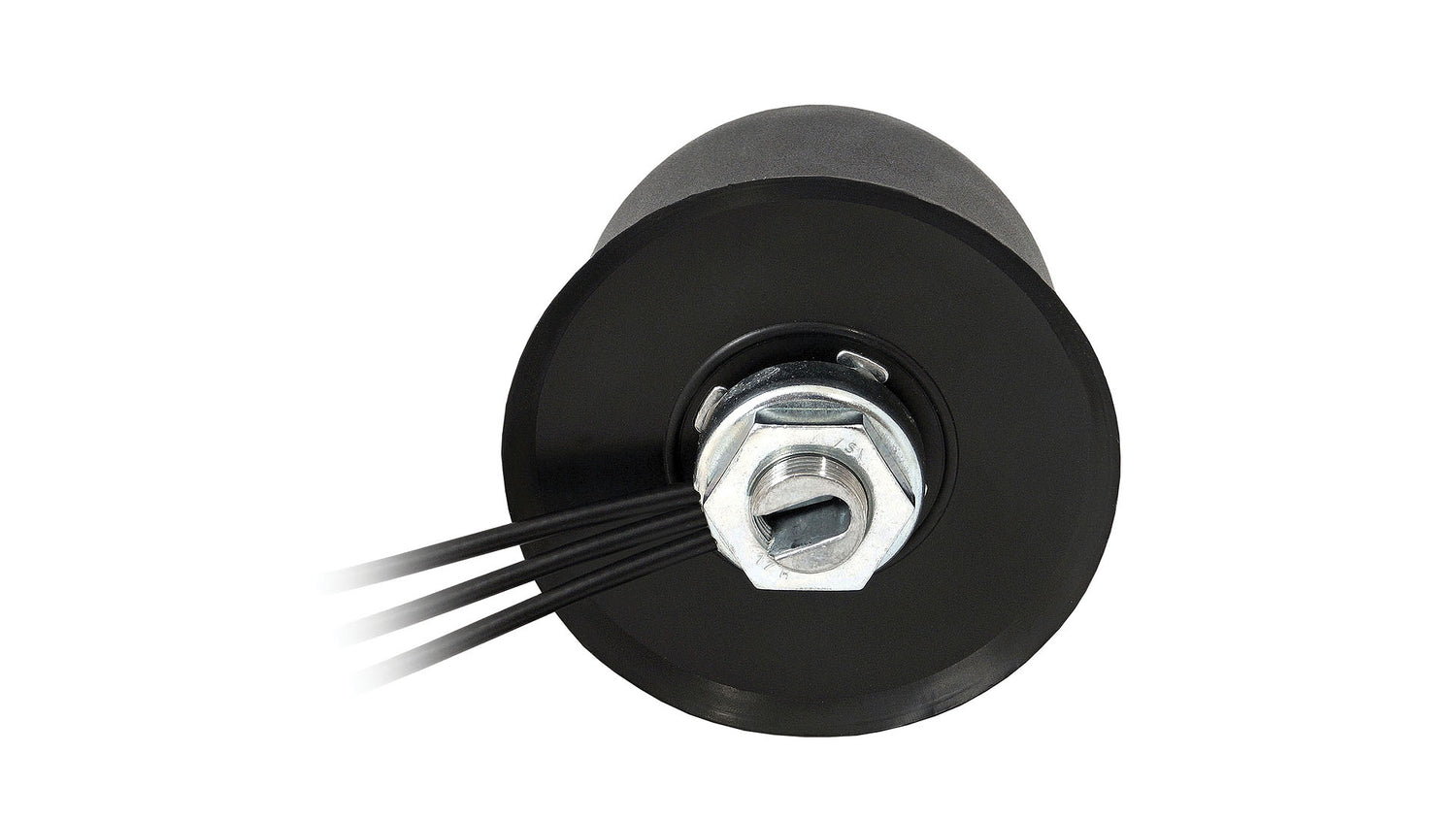

Befestigung: Schraubbefestigung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee
Typ: Kombination
Abmessungen: Ø 77,3 x 65,5 mm
Konnektivität 1 - Mobilfunk/4G LTE
Standards: 2G, 3G, 4G
Frequenz: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2,1:1, ~1,5:1, ~1,5:1
Effizienz (%): ~52, ~62, ~50
Spitzenverstärkung (dBi): ~0,7, ~3,4, ~4,0
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 2 - 2,4/5,0 GHz ISM
Standards: W-lan, BT, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1,2:1, ~1,8:1
Effizienz (%): ~60,5, ~38,4
Spitzenverstärkung (dBi): ~5,0, ~3,9
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 3 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequenz: 1575,42, 1598-1606 MHz
VSWR: <=1,4:1
Impedanz (Ohm): 50
Polarisation: RHCP
Aktive Verstärkung (dB): 28 @ 2,7 V
Spannung (V): 1,5 - 3,6
Rauschzahl (dB): 1,5 Typ
Stromaufnahme (mA): 9 Typ
Leistungsaufnahme (mW): 24,3 Typ
Sägefilter-Typ: Vorfilter
ESD-Schutz (kV): 2
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J6A50BGF","title":"4G LTE/3G/2G, W-lan ISM, GPS/GLONASS/Galileo Schraubbefestigung Kombinationsantenne","mountingType":"Schraubbefestigung","ipRating":"IP67/IP69K","dimensions_mm":"Ø 77.3 x 65.5","elements":[{"elementID":"Cellular","type":"Cellular","technologies":["4G LTE","3G","2G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":"~-10.3","vswr":"~2.1:1","efficiency_percent":"~52","peakGain_dbi":"~0.7","averageGain_db":"~-2.9"},{"range_mhz":"1710-2170","returnLoss_db":"~-14.8","vswr":"~1.5:1","efficiency_percent":"~62","peakGain_dbi":"~3.4","averageGain_db":"~-2.1"},{"range_mhz":"2500-2700","returnLoss_db":"~-15.1","vswr":"~1.5:1","efficiency_percent":"~50","peakGain_dbi":"~4.0","averageGain_db":"~-3.0"}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Wi-Fi / ISM","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-20.2","vswr":"~1.2:1","efficiency_percent":"~60.5","peakGain_dbi":"~5.0","averageGain_db":"~-2.2"},{"range_mhz":"4920-5925","returnLoss_db":"~-11.1","vswr":"~1.8:1","efficiency_percent":"~38.4","peakGain_dbi":"~3.9","averageGain_db":"~-4.2"}],"polarization":"Linear","radiationPattern":"Omnidirektional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"GNSS","type":"GNSS","technologies":["GPS","GLONASS","Galileo","QZSS"],"frequencies":[{"range_mhz":"1575.42","returnLoss_db":"\u003C=-15.0","vswr":"\u003C=1.4:1","efficiency_percent":null,"peakGain_dbi":"~28","averageGain_db":null},{"range_mhz":"1598-1606","returnLoss_db":"\u003C=-15.0","vswr":"\u003C=1.4:1","efficiency_percent":null,"peakGain_dbi":"~28","averageGain_db":null}],"polarization":"RHCP","radiationPattern":"Halbkugelförmig","impedance_ohms":50,"maxInputPower_w":null}],"connectors":[{"elementIDRef":"Cellular","type":"SMA-Male","cableType":"DACAR302","cableLength_mm":3000},{"elementIDRef":"Wi-Fi / ISM","type":"RP-SMA-Male","cableType":"DACAR302","cableLength_mm":3000},{"elementIDRef":"GNSS","type":"SMA-Male","cableType":"LMR100","cableLength_mm":3000}]}
