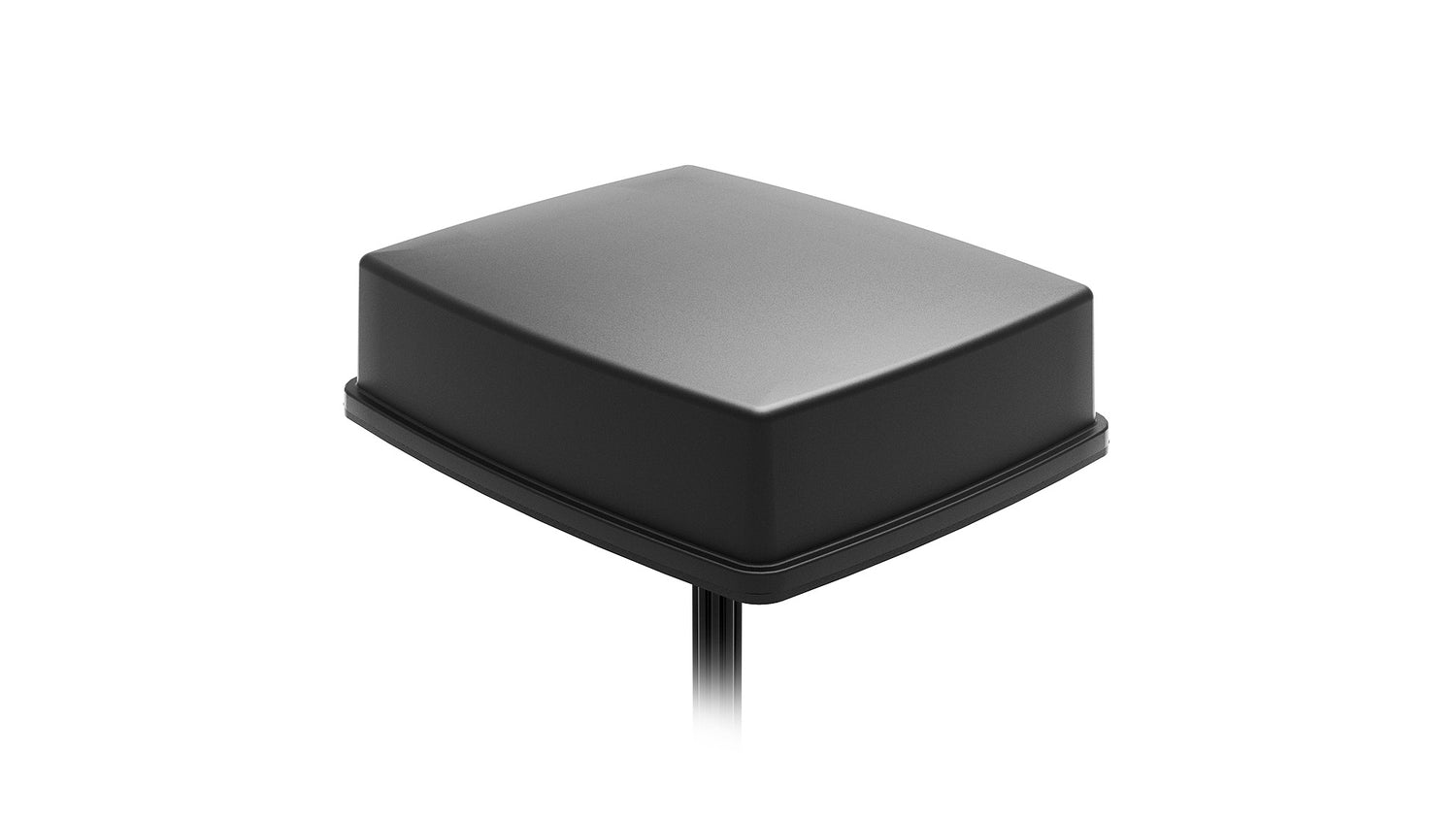

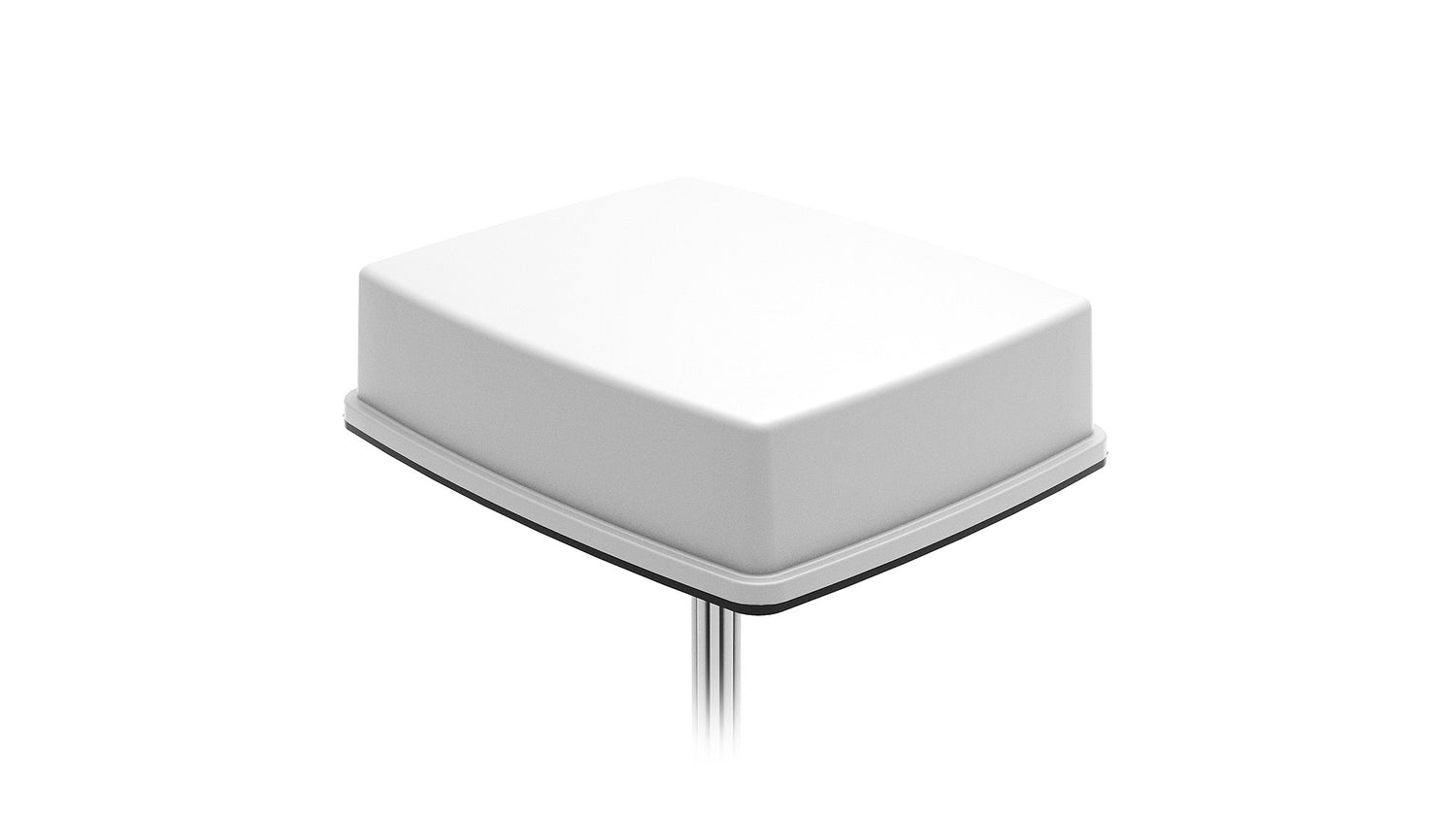

Diese hocheffiziente 8-in-1-Antenne ist für fortschrittliche 5G- und W-lan 6E/7-Konnektivitäten im Bereich von 617–7125 MHz ausgelegt und bietet robuste Leistung für anspruchsvolle mobile, öffentliche Sicherheits- und Industrieanwendungen. Ihr ultrabreites MIMO-Design gewährleistet zuverlässige, schnelle Datenübertragung und nahtlose Abdeckung, selbst in herausfordernden Umgebungen. Das flache, robuste Gehäuse ist nach IP67/IP69 zertifiziert und bietet maximalen Schutz gegen Wasser und Staub, was es ideal für Fahrzeuginstallationen, kritische Kommunikation und mobile Netzwerke macht. Anwendungsbereiche umfassen drahtloses Breitband, private Netzwerke, Mobilfunk/Mobildaten, öffentliche Sicherheitsflotten, industrielle Automatisierung und Transport.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
4× 2,4-5,0-6,0 GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Stecker & Kabel
-
Steckertyp: SMA-Stecker (5GNR), RPSMA-Stecker (W-lan 6E/7 ISM)
-
Kabellänge: 300 cm
-
Kabeltyp: D302 (verlustarm)
Installation / Umwelt

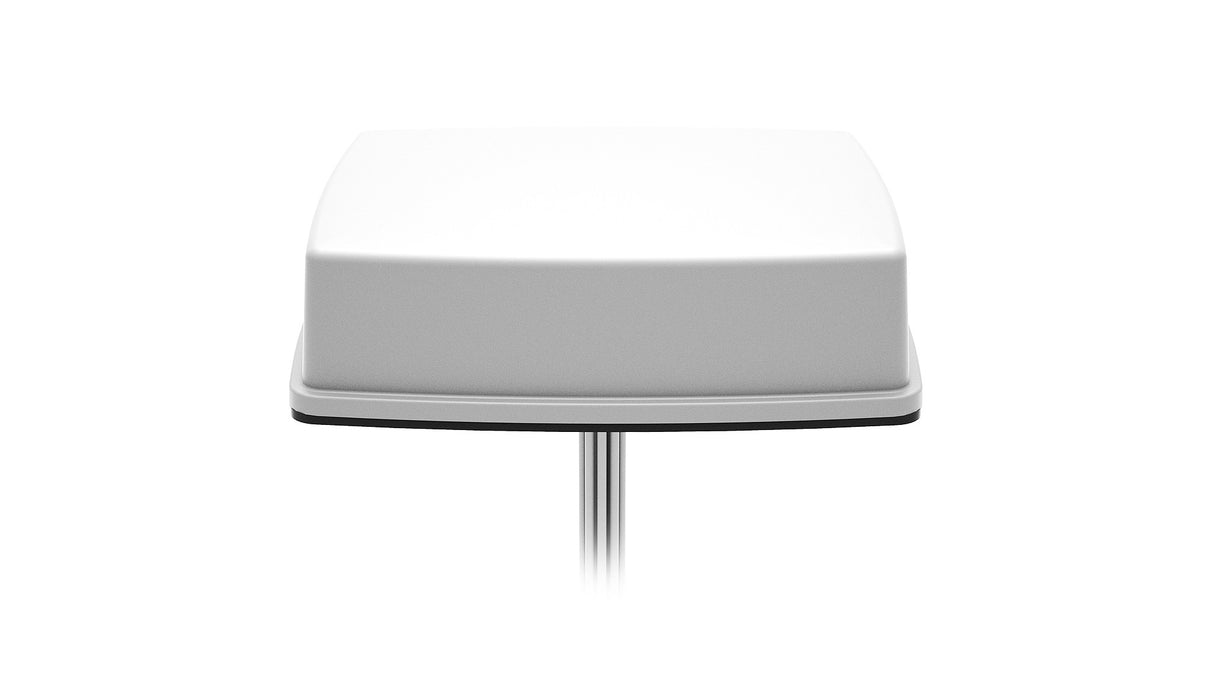

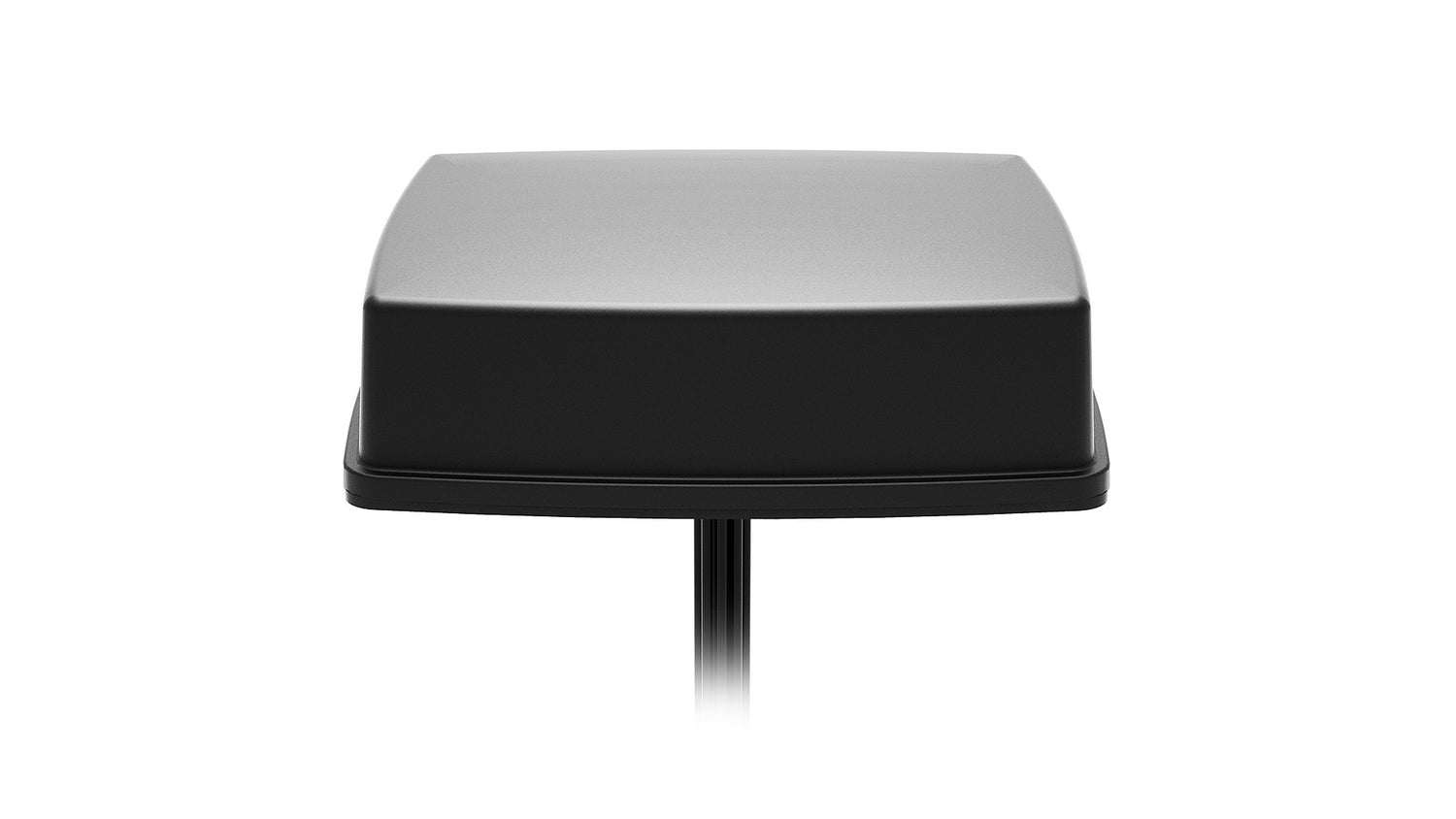

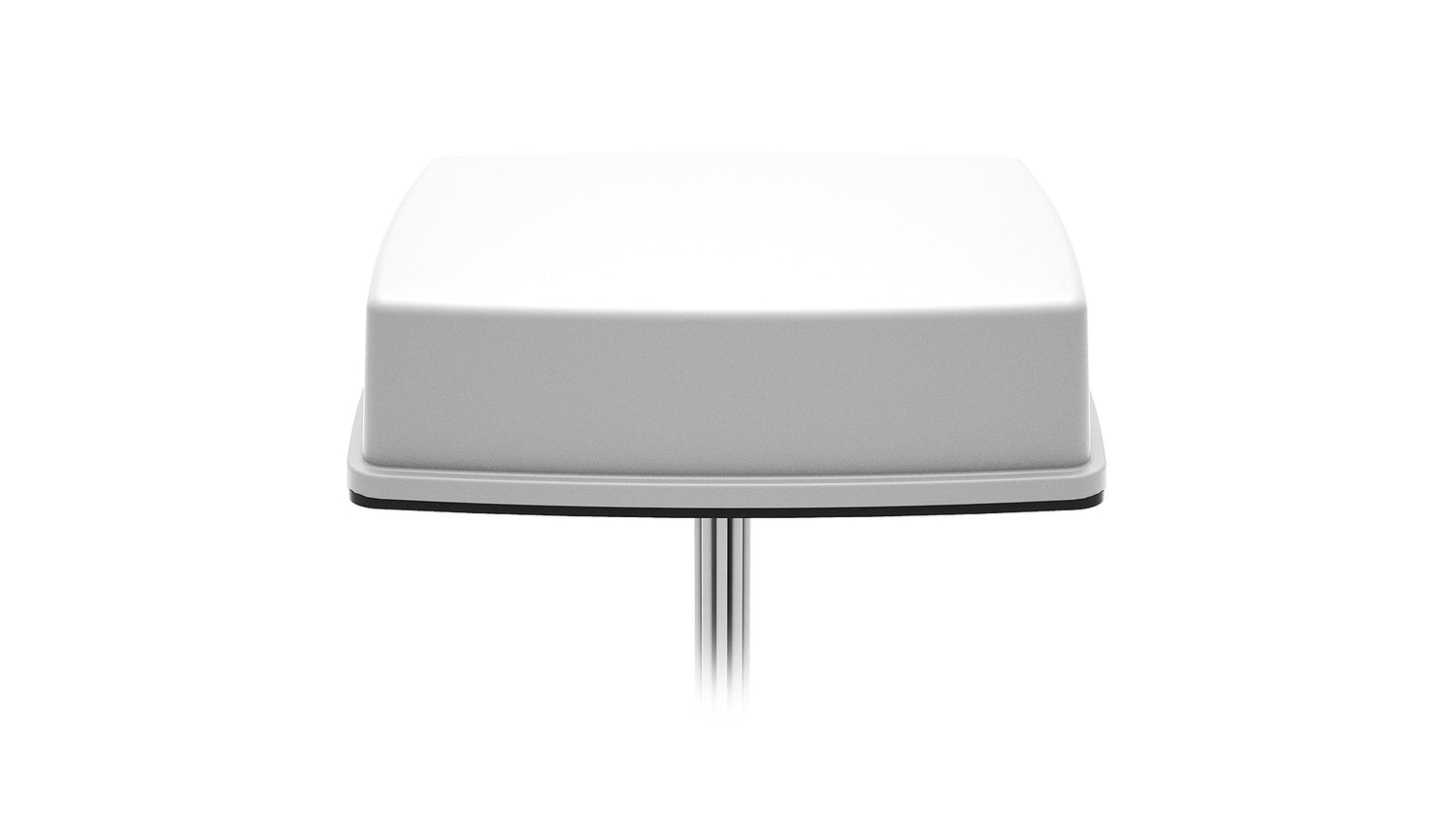

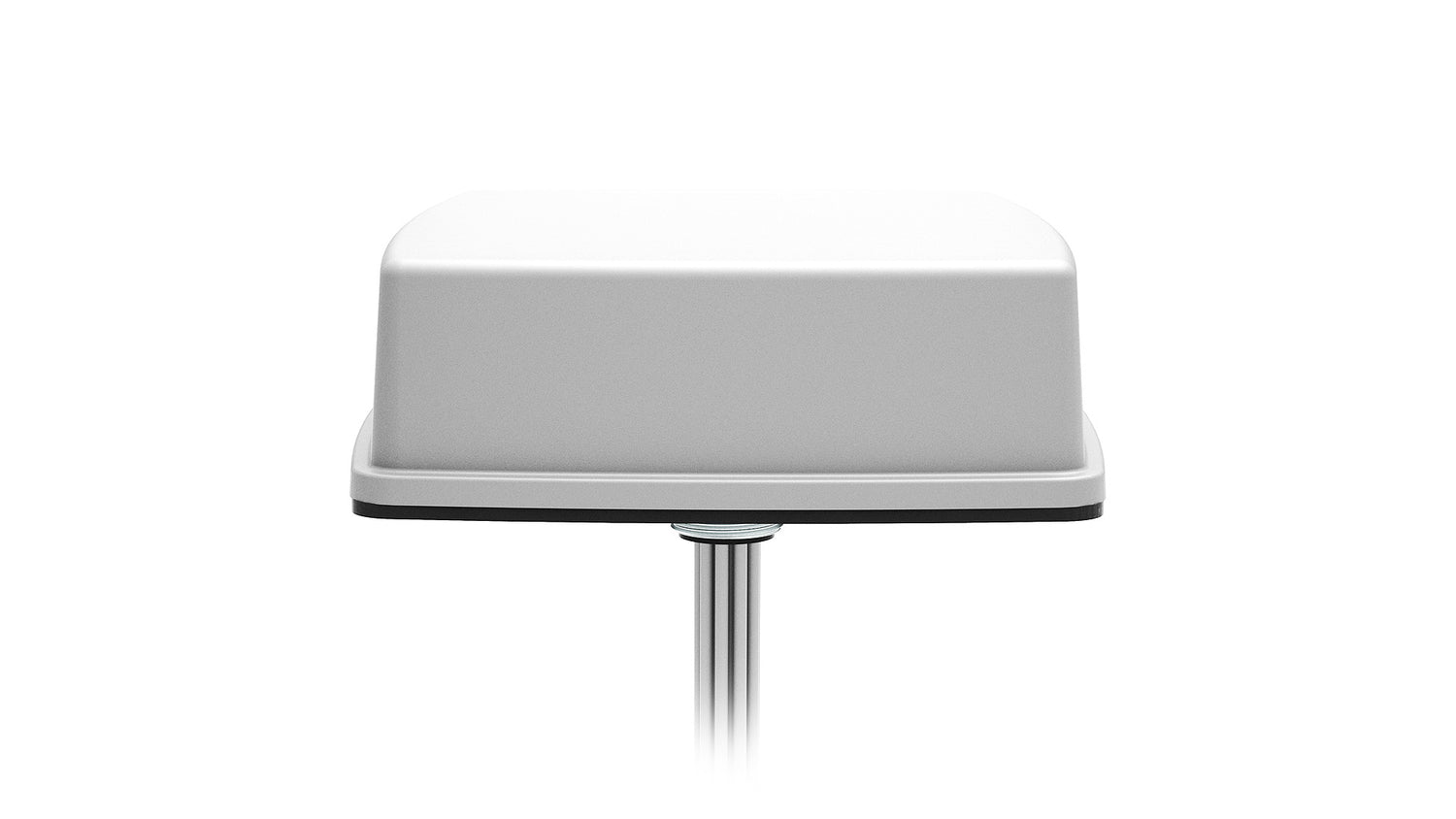

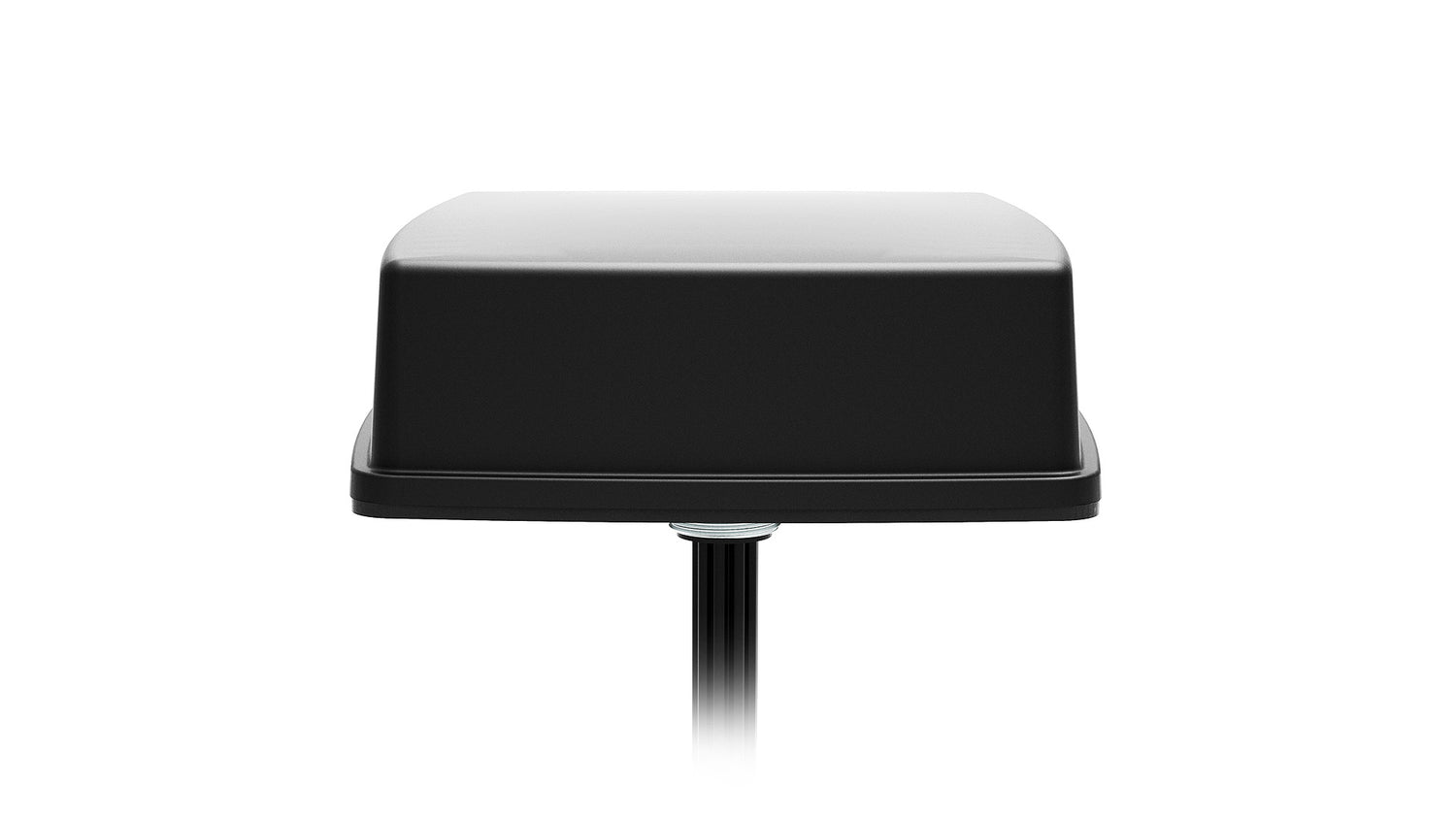

Diese bodenunabhängige Antenne kann einfach mit der Schraubbefestigung installiert werden, die zuverlässige und dauerhafte Montage an Fahrzeugen oder anderen Strukturen gewährleistet. Das flache Gehäuse misst nur 53 mm in der Höhe und wird aus IP67/IP69 zertifiziertem ASA UV-stabilem Material gefertigt, das Haltbarkeit mit höchstem Schutz gegen Wasser- und Feuchtigkeitseinwirkung bietet.
2J6B85Be Konnektivitäten sind standardmäßig SMA-Stecker (5GNR)/ SMA-Stecker-RP (WIFI 6E / WIFI 7 ISM) und werden mit 300 cm langen verlustarmen D302-Kabeln (5GNR/WIFI 6E / WIFI 7 ISM) geliefert, können aber nach Bedarf angepasst werden. Alle Kabel führen von einer Seite des Antennengehäuses und sind für optimale Leistung abgestimmt. Wir bieten eine breite Palette alternativer Stecker und Kabel, um alle Anpassungswünsche zu erfüllen. Bitte kontaktieren Sie unsere hochqualifizierten Ingenieure für Unterstützung bei der Antennenauswahl oder Anpassungsanforderungen.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN & IoT-Kommunikation: LPWA, SigFox, LoRa
Befestigung: Schraubbefestigung
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 199 × 167 × 53 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Effizienz (%): ~40.0, ~45.7, ~44.2, ~36.8
Spitzenverstärkung (dBi): ~3.0, ~5.0, ~4.6, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Effizienz (%): ~34.1, ~48.2, ~43.7, ~37.8
Spitzenverstärkung (dBi): ~1.1, ~4.8, ~5.1, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Effizienz (%): ~36.4, ~45.6, ~41.2, ~38.7
Spitzenverstärkung (dBi): ~3.0, ~4.9, ~4.5, ~4.8
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Effizienz (%): ~35.8, ~55.4, ~51.0, ~44.6
Spitzenverstärkung (dBi): ~2.3, ~5.1, ~5.2, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 5 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.5:1
Effizienz (%): ~55.6, ~51.9, ~37.5
Spitzenverstärkung (dBi): ~4.3, ~6.7, ~6.3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 6 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Effizienz (%): ~50.0, ~49.7, ~41.1
Spitzenverstärkung (dBi): ~4.1, ~6.8, ~6.1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 7 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Effizienz (%): ~58.0, ~49.7, ~36.5
Spitzenverstärkung (dBi): ~4.4, ~6.7, ~5.6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 8 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.3:1, ~1.5:1
Effizienz (%): ~52.2, ~44.0, ~33.8
Spitzenverstärkung (dBi): ~4.2, ~8.0, ~6.6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
