Diese hocheffiziente 8-in-1 Mastbefestigungsantenne ist für fortschrittliche 5G- und W-lan 6E/7-Konnektivitäten im Bereich von 617 MHz bis 7125 MHz ausgelegt. Ihr ultrabreites MIMO-Design gewährleistet zuverlässige, schnelle Datenübertragung und robuste Leistung in anspruchsvollen Umgebungen. Die Antenne ist ideal für mobile Router, öffentliche Sicherheit, Transport, industrielle Automatisierung und kritische Kommunikation, bei denen unterbrechungsfreie Konnektivität unerlässlich ist. Das flache, bodenunabhängige Gehäuse ist IP67/IP69 zertifiziert für maximale Haltbarkeit und Schutz gegen Wasser- und UV-Einwirkung. Die Antenne unterstützt Multi-User-MIMO-Anwendungen und liefert ausgezeichnete Signalqualität und Abdeckung für Mobilfunk- und W-lan-Netzwerke.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
4× 2,4-5,0-6,0 GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Stecker & Kabel
-
Steckertyp: SMA-Stecker/RPSMA-Stecker
-
Kabellänge: 300 cm
-
Kabeltyp: D302
Installation / Umwelt

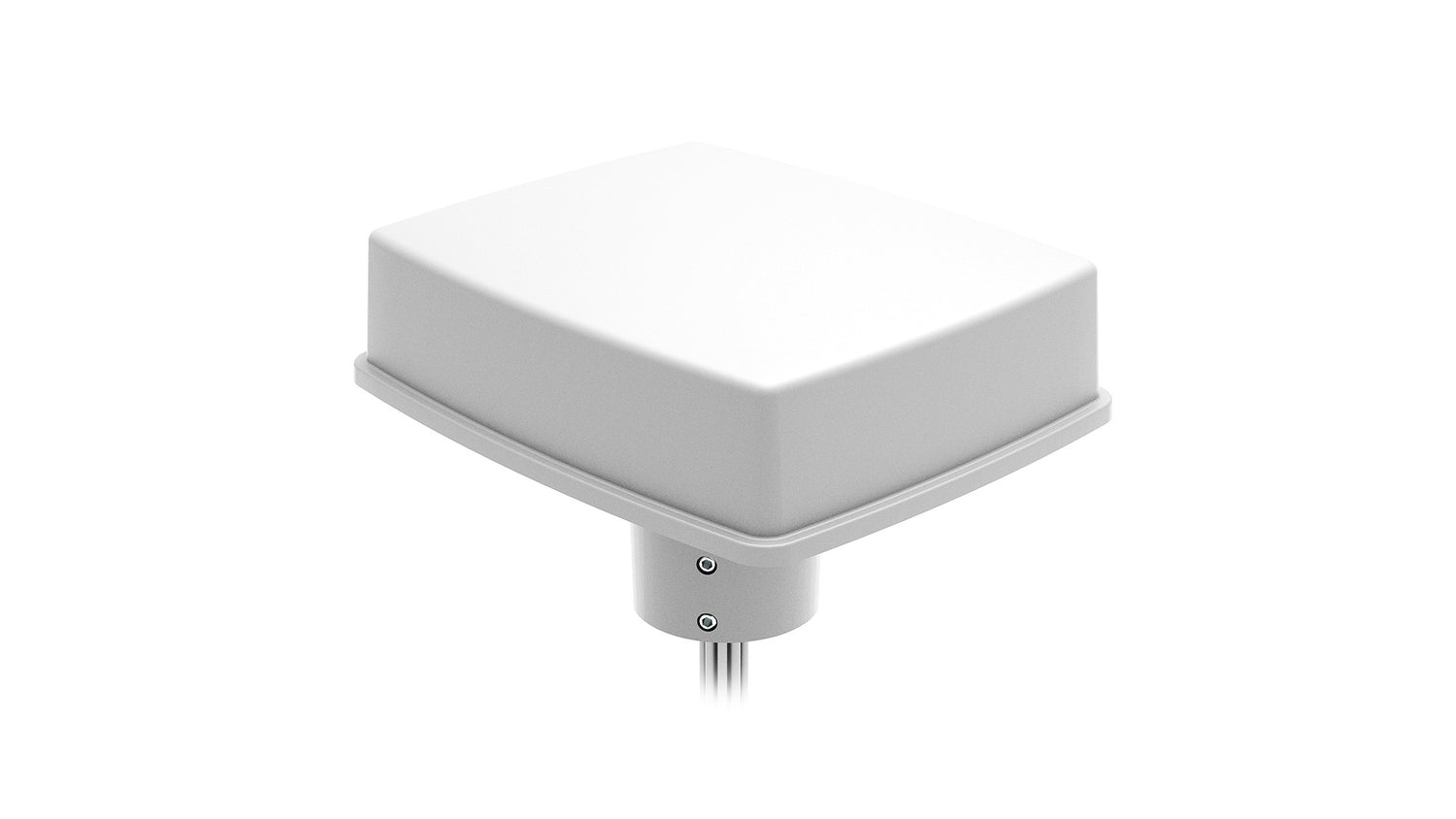

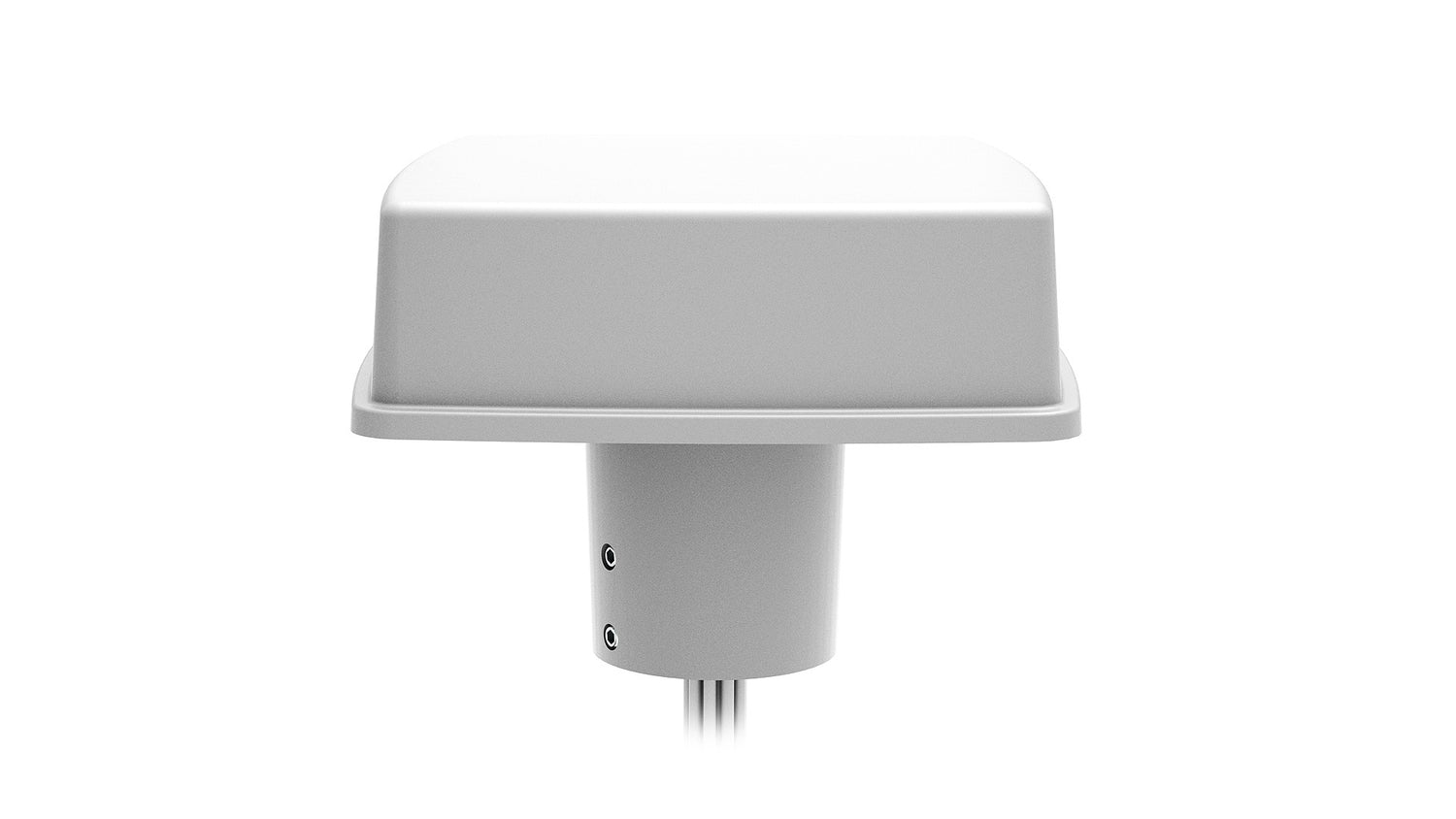

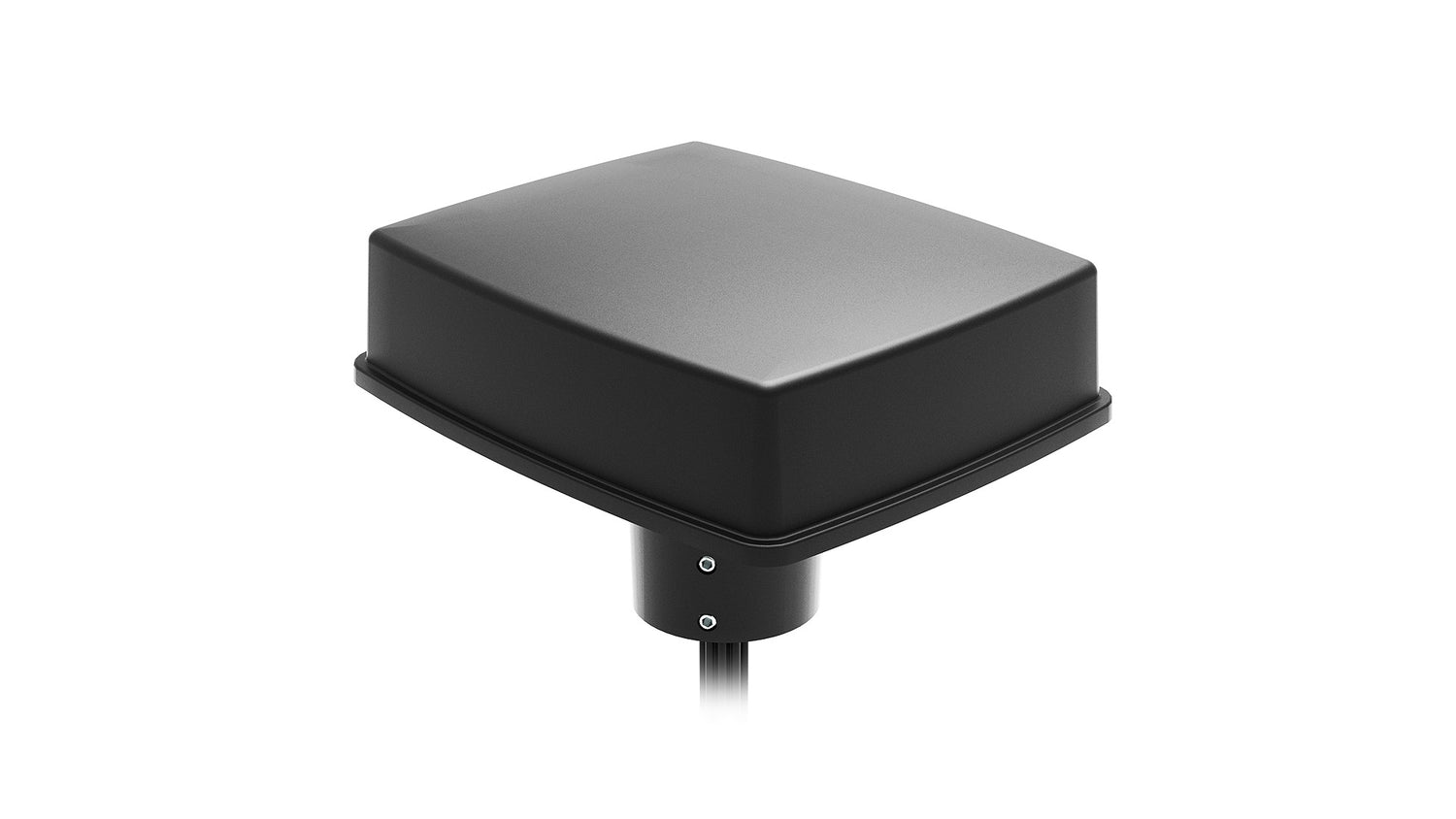

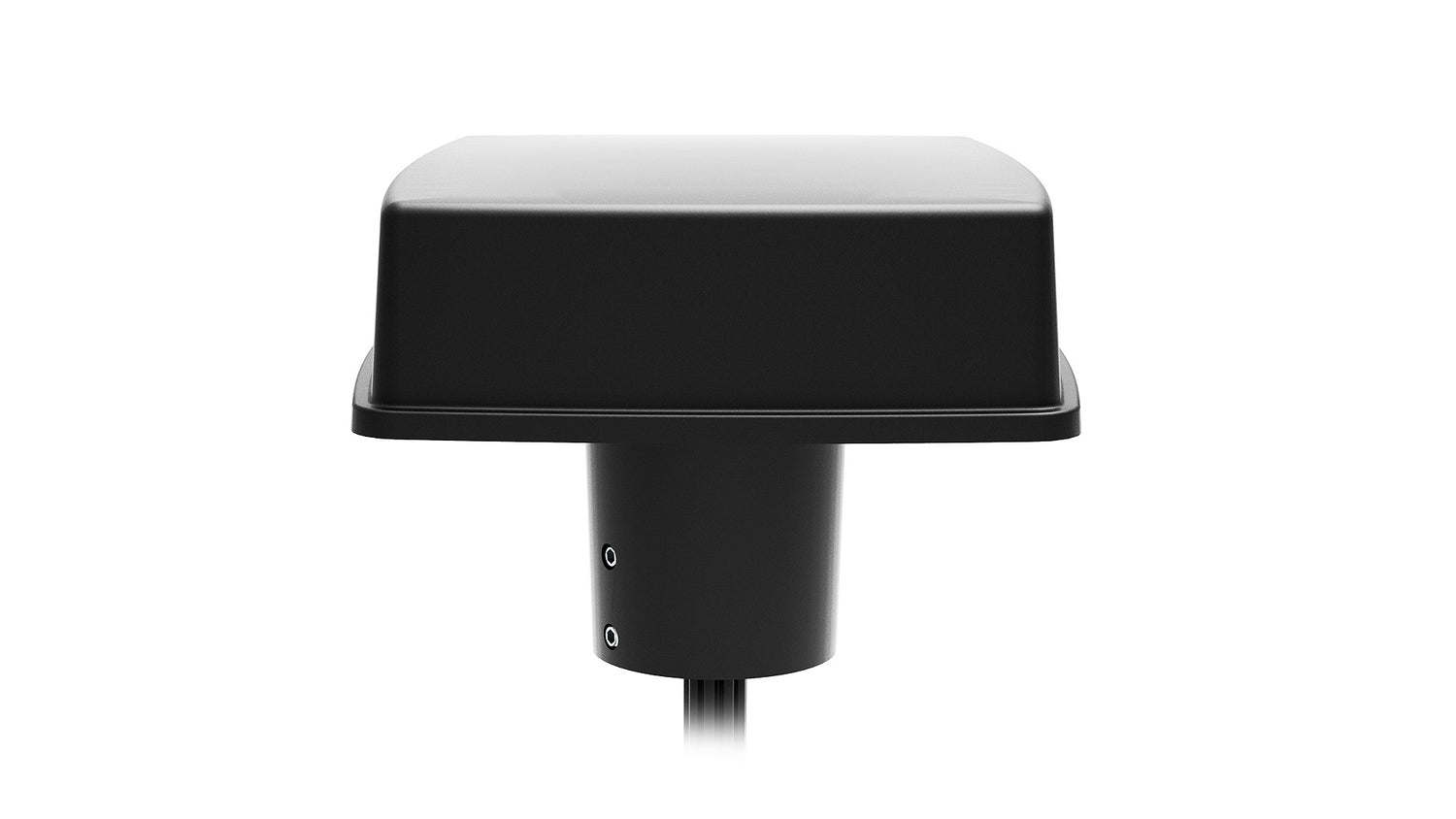

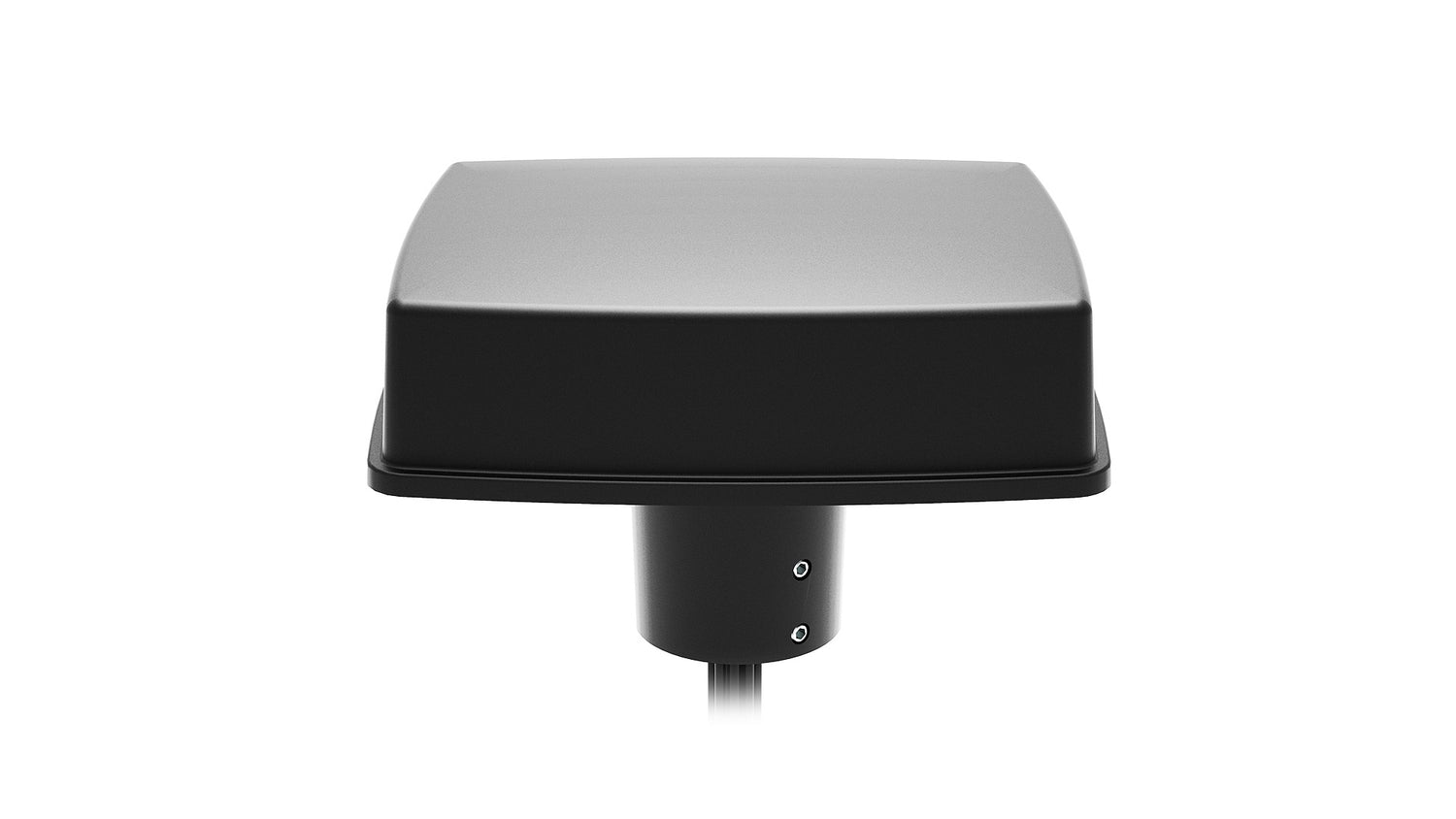

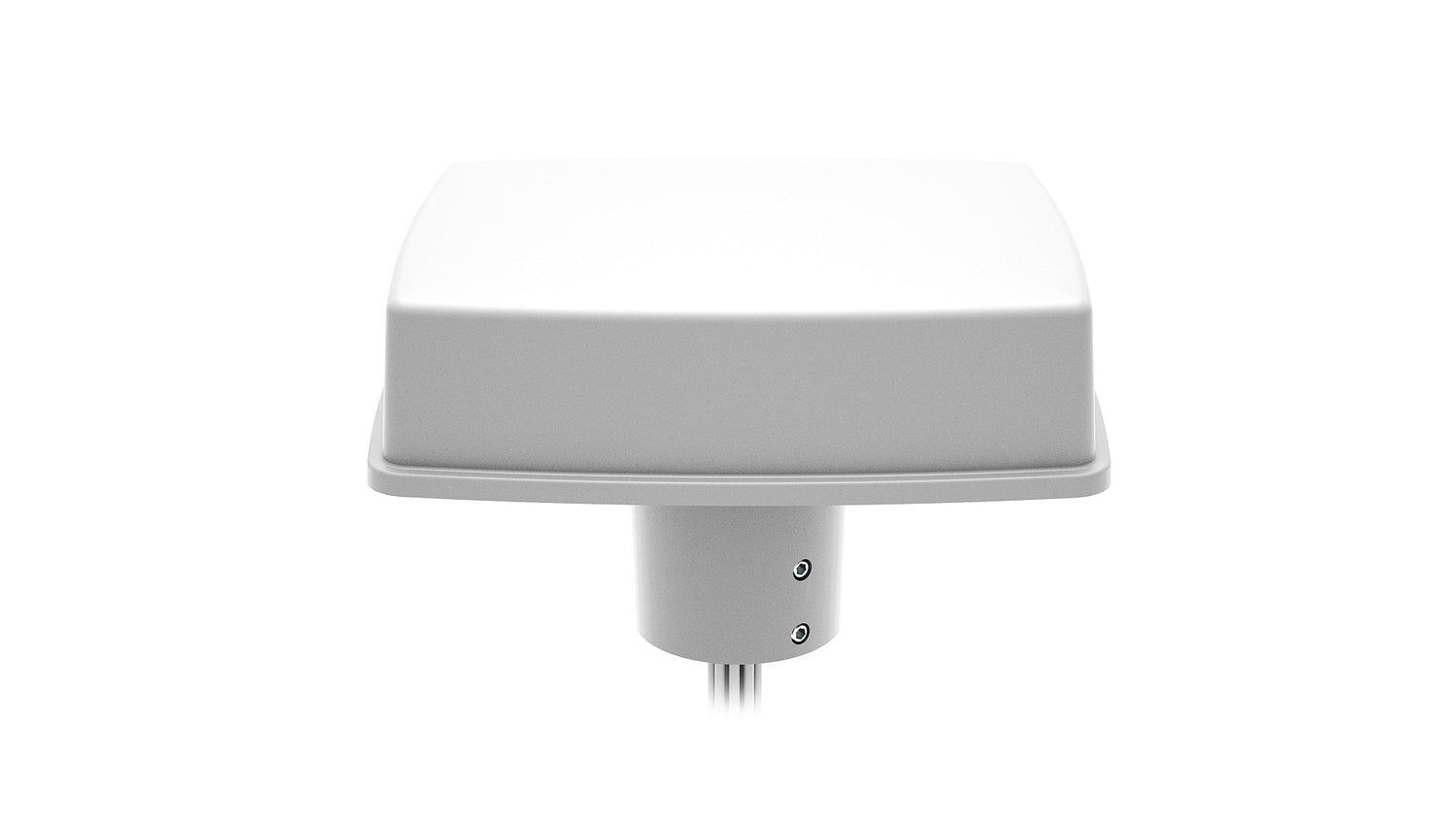

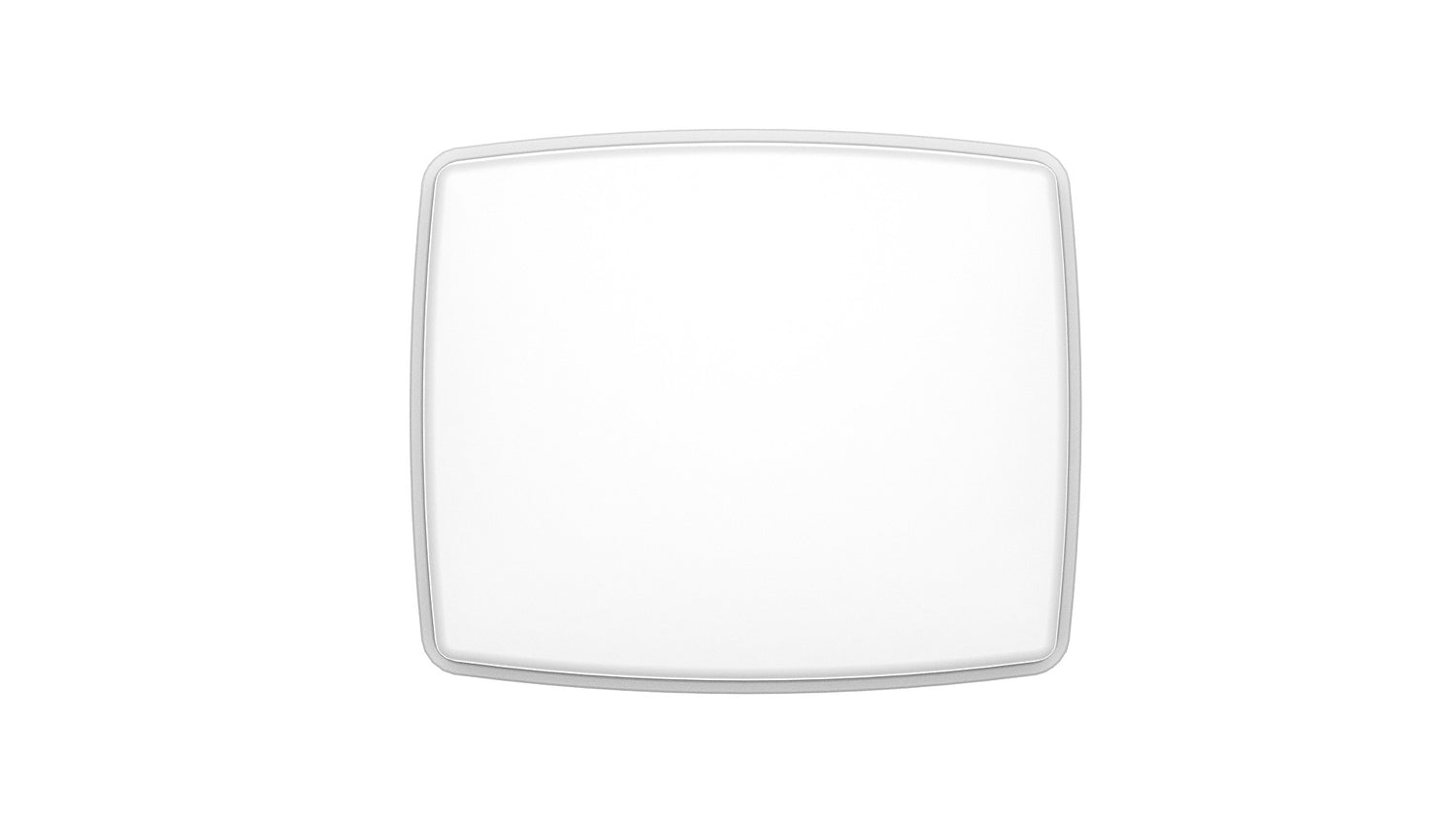

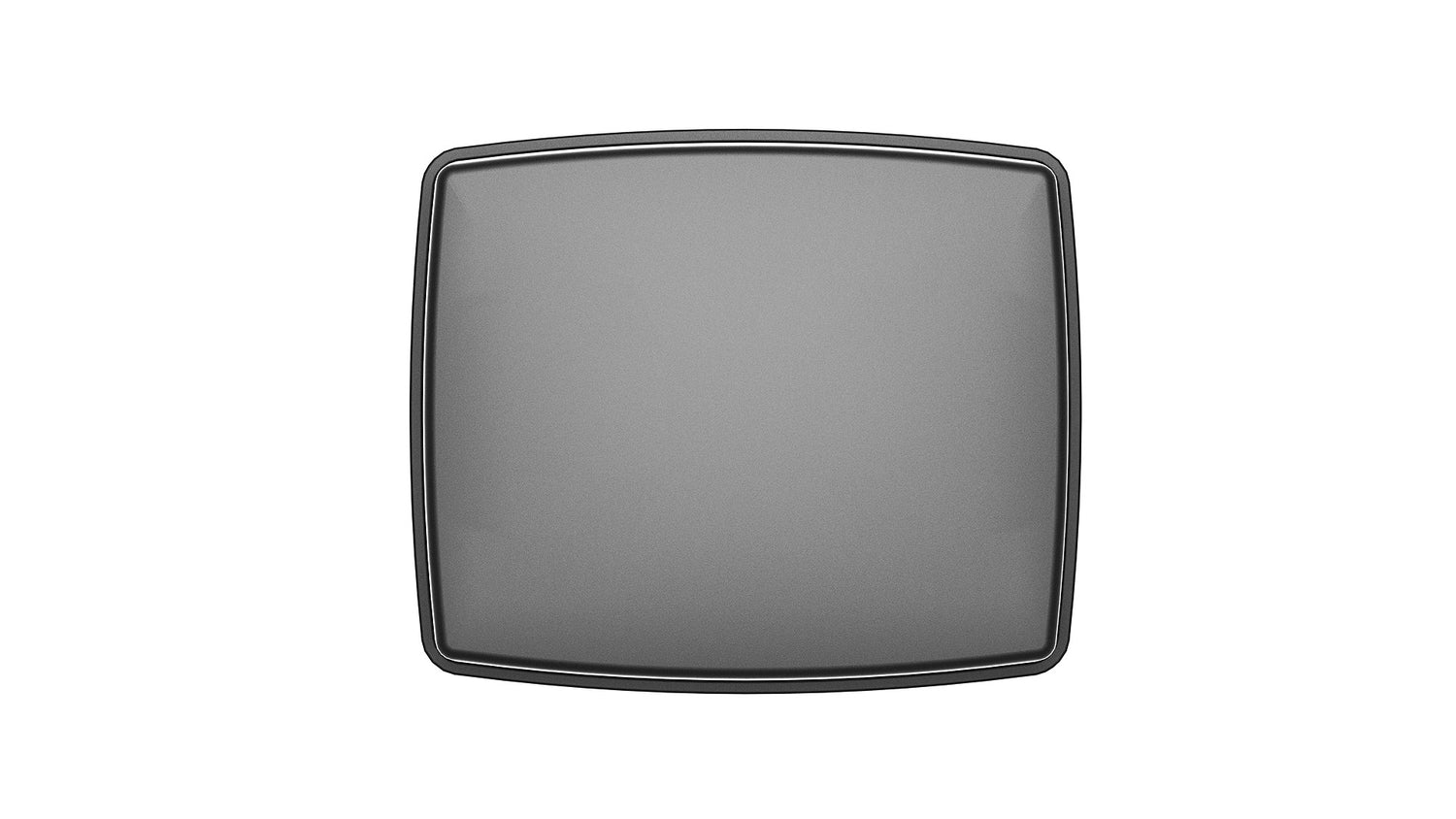

Diese bodenunabhängige Antenne kann einfach mit dem Mastbefestigungsadapter installiert werden, der zuverlässige und dauerhafte Installationen an Fahrzeugen oder anderen Strukturen gewährleistet. Das flache Gehäuse misst nur 53 mm in der Höhe und wird aus IP67/IP69 zertifiziertem ASA UV-beständigem Material hergestellt, das Haltbarkeit mit höchstem Schutz gegen Wasser- und Feuchtigkeitseinwirkung bietet.
2J6B85JBe-B16J Konnektivitäten sind standardmäßig SMA-Stecker (5GNR)/ SMA-Stecker-RP (WIFI 6E / WIFI 7 ISM) und werden mit 300 cm langen verlustarmen D302-Kabeln (5GNR/WIFI 6E / WIFI 7 ISM) geliefert, können aber bei Bedarf angepasst werden. Alle Kabel führen von einer Seite des Antennengehäuses und sind für optimale Leistung abgestimmt. Wir bieten eine breite Palette alternativer Stecker und Kabel, um alle Anpassungswünsche zu erfüllen. Bitte kontaktieren Sie unsere hochqualifizierten Ingenieure für Unterstützung bei der Antennenauswahl oder Anpassungsanforderungen.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, SigFox, LoRa
Befestigung: Schraubbefestigung, Mastbefestigung
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 199 × 167 × 123 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Effizienz (%): ~40.0, ~45.7, ~44.2, ~36.8
Spitzenverstärkung (dBi): ~3.0, ~5.0, ~4.6, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Effizienz (%): ~34.1, ~48.2, ~43.7, ~37.8
Spitzenverstärkung (dBi): ~1.1, ~4.8, ~5.1, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Effizienz (%): ~36.4, ~45.6, ~41.2, ~38.7
Spitzenverstärkung (dBi): ~3.0, ~4.9, ~4.5, ~4.8
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Rückflussdämpfung (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Effizienz (%): ~35.8, ~55.4, ~51.0, ~44.6
Spitzenverstärkung (dBi): ~2.3, ~5.1, ~5.2, ~5.0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 5 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.5:1, ~1.2:1, ~1.5:1
Effizienz (%): ~55.6, ~51.9, ~37.5
Spitzenverstärkung (dBi): ~4.3, ~6.7, ~6.3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 6 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Effizienz (%): ~50.0, ~49.7, ~41.1
Spitzenverstärkung (dBi): ~4.1, ~6.8, ~6.1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 7 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Effizienz (%): ~58.0, ~49.7, ~36.5
Spitzenverstärkung (dBi): ~4.4, ~6.7, ~5.6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 8 - 2.4 / 5.0 / 6.0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.6:1, ~1.3:1, ~1.5:1
Effizienz (%): ~52.2, ~44.0, ~33.8
Spitzenverstärkung (dBi): ~4.2, ~8.0, ~6.6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
