Diese hocheffiziente 8-in-1 Mastbefestigungsantenne ist für fortschrittliche 5G-, W-lan 6E/7- und GNSS-Konnektivitäten im Bereich von 617 MHz bis 7125 MHz ausgelegt. Ihr ultrabreites MIMO-Design sorgt für robuste, zuverlässige Leistung bei kritischen Kommunikations-, mobilen Netzwerk- und Navigationsanwendungen und ist ideal für anspruchsvolle Einsatzbereiche wie öffentliche Sicherheit, Transport, industrielle Automatisierung und Flottenmanagement. Die Antenne unterstützt MU-MIMO für Mehrbenutzerumgebungen, bietet hohe Verstärkung und Effizienz und ist bodenunabhängig für flexible Installation. Ihr flaches, robustes Gehäuse ist IP67/IP69 zertifiziert für maximalen Schutz gegen Wasser und Staub und gewährleistet langfristige Haltbarkeit in rauen Umgebungen.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
3× 2.4-5.0-6.0GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
Stecker & Kabel
-
Steckertyp: SMA-Stecker (5GNR & GNSS), RPSMA-Stecker (W-lan 6E/7 ISM)
-
Kabellänge: 300cm
-
Kabeltyp: D302 (5GNR/W-lan 6E/7 ISM), LL100 (GNSS)
Installation / Umwelt

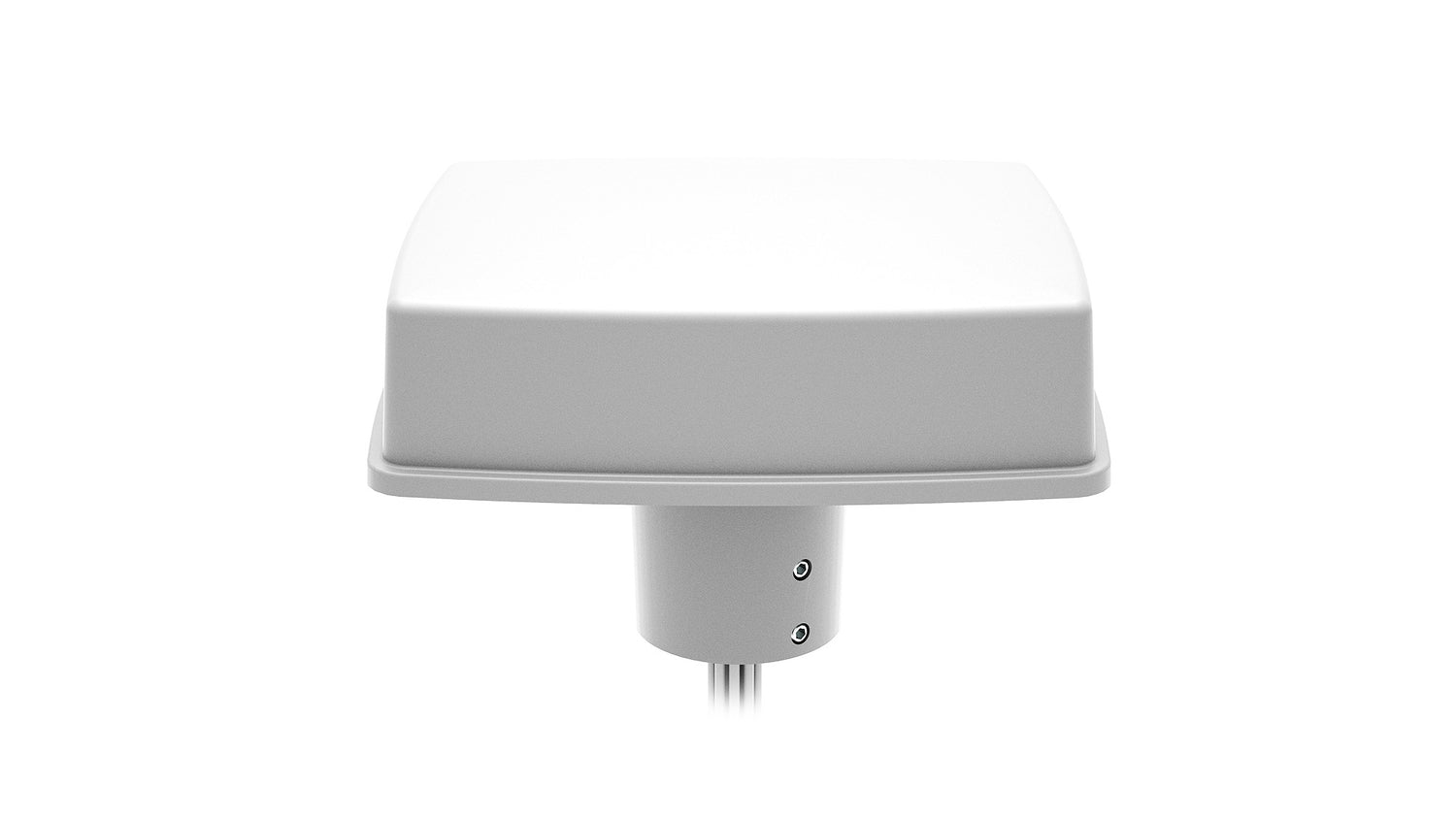

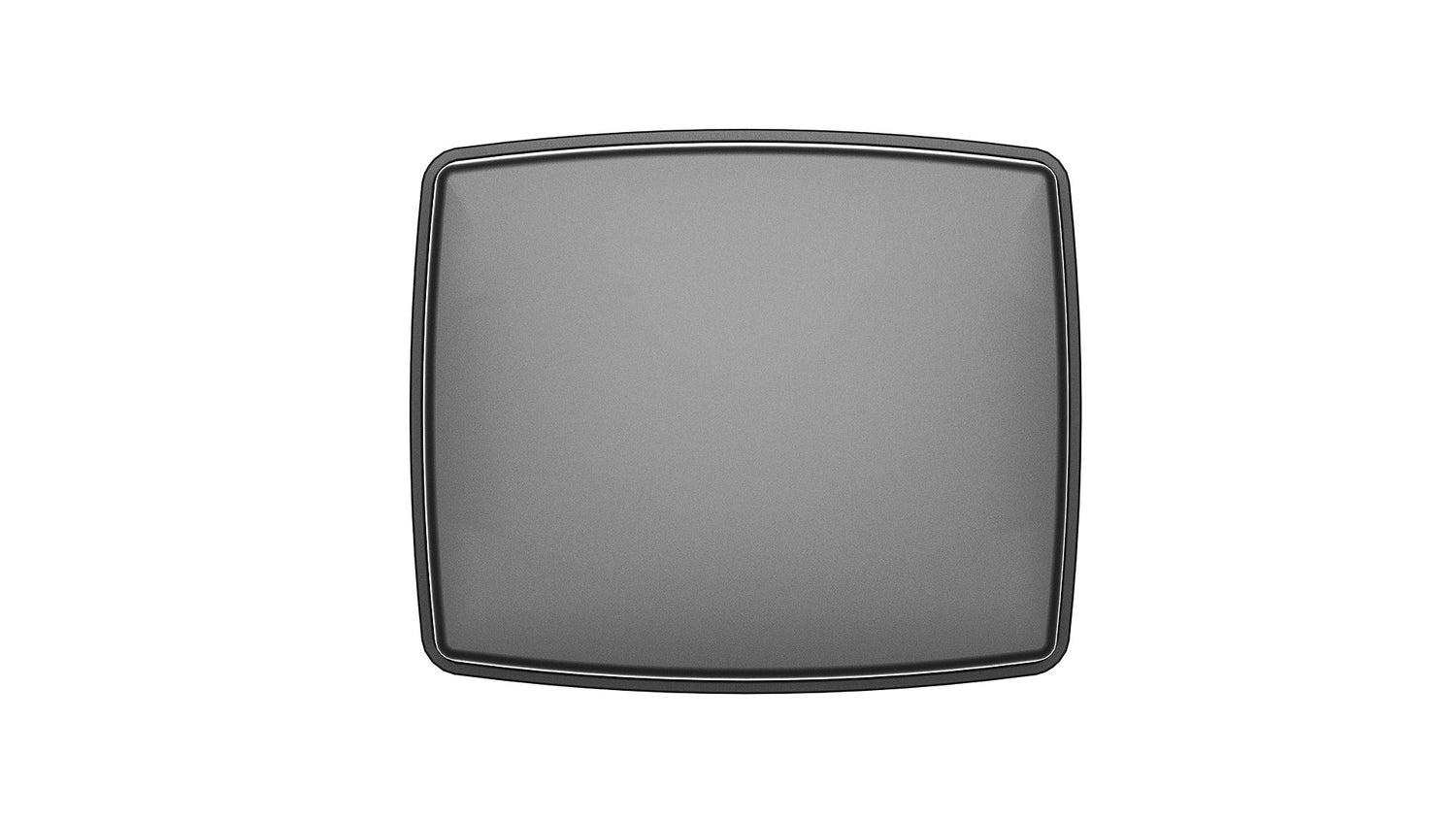

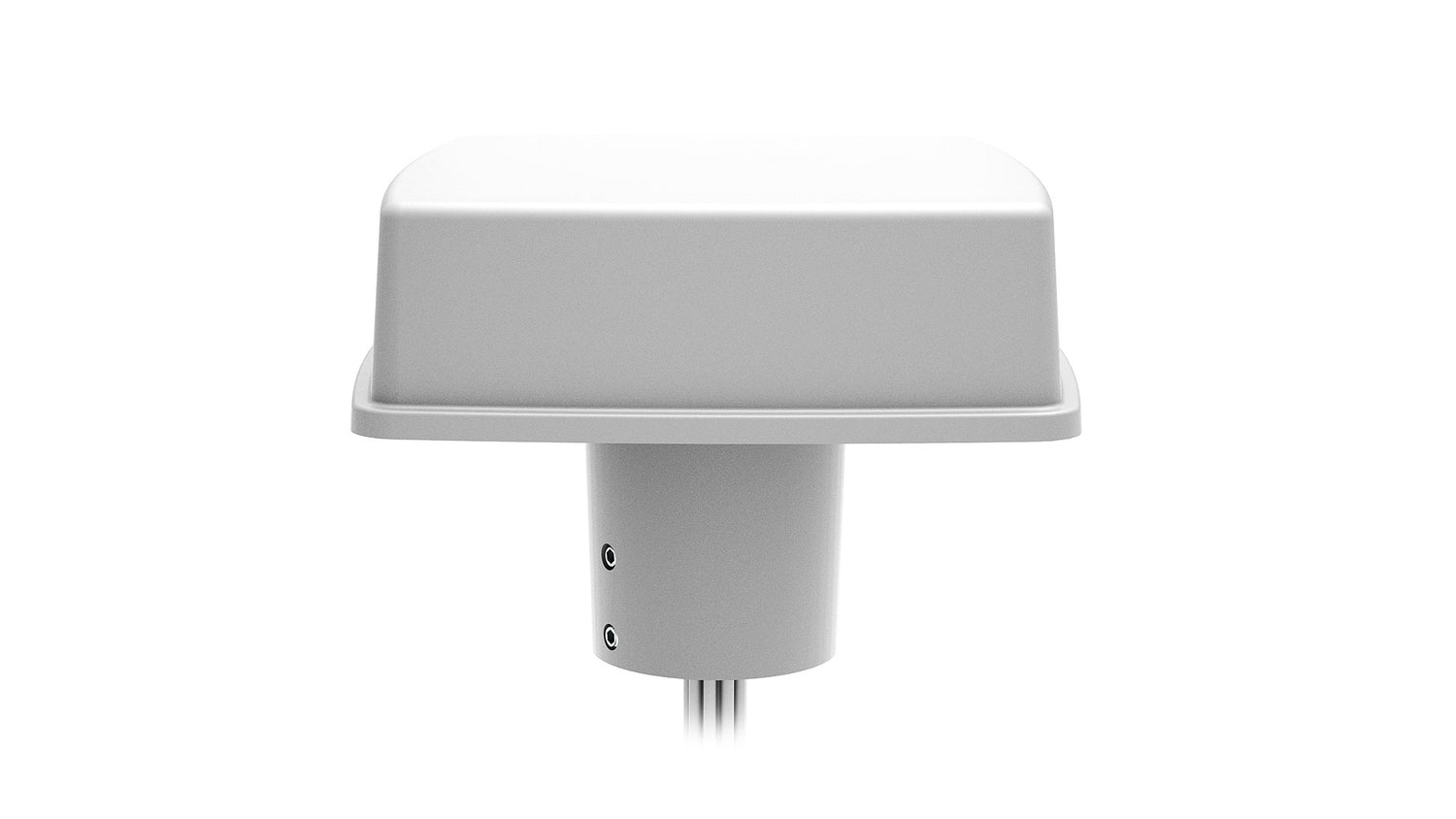

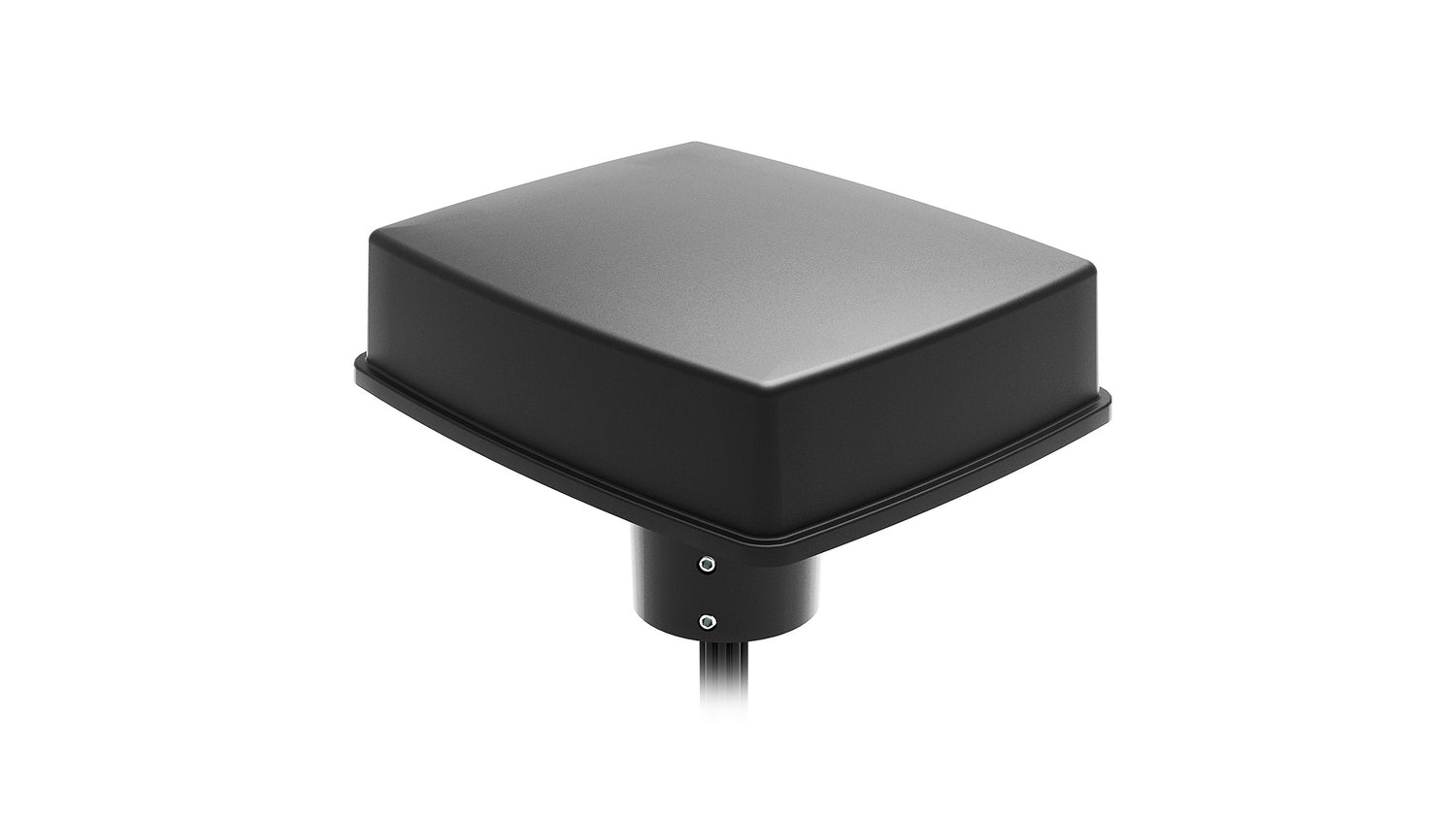

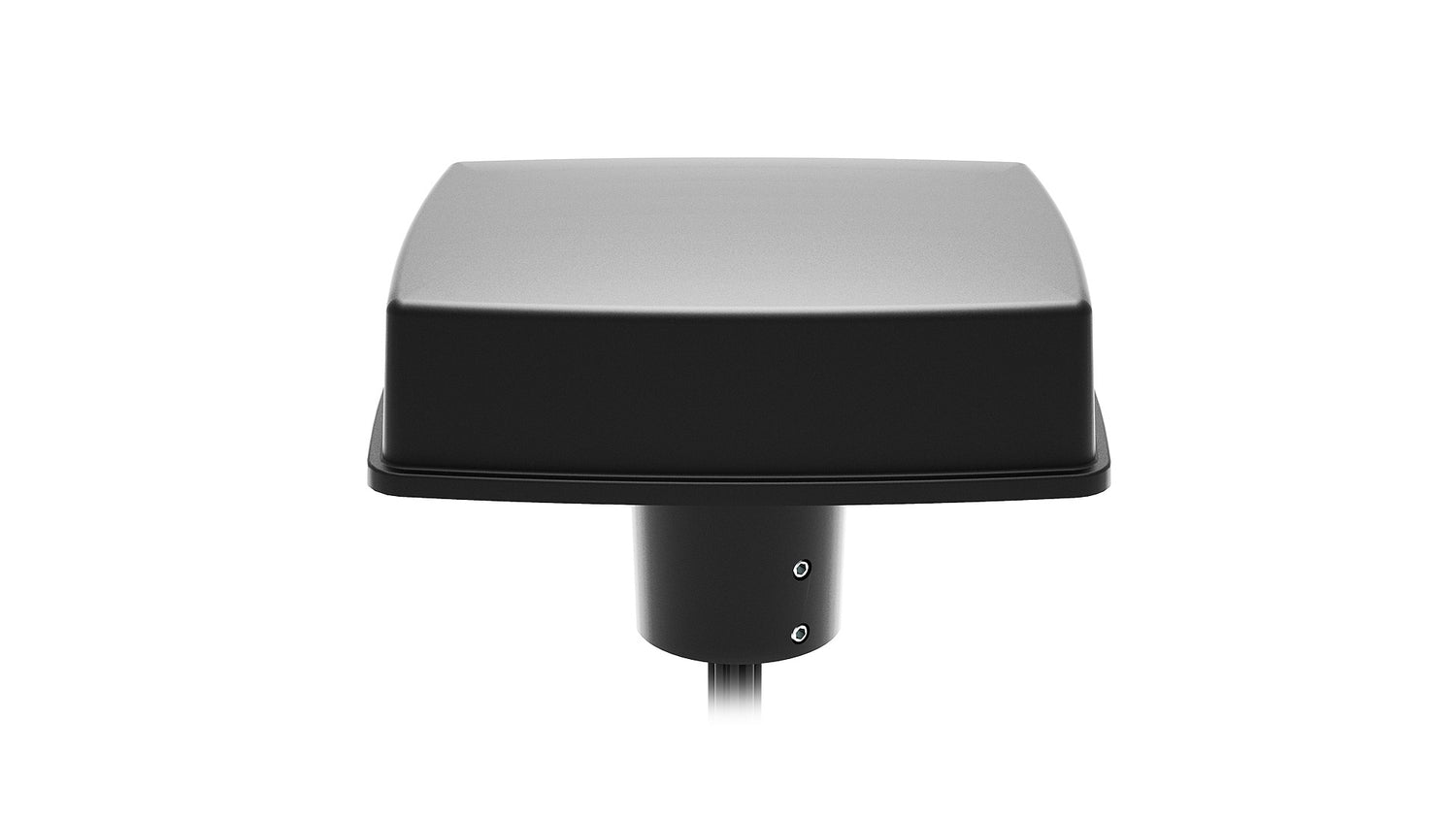

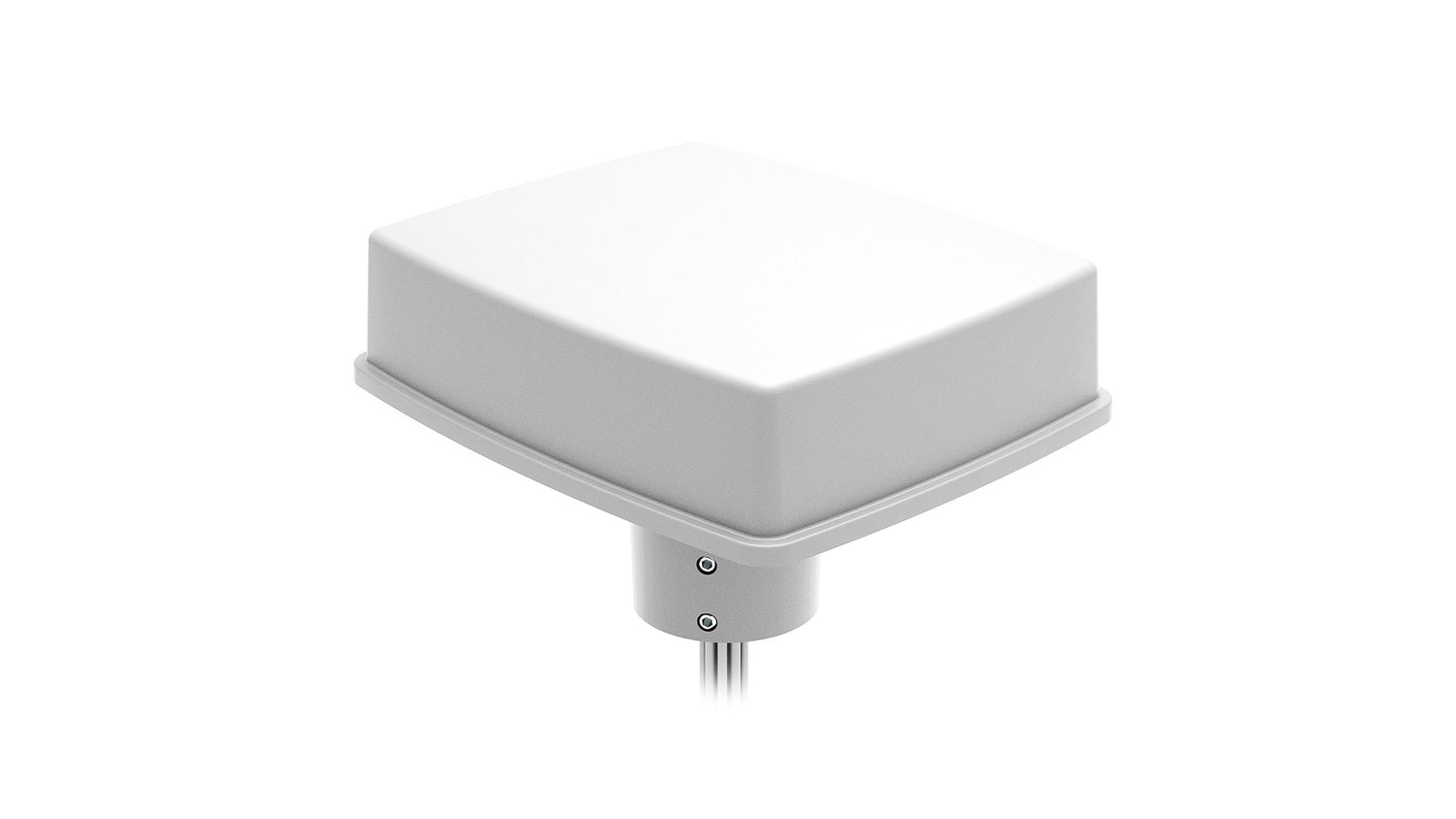

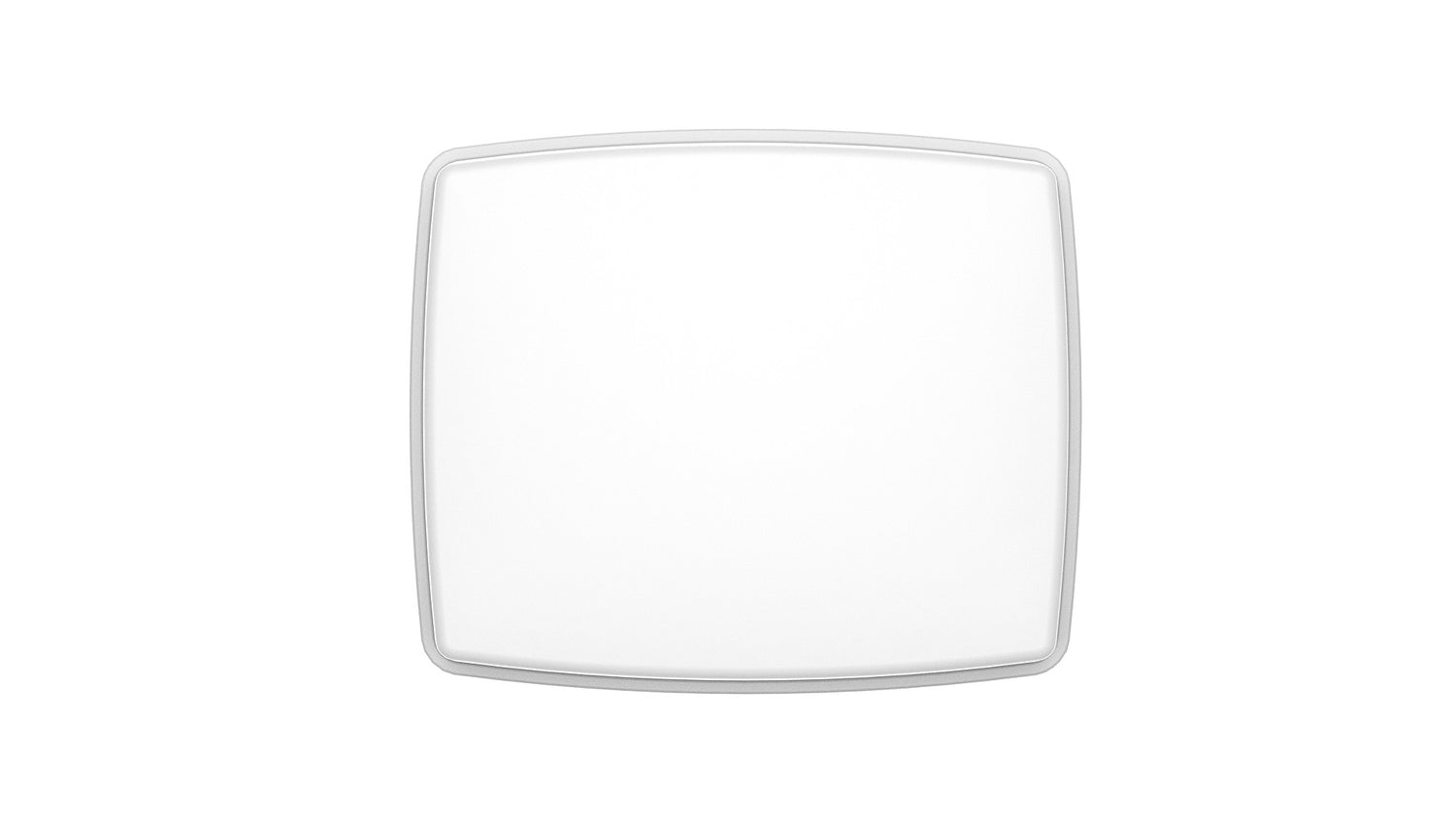

Diese bodenunabhängige Antenne kann einfach mit dem Mastbefestigungsadapter installiert werden, der zuverlässige und dauerhafte Installationen an Fahrzeugen oder anderen Strukturen gewährleistet. Das flache Gehäuse misst nur 53 mm in der Höhe und wird aus IP67/IP69 zertifiziertem ASA UV-stabilem Material gefertigt, das Haltbarkeit mit höchstem Schutz gegen Wasser- und Feuchtigkeitseinwirkung bietet. 2J6B86JBGFg-B16J Konnektivitäten sind standardmäßig SMA-Stecker (5GNR & GNSS)/ SMA-Stecker-RP (W-lan 6E / W-lan 7 ISM) und werden mit 300 cm langen verlustarmen D302 (5GNR/W-lan 6E / W-lan 7 ISM)/ LL100 (GNSS) Kabeln geliefert, können aber bei Bedarf angepasst werden. Wir bieten eine breite Palette alternativer Stecker und Kabel, um alle Anpassungswünsche zu erfüllen. Bitte kontaktieren Sie unsere hochqualifizierten Ingenieure für Unterstützung bei der Antennenauswahl oder Anpassungsanforderungen.
Technische Spezifikationen
Betriebstemperatur: -40°C bis +85°C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Standort: Außen
LPWAN- & IoT-Kommunikation: LPWA, SigFox, LoRa
Befestigung: Schraubbefestigung, Mastbefestigung
Satellitennavigation: GNSS
Kurzstrecken-Funkstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 199 × 167 × 53 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Effizienz (%): ~37.9, ~45.7, ~44.2, ~36.0
Spitzenverstärkung (dBi): ~3,1, ~5,4, ~5,6, ~5,3
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-12,8, ~-15,3, ~-18,5, ~-10,8
VSWR: ~1,9:1, ~1,6:1, ~1,4:1, ~1,9:1
Effizienz (%): ~28,9, ~48,2, ~43,5, ~36,8
Spitzenverstärkung (dBi): ~1,0, ~5,3, ~6,1, ~5,0
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-12,7, ~-14,6, ~-19,7, ~-13,5
VSWR: ~1,9:1, ~1,6:1, ~1,3:1, ~1,6:1
Effizienz (%): ~35,4, ~45,6, ~40,9, ~38,8
Spitzenverstärkung (dBi): ~3,2, ~5,3, ~5,5, ~5,6
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-11,8, ~-15,4, ~-20,5, ~-12,8
VSWR: ~1,9:1, ~1,5:1, ~1,3:1, ~1,6:1
Effizienz (%): ~34,8, ~55,4, ~51,0, ~44,8
Spitzenverstärkung (dBi): ~2,5, ~6,1, ~6,7, ~6,5
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 25
Konnektivität 5 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1,5:1, ~1,2:1, ~1,5:1
Effizienz (%): ~55,6, ~51,9, ~37,5
Spitzenverstärkung (dBi): ~4,3, ~6,7, ~6,3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 6 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1,5:1, ~1,2:1, ~1,6:1
Effizienz (%): ~50,0, ~49,7, ~41,1
Spitzenverstärkung (dBi): ~4,1, ~6,8, ~6,1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 7 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequenz: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1,5:1, ~1,2:1, ~1,6:1
Effizienz (%): ~58,0, ~49,7, ~36,5
Spitzenverstärkung (dBi): ~4,4, ~6,7, ~5,6
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 8 - GPS/GLONASS
Standards: GPS, GLONASS, QZSS, Galileo
Frequenz: 1575,42, 1598-1606 MHz
Passive Verstärkung (dBi): ~4,5, ~5,0
Impedanz (Ohm): 50
Strahlungsmuster: Halbkugelförmig
Spannungsbereich (V): 1,5 - 3,6
Aktive Verstärkung (dB): 28 @ 2,7 V
Rauschzahl (dB): 1,8 @ 2,7 V
Stromaufnahme (mA): 9 @ 2,7 V
Leistungsaufnahme (mW): 24,3 @ 2,7 V
Sägefiltertyp: Vorfilter
Außerbanddämpfung (dB): 43
ESD-Schutz (kV): 6
Datenblatt PDF herunterladen
