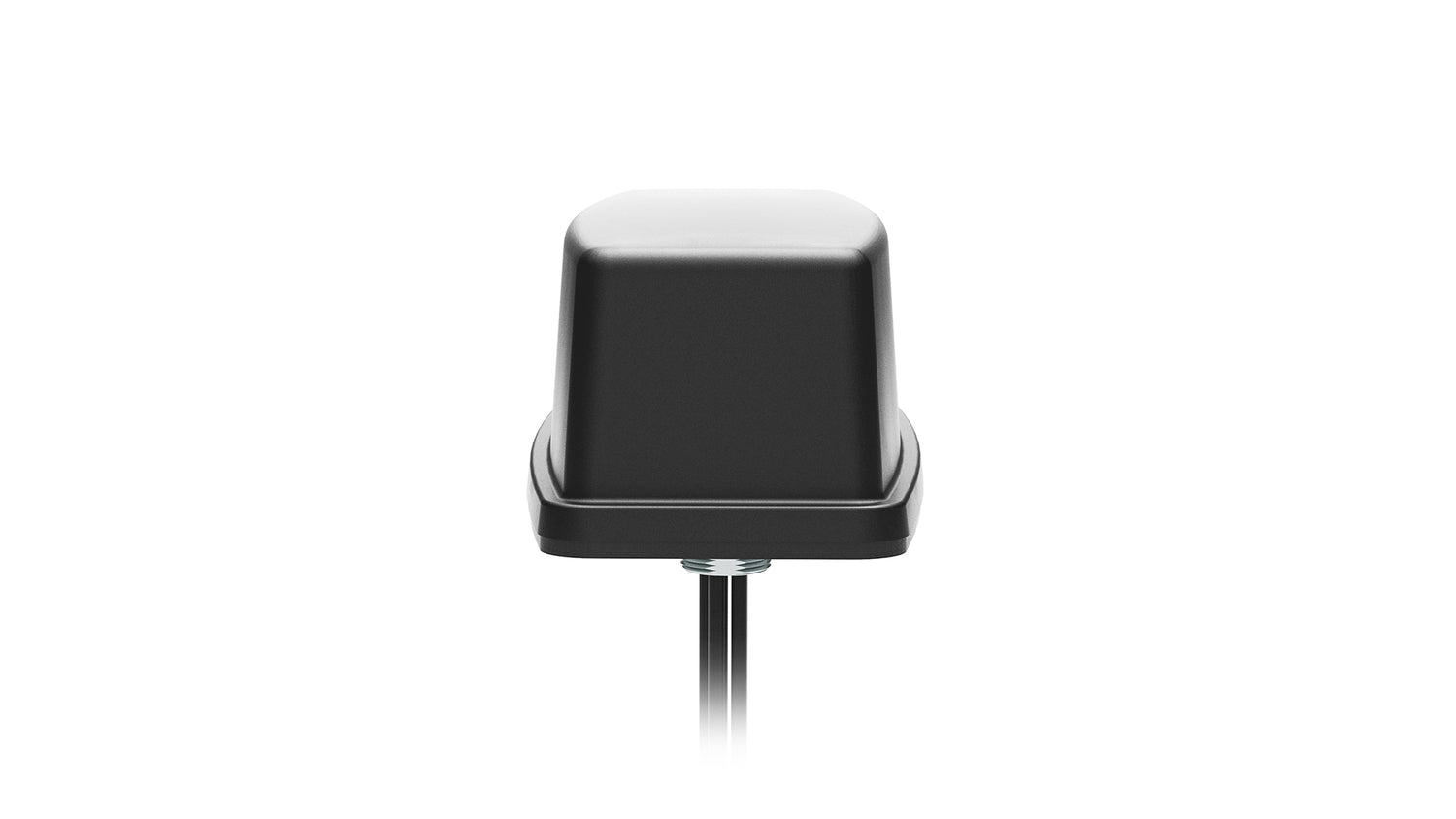

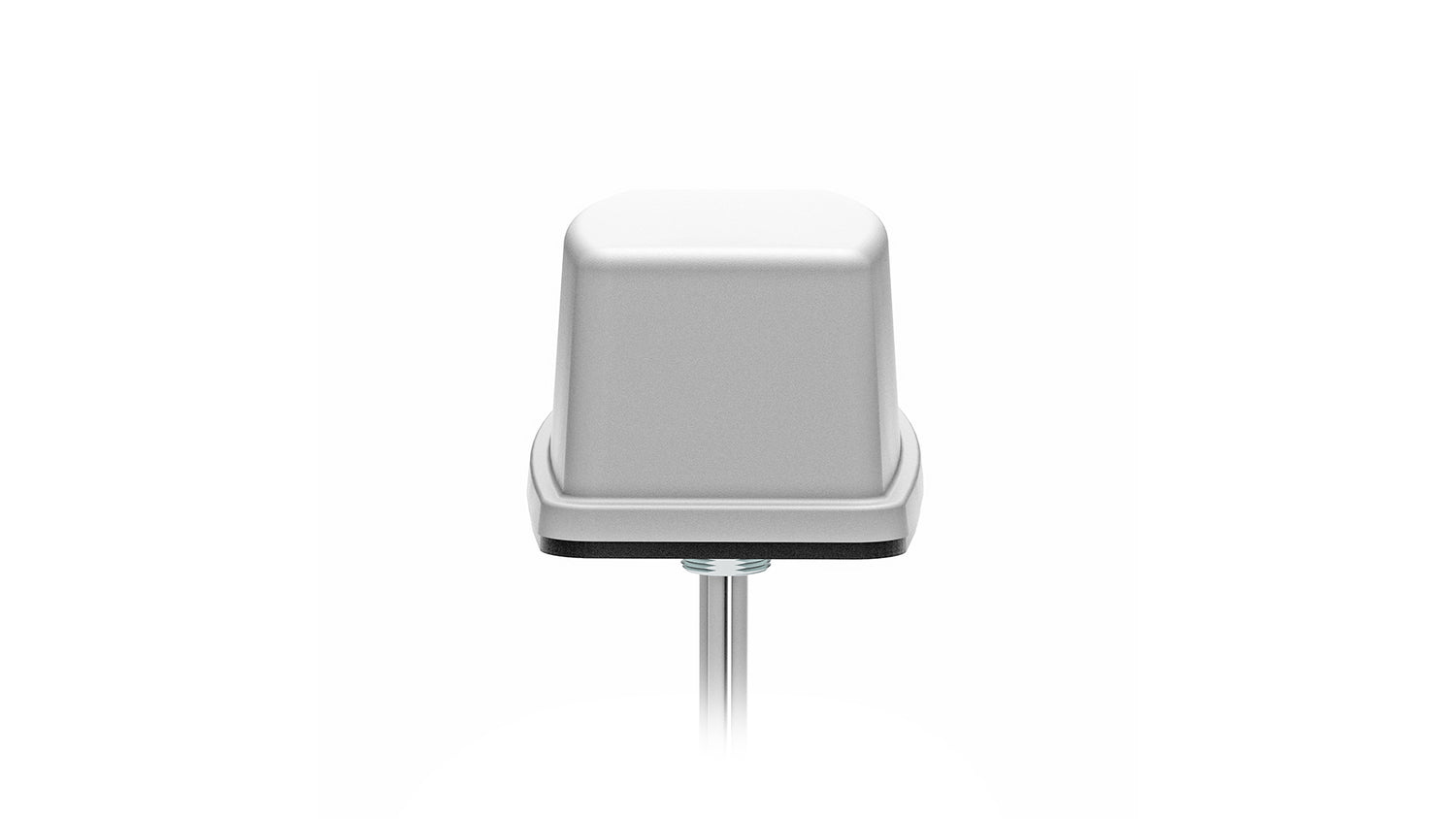

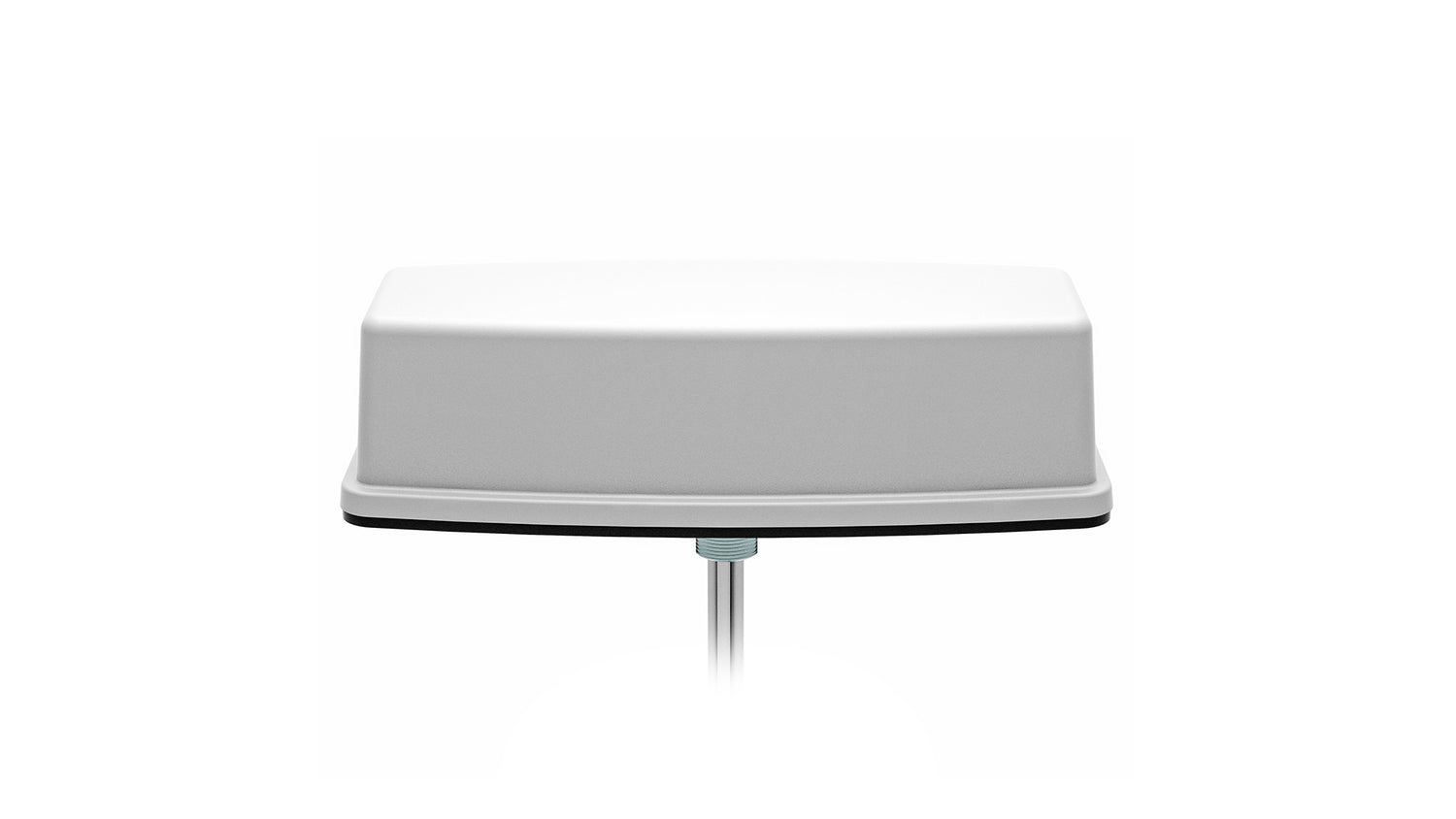

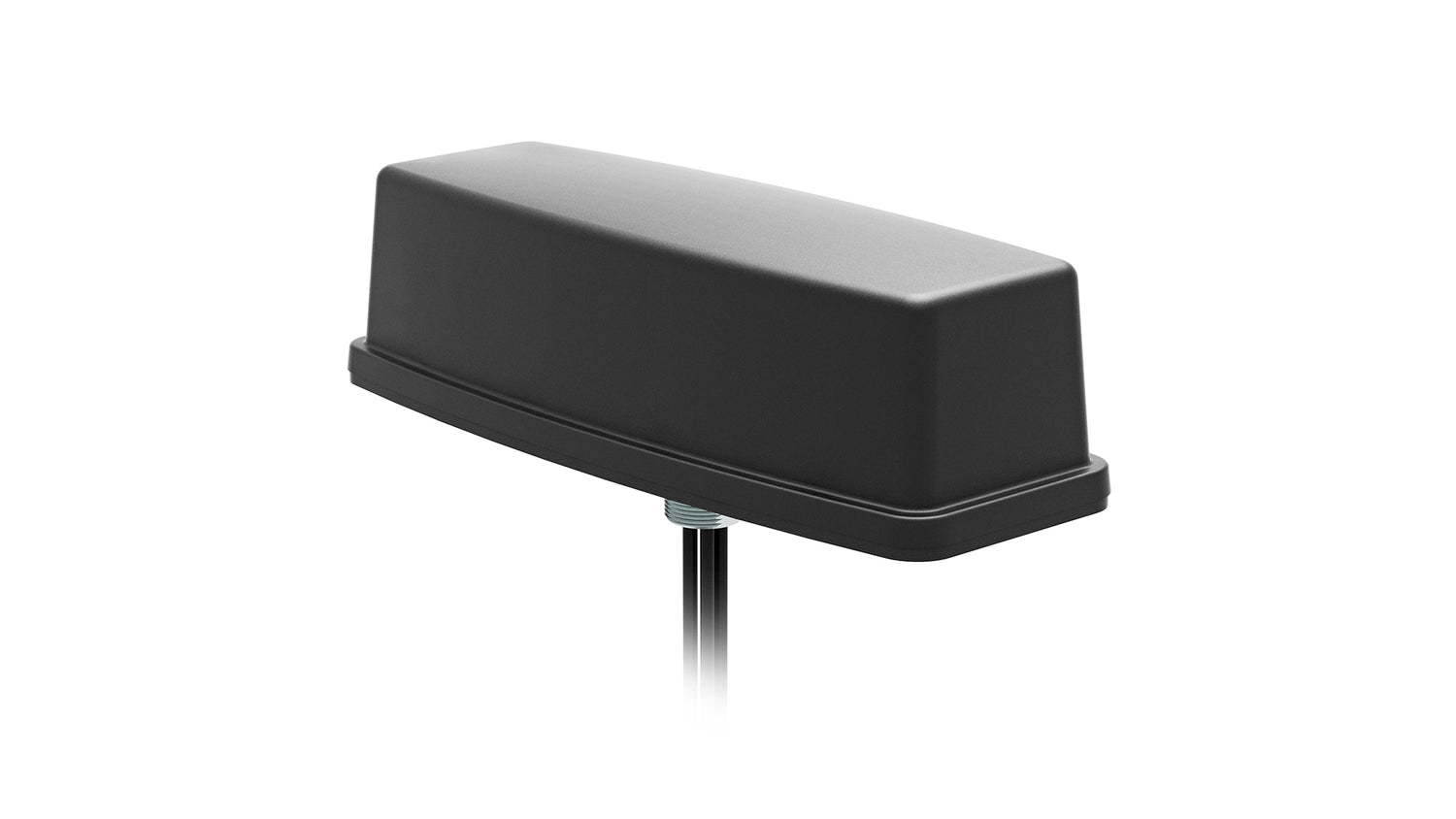

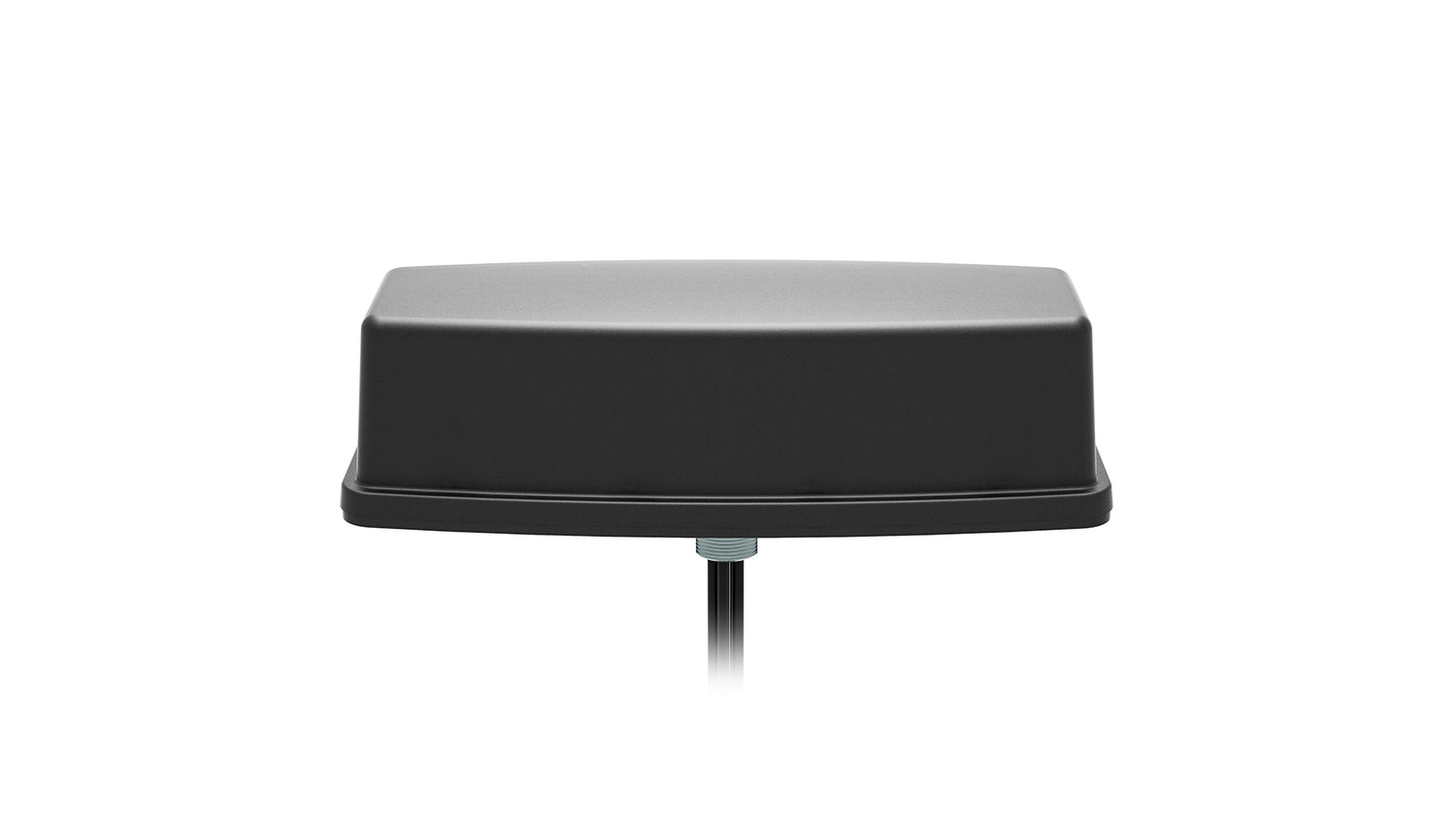

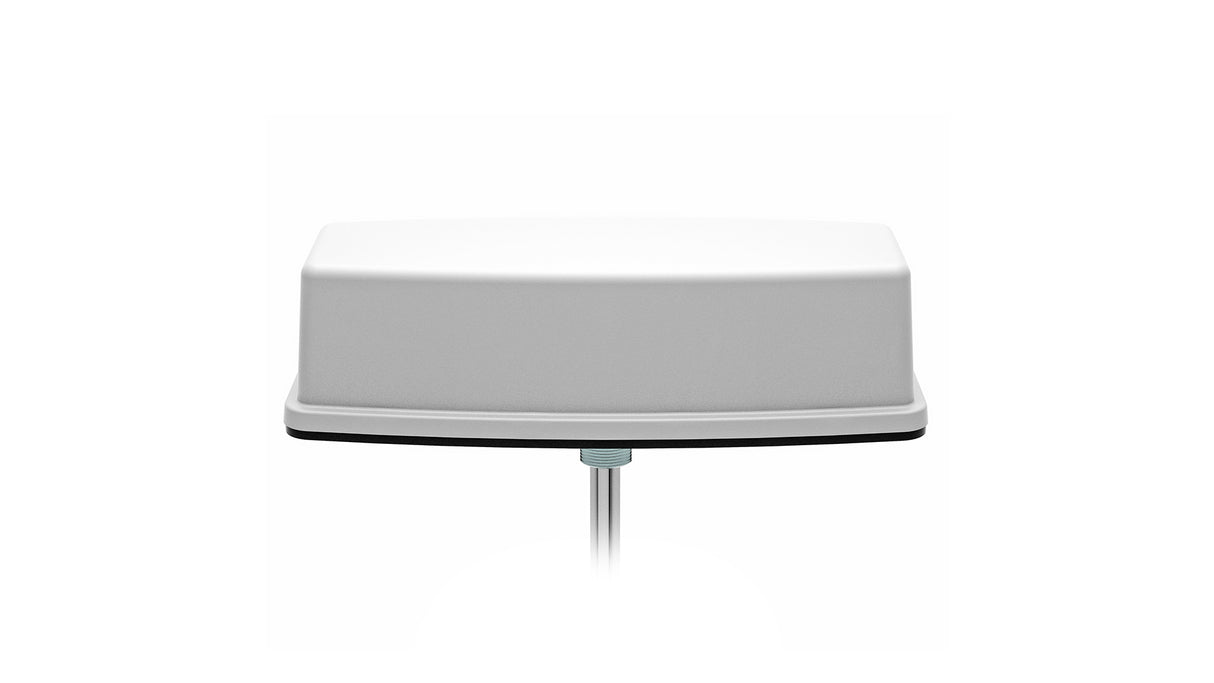

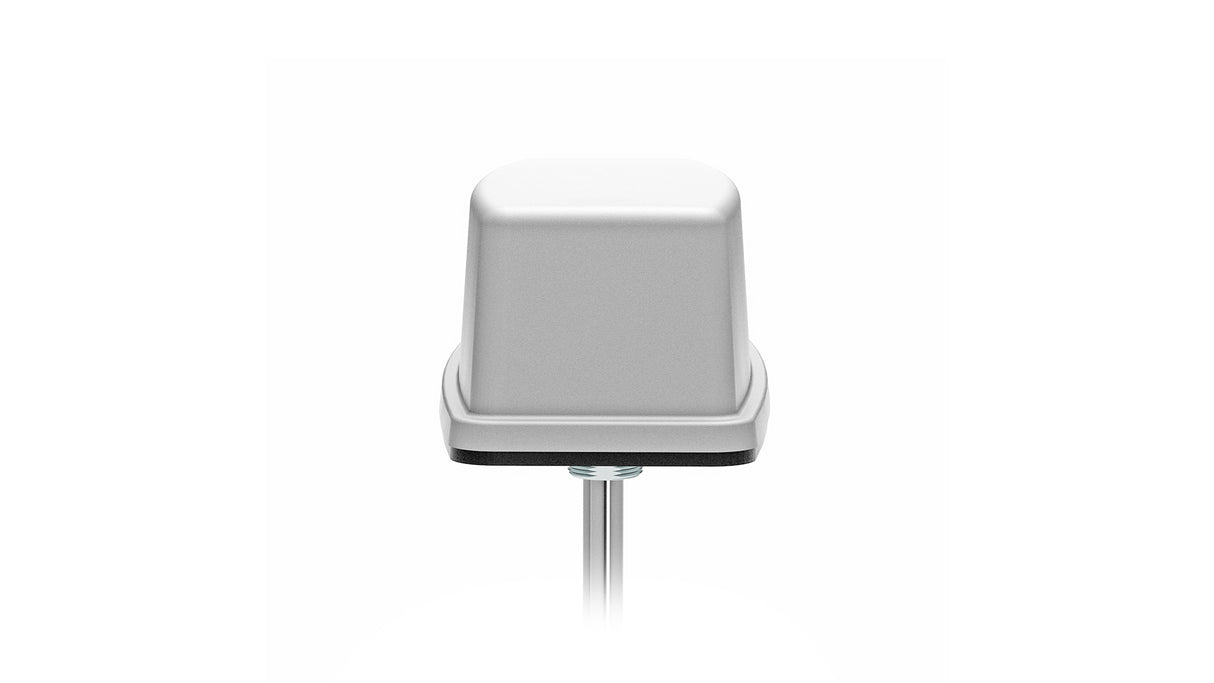

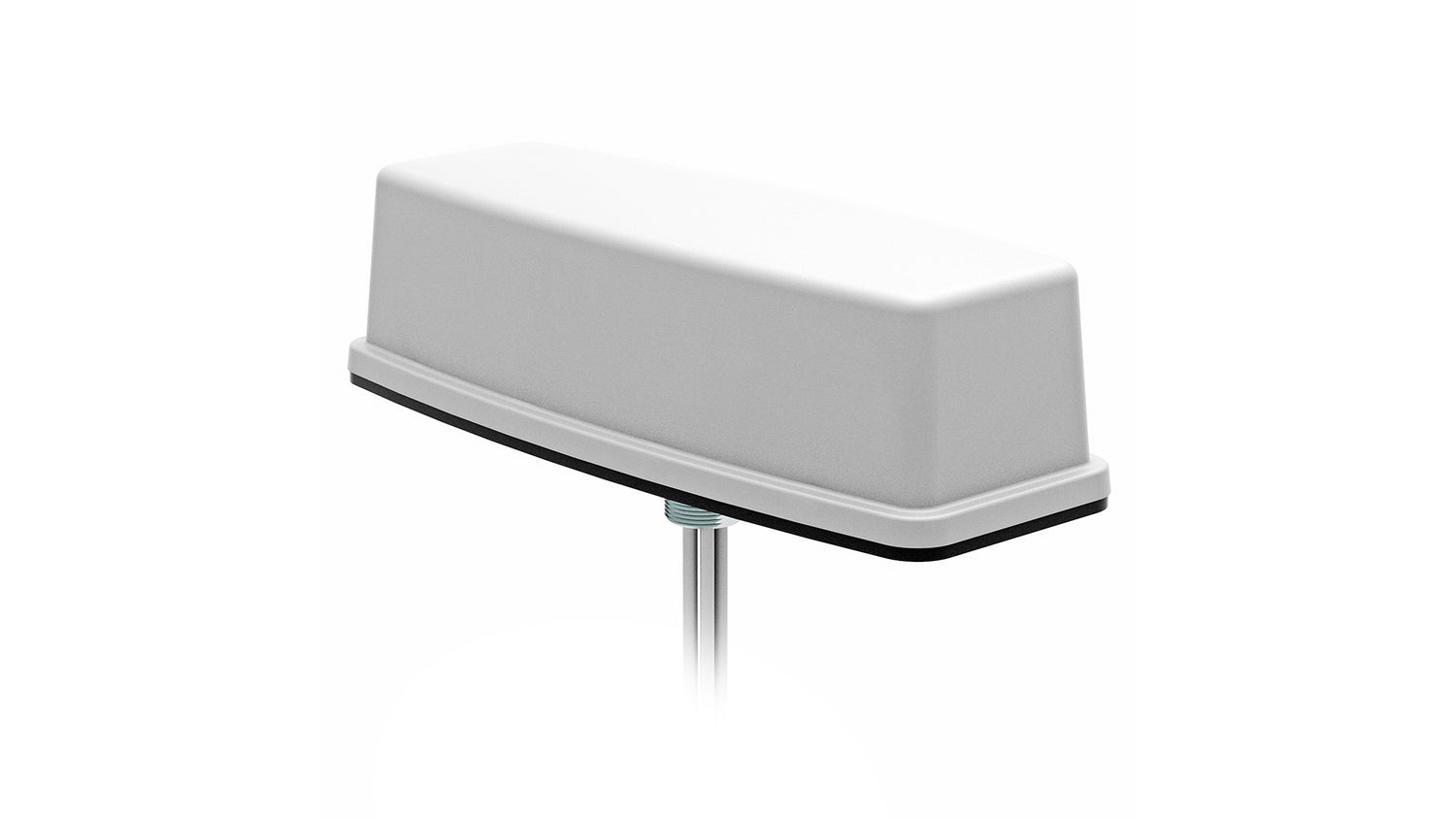

Diese ultra-breitbandige 5-in-1-Antenne bietet leistungsstarke Konnektivität für anspruchsvolle Anwendungen und unterstützt 5G-Mobilfunk, W-lan 6E/7, ISM und Iridium-Satellitennetzwerke. Ihr robustes Design mit Schraubbefestigung und IP67/IP69-Schutz macht sie ideal für den Automobilbereich, den öffentlichen Sicherheitsdienst, industrielle IoT-Anwendungen und mission-kritische Umgebungen. Die Antenne ist unabhängig von der Grundfläche und verfügt über eine Anti-Rotations-Befestigung für eine sichere Installation. Ihre Multi-Technologie-MIMO-Konfiguration gewährleistet eine zuverlässige, schnelle Datenübertragung über mehrere drahtlose Standards hinweg.
Konnektivitäten
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2× 2,4-5,0-6,0 GHz MIMO/W-lan 6E/W-lan 7/LPWA/BT/ZigBee/RFID/ISM
IRIDIUM
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antenne-Technologien: MIMO
Mobilfunktechnologien: 5G
Position: Außen
LPWAN- & IoT-Kommunikation: LPWA, NB-IoT, SigFox, LoRa
Befestigung: Schraubbefestigung
Kurzstrecken-Drahtlosstandards: W-lan, Bluetooth, ZigBee, ISM
Typ: Kombination
Abmessungen: 193 × 76,3 × 52,4 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925, 5925-7125
Rückflussdämpfung (dB): ~-5,1, ~-8,6, ~-10,7, ~-12,5, ~-10,6
VSWR: ~3,6:1, ~2,7:1, ~1,9:1, ~1,6:1, ~1,9:1
Effizienz (%): ~33,8, ~41,2, ~53,7, ~43,2, ~34,1
Spitzenverstärkung (dBi): ~0,5, ~3,6, ~4,4, ~4,7, ~6,2
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 10
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925, 5925-7125
Rückflussdämpfung (dB): ~-5,2, ~-8,6, ~-10,7, ~-12,5, ~-10,6
VSWR: ~3,5:1, ~2,7:1, ~1,9:1, ~1,6:1, ~1,9:1
Effizienz (%): ~33,6, ~48,0, ~51,5, ~49,3, ~39,4
Spitzenverstärkung (dBi): ~0,0, ~4,9, ~4,4, ~5,0, ~4,9
Impedanz (Ohm): 50
Polarisation: Linear
Strahlungsmuster: Rundstrahlend
Max. Eingangsleistung (W): 10
Konnektivität 3 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,3:1, ~1,8:1, ~1,8:1
Effizienz (%): ~49,9, ~32,2, ~46,5
Spitzenverstärkung (dBi): ~4,7, ~3,9, ~5,2
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 10
Konnektivität 4 - 2,4 / 5,0 / 6,0 GHz Tri-Band W-lan 6E / W-lan 7
Standards: W-lan, BT, ZigBee, ISM, SigFox, LoRa
Frequenz (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1,5:1, ~1,3:1, ~1,8:1
Effizienz (%): ~49,2, ~48,2, ~32,1
Spitzenverstärkung (dBi): ~4,2, ~6,4, ~5,3
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 10
Konnektivität 5 - IRIDIUM
Standards: IRIDIUM
Frequenz (MHz): 1616-1627
Spitzenverstärkung (dBic): ~3,2
Effizienz (%): ~49,6
Strahlungsmuster: Hemisphärisch
Polarisation: RHCP
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J6C64Ba","title":"Bullion 5-in-1 2× 5GNR MIMO, 2× W-lan 6E/W-lan 7 MIMO und Iridium Schraubbefestigung Antenne","mountingType":"Schraubbefestigung","ipRating":"IP67/IP69","dimensions_mm":"193 × 76.3 × 52.4","elements":[{"elementID":"Cellular 1 (MIMO)","type":"Cellular","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-5.1","vswr":"~3.6:1","efficiency_percent":"~33.8","peakGain_dbi":"~0.5","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-8.6","vswr":"~2.7:1","efficiency_percent":"~41.2","peakGain_dbi":"~3.6","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-10.7","vswr":"~1.9:1","efficiency_percent":"~53.7","peakGain_dbi":"~4.4","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-12.5","vswr":"~1.6:1","efficiency_percent":"~43.2","peakGain_dbi":"~4.7","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":"~-10.6","vswr":"~1.9:1","efficiency_percent":"~34.1","peakGain_dbi":"~6.2","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":10},{"elementID":"Cellular 2 (MIMO)","type":"Cellular","technologies":["5GNR","4G LTE","FirstNet","CBRS","LPWA","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":"~-5.2","vswr":"~3.5:1","efficiency_percent":"~33.6","peakGain_dbi":"~0.0","averageGain_db":null},{"range_mhz":"1427-2690","returnLoss_db":"~-8.6","vswr":"~2.7:1","efficiency_percent":"~48.0","peakGain_dbi":"~4.9","averageGain_db":null},{"range_mhz":"3300-5000","returnLoss_db":"~-10.7","vswr":"~1.9:1","efficiency_percent":"~51.5","peakGain_dbi":"~4.4","averageGain_db":null},{"range_mhz":"5150-5925","returnLoss_db":"~-12.5","vswr":"~1.6:1","efficiency_percent":"~49.3","peakGain_dbi":"~5.0","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":"~-10.6","vswr":"~1.9:1","efficiency_percent":"~39.4","peakGain_dbi":"~4.9","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":10},{"elementID":"Wi-Fi 1 (MIMO)","type":"Wi-Fi","technologies":["W-lan 6E","W-lan 7","Bluetooth","ZigBee","ISM","SigFox","LoRa"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":null,"vswr":"~1.3:1","efficiency_percent":"~49.9","peakGain_dbi":"~4.7","averageGain_db":null},{"range_mhz":"4920-5925","returnLoss_db":null,"vswr":"~1.8:1","efficiency_percent":"~32.2","peakGain_dbi":"~3.9","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":null,"vswr":"~1.8:1","efficiency_percent":"~46.5","peakGain_dbi":"~5.2","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":10},{"elementID":"Wi-Fi 2 (MIMO)","type":"Wi-Fi","technologies":["W-lan 6E","W-lan 7","Bluetooth","ZigBee","ISM","SigFox","LoRa"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":null,"vswr":"~1.5:1","efficiency_percent":"~49.2","peakGain_dbi":"~4.2","averageGain_db":null},{"range_mhz":"4920-5925","returnLoss_db":null,"vswr":"~1.3:1","efficiency_percent":"~48.2","peakGain_dbi":"~6.4","averageGain_db":null},{"range_mhz":"5925-7125","returnLoss_db":null,"vswr":"~1.8:1","efficiency_percent":"~32.1","peakGain_dbi":"~5.3","averageGain_db":null}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":10},{"elementID":"Iridium","type":"Iridium","technologies":["Iridium"],"frequencies":[{"range_mhz":"1616-1627","returnLoss_db":null,"vswr":null,"efficiency_percent":"~49.6","peakGain_dbi":"~3.2","averageGain_db":null}],"polarization":"RHCP","radiationPattern":"Halbkugelförmig","impedance_ohms":50,"maxInputPower_w":null}],"connectors":[{"elementIDRef":"Cellular 1","type":"SMA-Male","cableType":"RG174","cableLength_mm":3000},{"elementIDRef":"Cellular 2","type":"SMA-Male","cableType":"RG174","cableLength_mm":3000},{"elementIDRef":"Wi-Fi 1","type":"SMA-Male","cableType":"RG174","cableLength_mm":3000},{"elementIDRef":"Wi-Fi 2","type":"SMA-Male","cableType":"RG174","cableLength_mm":3000},{"elementIDRef":"Iridium","type":"SMA-Male","cableType":"RG174","cableLength_mm":3000}]}
