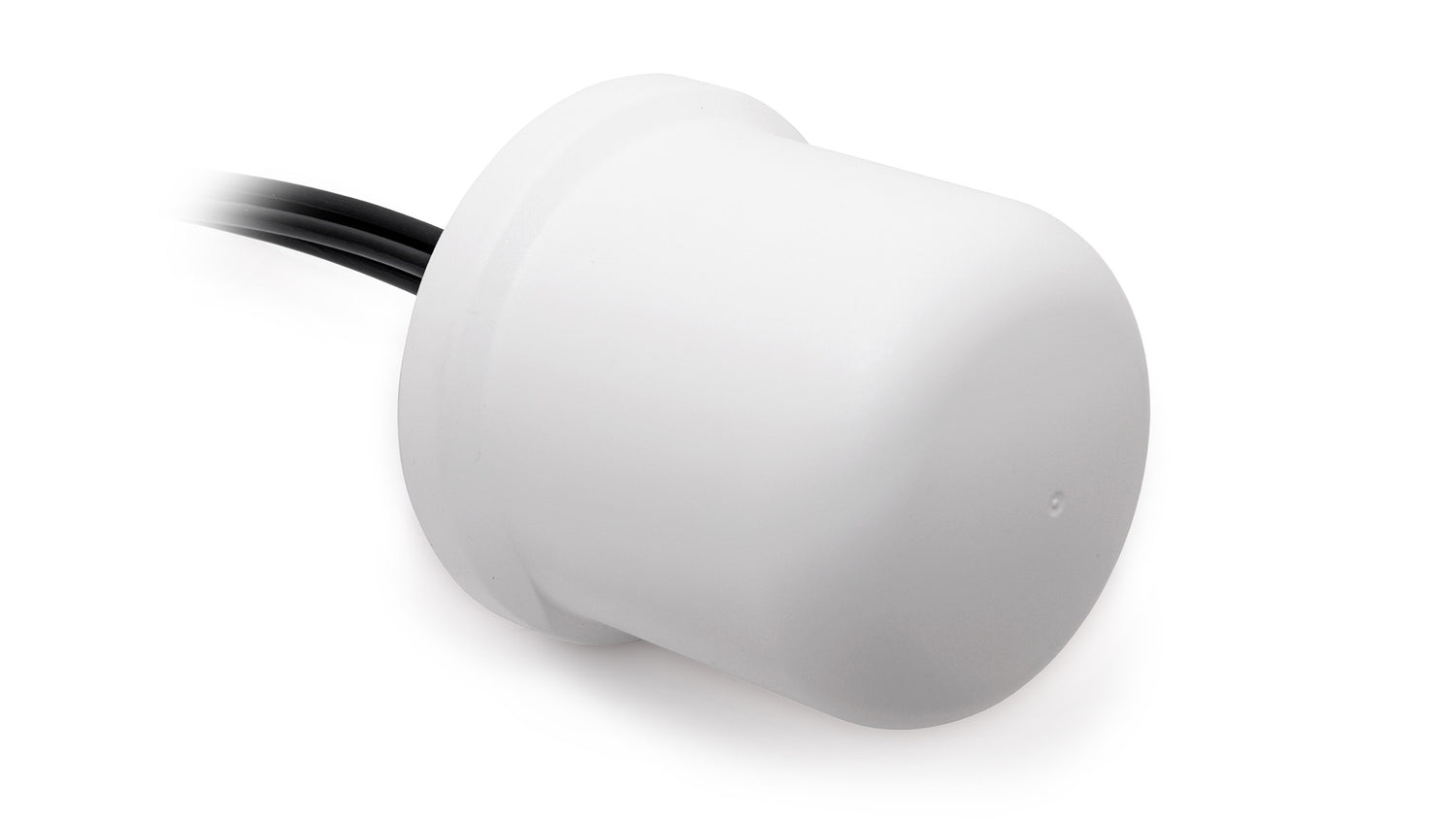

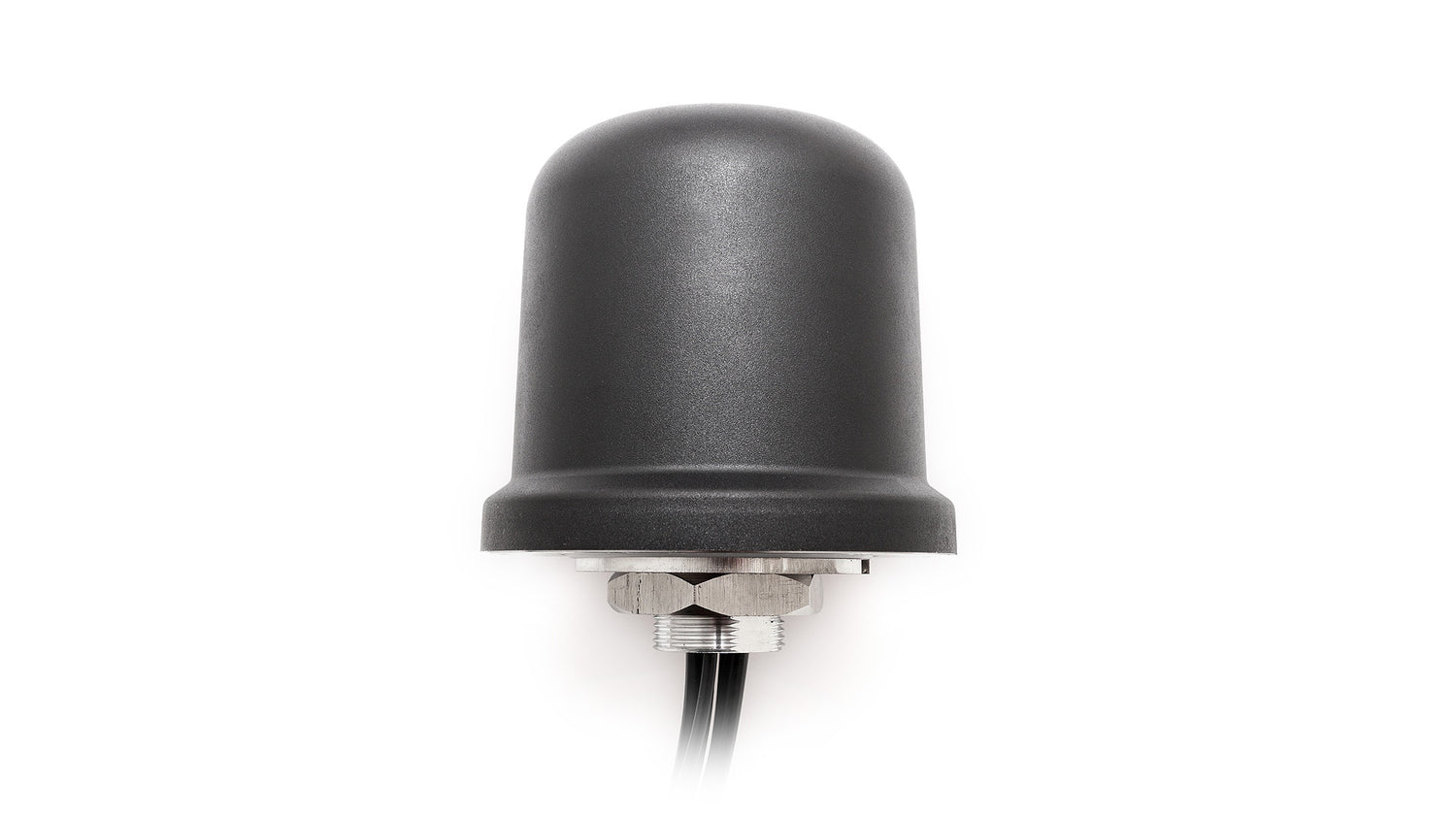

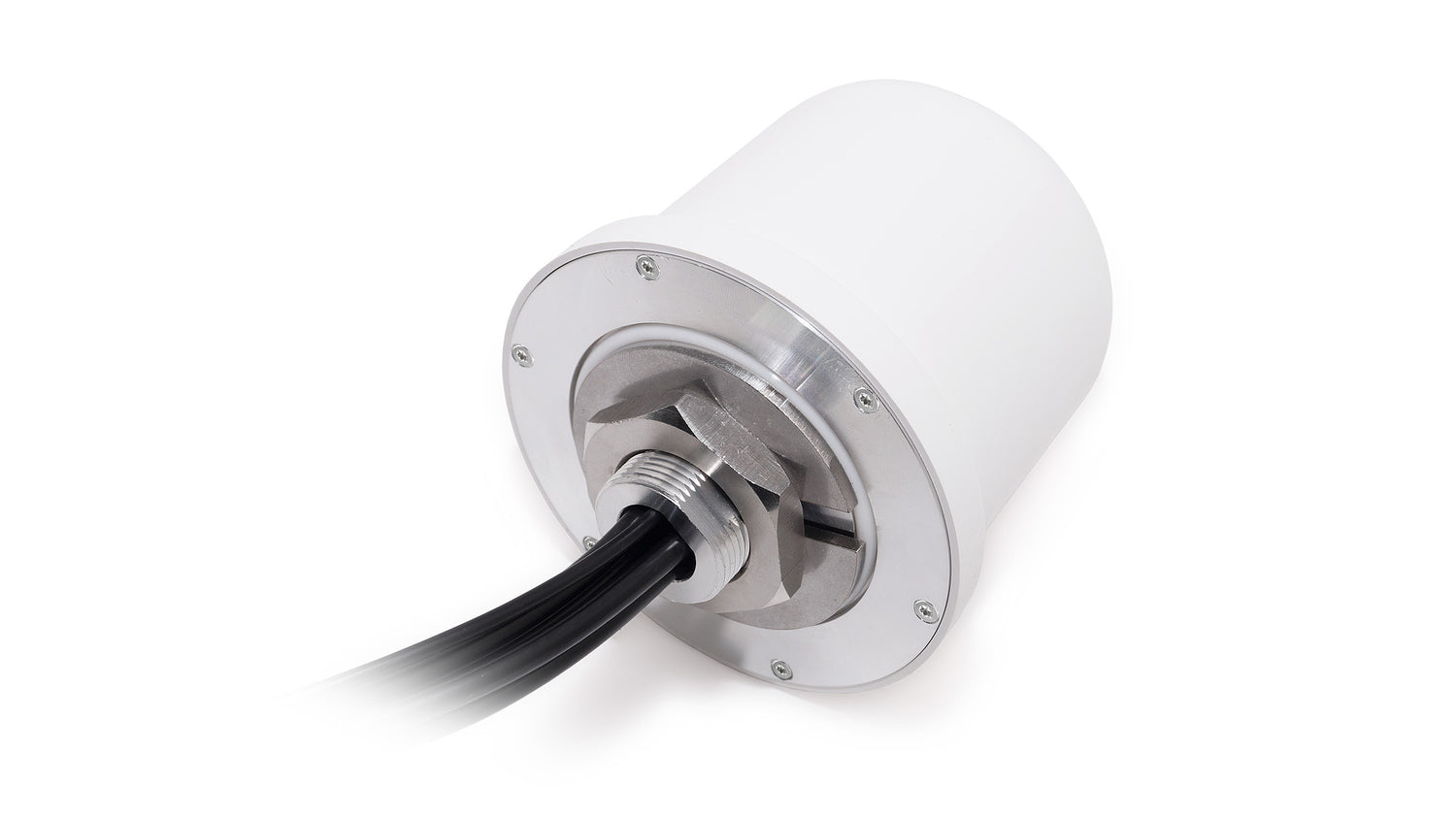

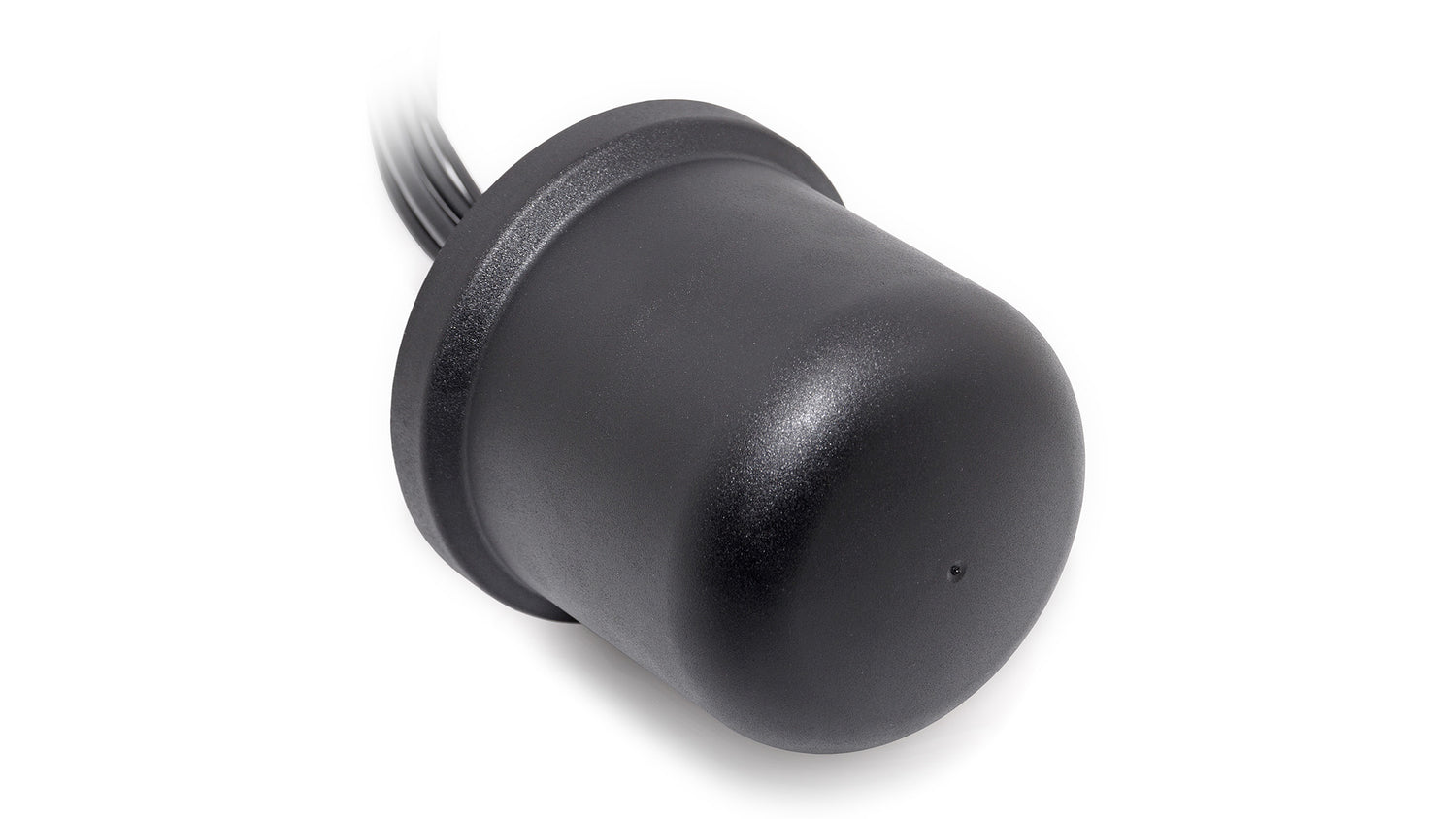

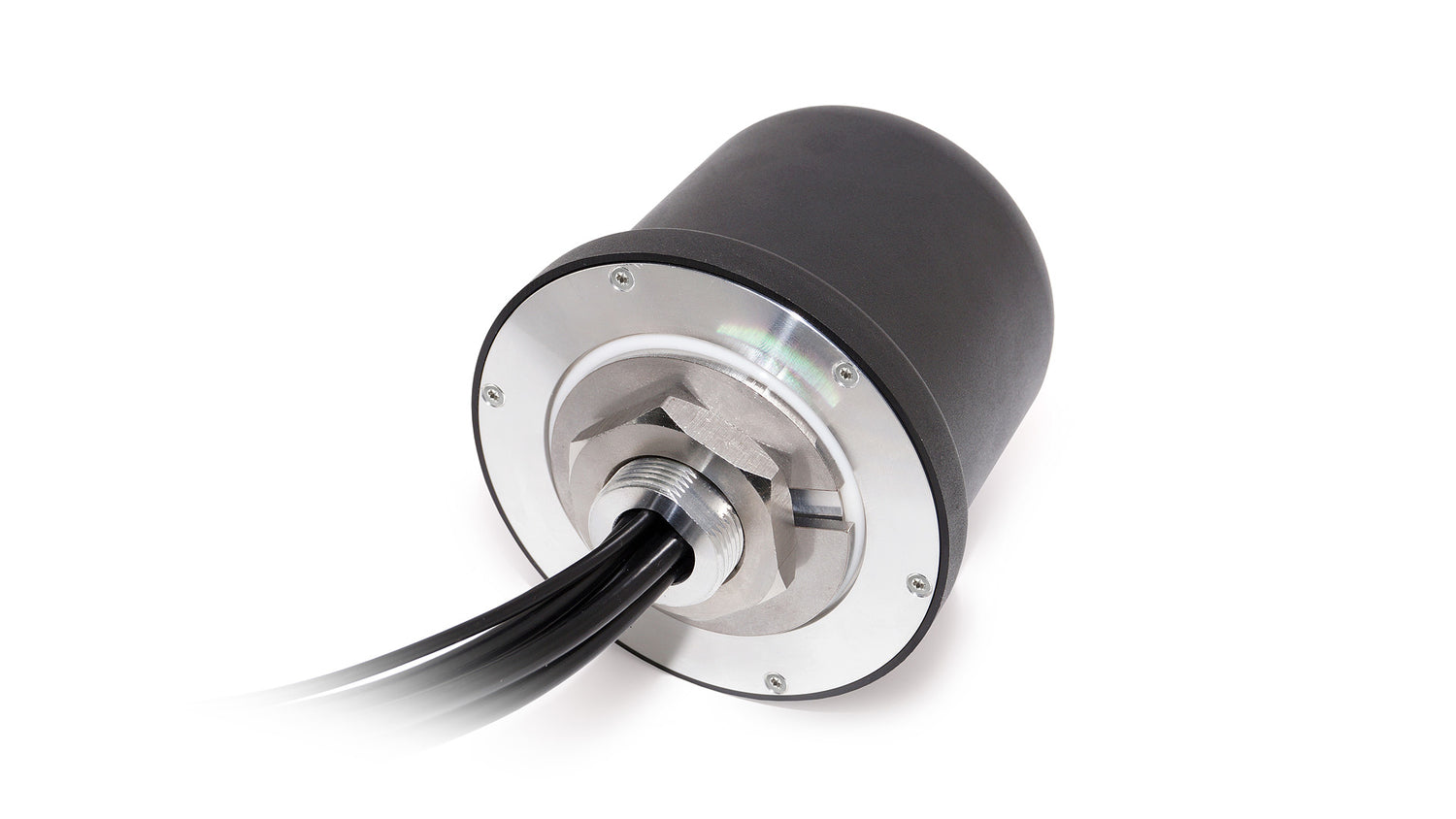

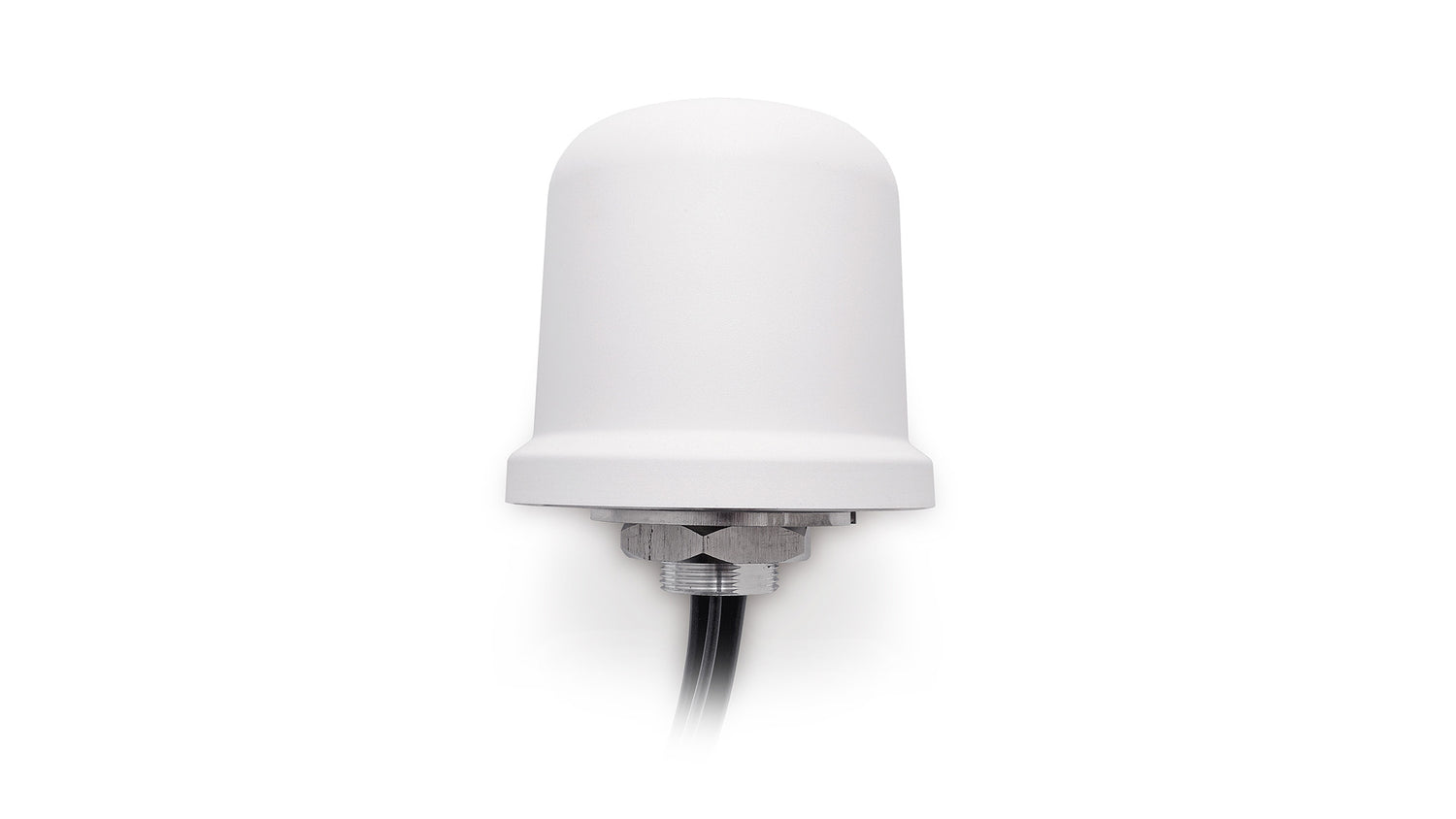

Diese kompakte, robuste Antenne bietet leistungsstarke 4× W-lan MIMO Konnektivität für 2,4/5,0 GHz ISM-Bänder und ist somit ideal für anspruchsvolle industrielle und kommerzielle Anwendungen. Ihr fortschrittliches MIMO-Design gewährleistet niedrige Latenzzeiten und hohe Datenübertragungsraten, während die bodenplattenunabhängige Konstruktion und die Anti-Dreh-Schraubbefestigung eine zuverlässige Installation sicherstellen. Das robuste Gehäuse ist nach IP67 und IP69K zertifiziert und bietet maximalen Schutz gegen Staub, Wasser und Vandalismus. Es wurde auf Vibrations-, Stoß- und Feuerbeständigkeit getestet. Anpassbare Kabel und Steckverbinder ermöglichen eine flexible Integration in eine Vielzahl von Systemen und Umgebungen.
Konnektivitäten
4× 2,4-5,0 GHz MIMO/W-lan/LPWA/BT/ZigBee/RFID/ISM
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: MIMO
Position: Außen
Befestigung: Schraubbefestigung
Typ: Kombination
Abmessungen: Ø 96 x H 90 mm
Konnektivität 1 - 2,4/5,0 GHz ISM
Standards: W-lan, Bluetooth, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1,9:1, ~1,6:1
Effizienz (%): ~58, ~64
Spitzenverstärkung (dBi): ~5,6, ~5,5
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 2 - 2,4/5,0 GHz ISM
Standards: W-lan, Bluetooth, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1,6:1, ~1,5:1
Effizienz (%): ~51, ~55
Spitzenverstärkung (dBi): ~3,9, ~4,1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Konnektivität 3 - 2,4/5,0 GHz ISM
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Standards: W-lan, Bluetooth, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~2,1:1, ~1,6:1
Effizienz (%): ~57, ~59
Spitzenverstärkung (dBi): ~5,5, ~4,4
Konnektivität 4 - 2,4/5,0 GHz ISM
Effizienz (%): ~52, ~53
Spitzenverstärkung (dBi): ~3,4, ~3,1
Impedanz (Ohm): 50
Polarisation: Linear
Max. Eingangsleistung (W): 25
Standards: W-lan, Bluetooth, ZigBee, ISM
Frequenz: 2410-2490, 4920-5925 MHz
VSWR: ~1,8:1, ~1,5:1
Datenblatt PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7002Bc","title":"W-lan ISM MIMO Hochgewinnantenne","mountingType":"Schraubbefestigung","ipRating":"IP67/IP69/IK09","dimensions_mm":"Ø 96 x H 90","elements":[{"elementID":"W-lan 1 (MIMO)","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-10.4","vswr":"~1.9:1","efficiency_percent":"~58","peakGain_dbi":"~5.6","averageGain_db":"~-2.3"},{"range_mhz":"4920-5925","returnLoss_db":"~-13.6","vswr":"~1.6:1","efficiency_percent":"~64","peakGain_dbi":"~5.5","averageGain_db":"~-1.9"}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"W-lan 2 (MIMO)","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-13.2","vswr":"~1.6:1","efficiency_percent":"~51","peakGain_dbi":"~3.9","averageGain_db":"~-2.9"},{"range_mhz":"4920-5925","returnLoss_db":"~-15.2","vswr":"~1.5:1","efficiency_percent":"~55","peakGain_dbi":"~4.1","averageGain_db":"~-2.5"}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"W-lan 3 (MIMO)","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-9.0","vswr":"~2.1:1","efficiency_percent":"~57","peakGain_dbi":"~5.5","averageGain_db":"~-2.4"},{"range_mhz":"4920-5925","returnLoss_db":"~-13.6","vswr":"~1.6:1","efficiency_percent":"~59","peakGain_dbi":"~4.4","averageGain_db":"~-2.3"}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"W-lan 4 (MIMO)","type":"W-lan","technologies":["W-lan","Bluetooth","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":"~-11.1","vswr":"~1.8:1","efficiency_percent":"~52","peakGain_dbi":"~3.4","averageGain_db":"~-2.8"},{"range_mhz":"4920-5925","returnLoss_db":"~-15.7","vswr":"~1.5:1","efficiency_percent":"~53","peakGain_dbi":"~3.1","averageGain_db":"~-2.7"}],"polarization":"Linear","radiationPattern":"Rundstrahlend","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"W-lan 1","type":"SMA-Male","cableType":"LMR195","cableLength_mm":3000},{"elementIDRef":"W-lan 2","type":"SMA-Male","cableType":"LMR195","cableLength_mm":3000},{"elementIDRef":"W-lan 3","type":"SMA-Male","cableType":"LMR195","cableLength_mm":3000},{"elementIDRef":"W-lan 4","type":"SMA-Male","cableType":"LMR195","cableLength_mm":3000}]}
